FIGURES & TABLES

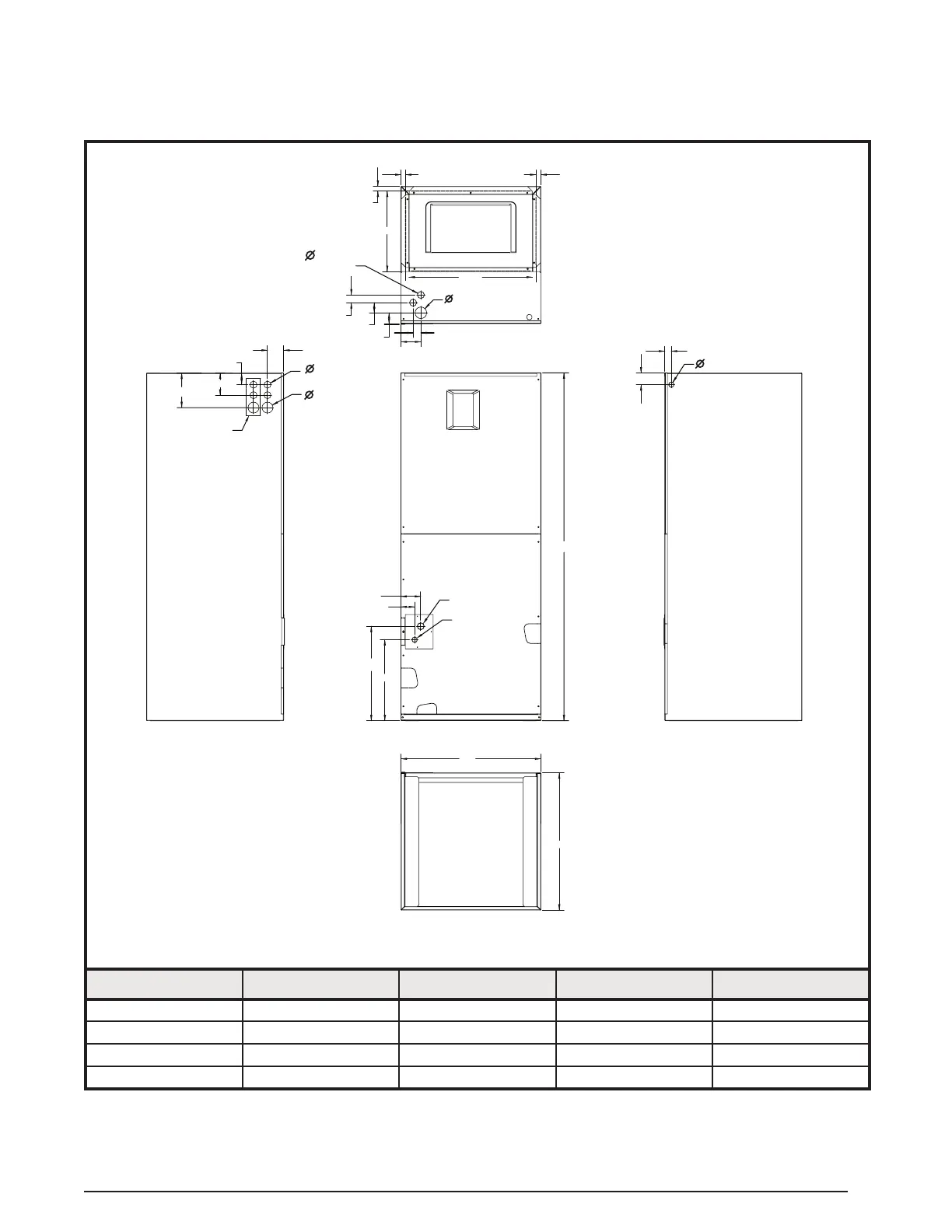

Figure 11. B6 Series Physical Dimensions
3/4”
3/4”
3/4”
13”
1 7/8" K.O.
11/8” K.O.
(typ.)
11/4”
15/8”
17/8”
11/4”
3 1/4”
2 5/8”
11/8” K.O.
(typ.)
13/4” K.O.
(typ.)
1 7/8”
3 5/8”
5 5/8”
DETAIL “D”
3 1/4”
2 1/4”
15 1/4”
13”
SUCTION
LIQUID
“W”
1 1/8”
1 7/8”
7/8" K.O.
“H”
22"
“A”
CABINET SIZE H W A DETAIL D
A 43-5/16 14-3/16 12-3/4 No
B 43-5/16 19-11/16 18-1/4 No
Tall B 49-5/16 19-11/16 18-1/4 No
C 55-15/16 22-7/16 21 Yes
