Norma Icon-5 - Step 9: Check Injectors; Injector inspection; Microinjector replacement

18
TDMG0002 Icon-5 Maintenance Guide – Version: 02 – Release date: 2020-04-27

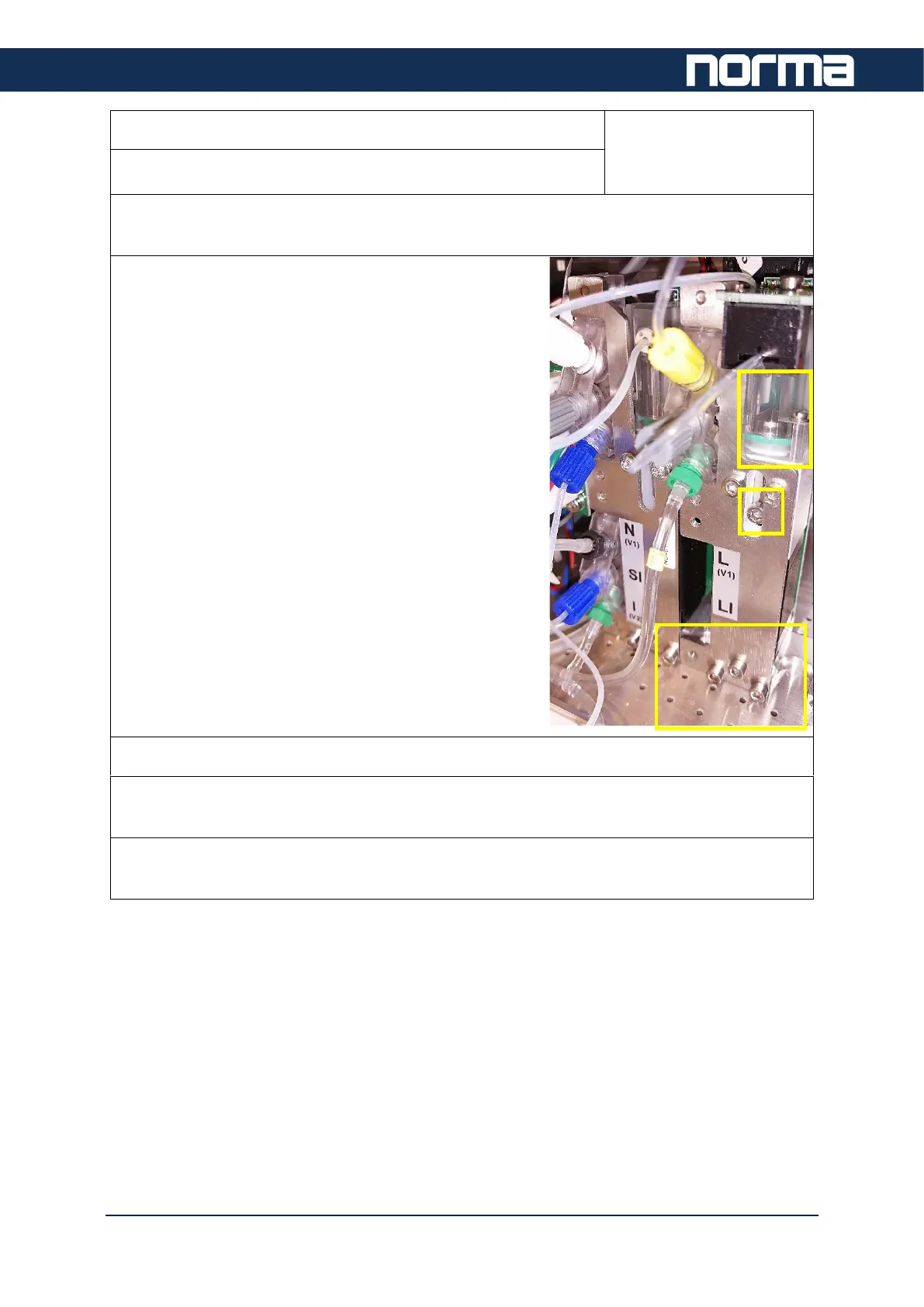

Step 9: Check Injectors
Frequency:
1 year or 10,000
samples
part#: N/A
There are two injector blocks equipped with 3 injectors each and one super micro injector
in the system.
Check the state of all injectors look for salt deposits
around their bottom fixing plate. In case there is any it
is maybe a sign of a slight leakage of that injector or of
the related valves.
Check the state of the injectors piston if there is any visible crack around it.
In case of any issue with the microinjector replace the complete part. The part# is
HAM151A.
In case of injector replacement refer to the service manual as new injector will need to get
addressed.
