2.2.2 C-Band LNB Installation

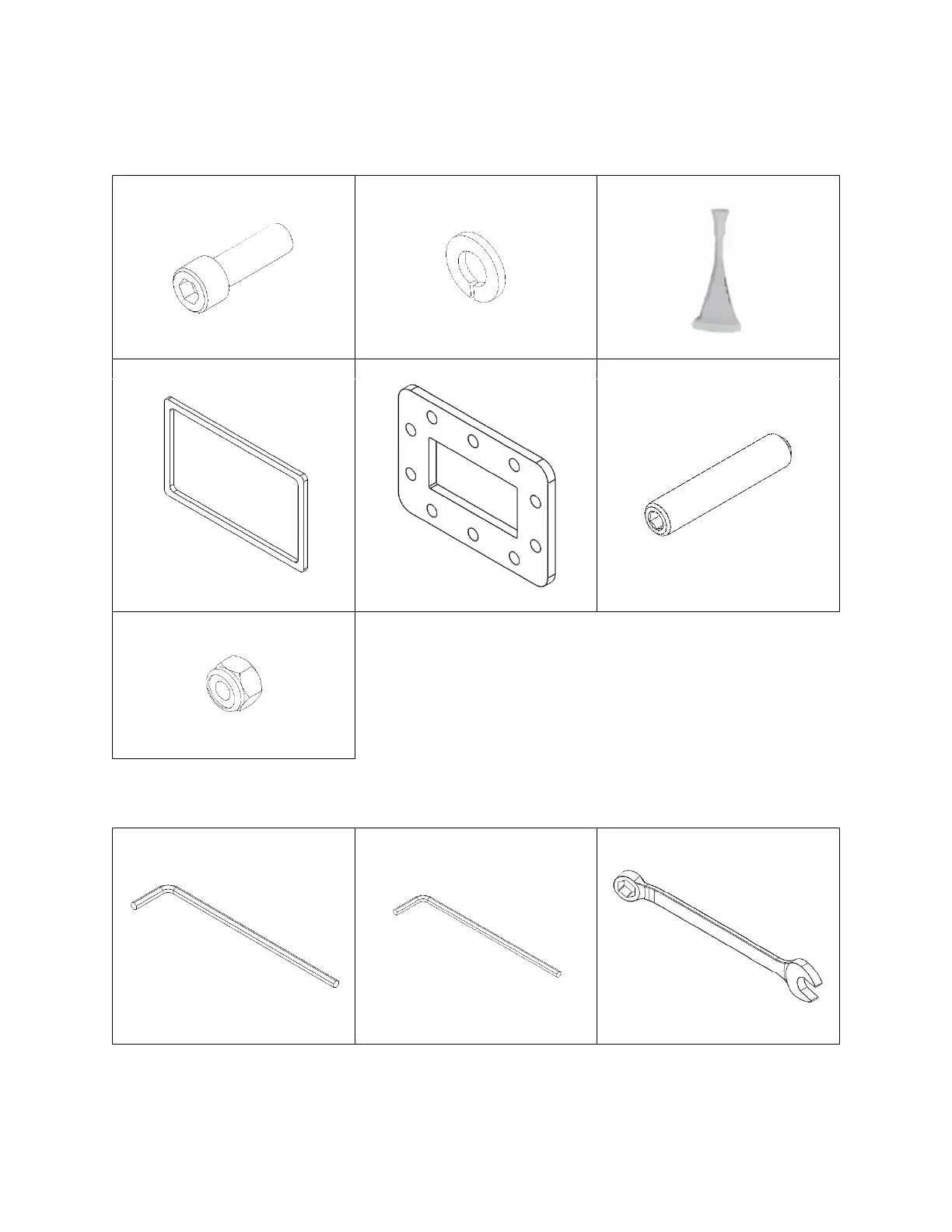

The following components are included with the LNB mounting kit.
Item 1 (Socket Cap Screw)
Item 2 (Washer)
Item 3 (Threadlocker)
14x
14x
1x
Item 4 (Gasket)
Item 5 (Adaptor Plate)
Item 6 (Set Screw)
2x
2x
6x
Item 7 (Nut)
6x
The following tools are required (not included with the mounting kit).
Tool 1 (Hex Key)
Tool 2 (Hex Key)
Tool 3 (Wrench)
3/16”
1/8”
7/16”
Note the interfaces shown below.
