Installation | 22

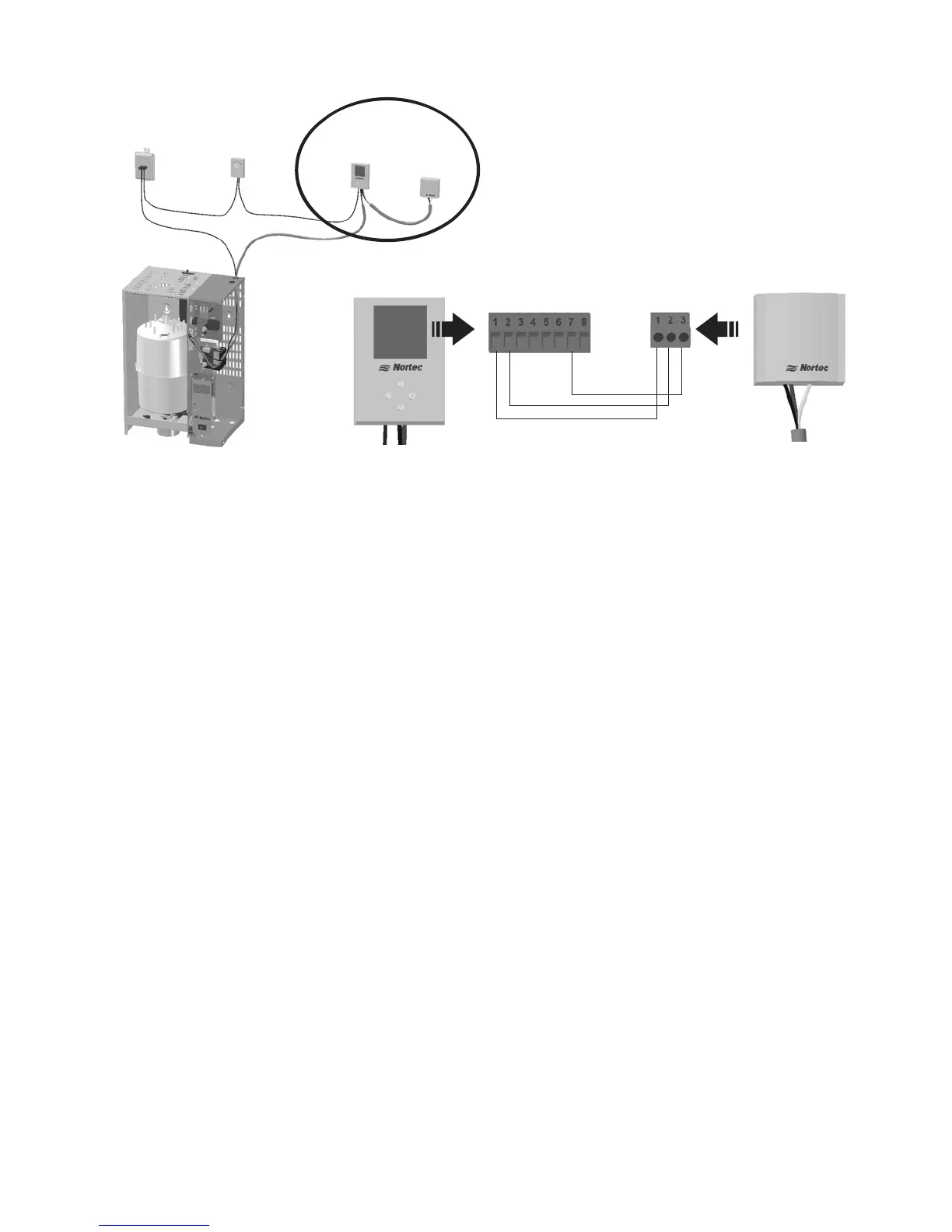

Figure 20: Duct Sensor Wiring
Air Proving
Switch
Duct High
Limit
Digital On/Off
Humidistat
Duct Sensor
1 - Ground
2 - 24 VAC
7 - Analog In
1 - Ground
2 - 24 VAC
3 - Analog Out
Wire remote sensor to digital display as shown below,
wire digital display to humidifier as shown above.
2520273 - Digital On/Off Duct Humidistat Package
