Nortec RH2+ - Page 17

Installation | 14

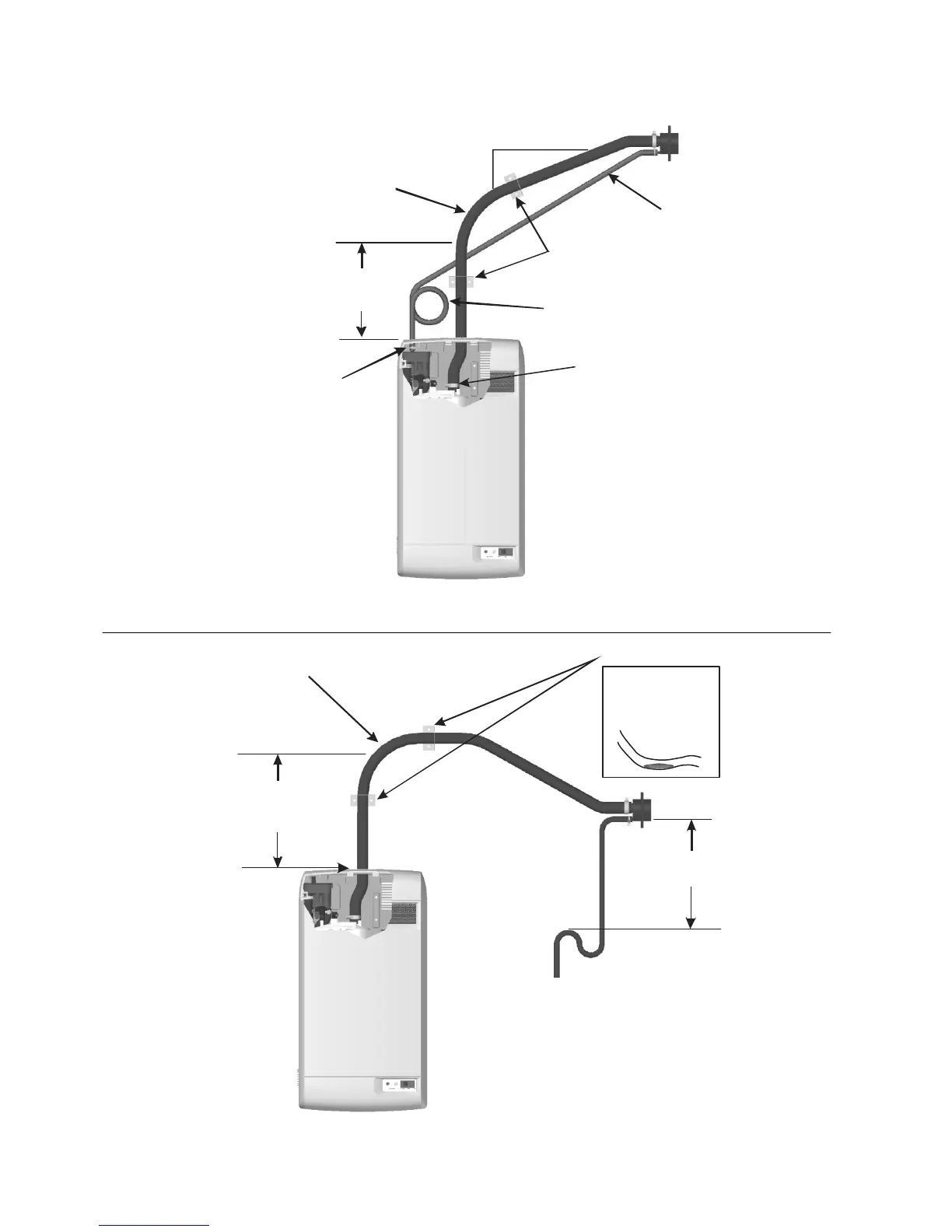

Figure 11: Steam Distributor Above Humidifier (Hose)
Figure 12: Steam Distributor Below Humidifier (Hose)
Condensate
Trap
1 ft (30 cm)
min. Before
any bend
Min 12 in.
(30 cm)
radius
Hose will soften
over time
proper support
Is necessary
Support Brackets
1 ft (30 cm)
min.
To Drain
1 ft (30 cm)
min. before
any bend
12 in.(30 cm)
min. Radius
Condensate
Trap
Condensate
line
Connect Steam
Hose to CylinderConnect Condensate
Hose to Fill Cup
2 in. (5 cm)
min.
1 ft (30 cm)
Support
Brackets
