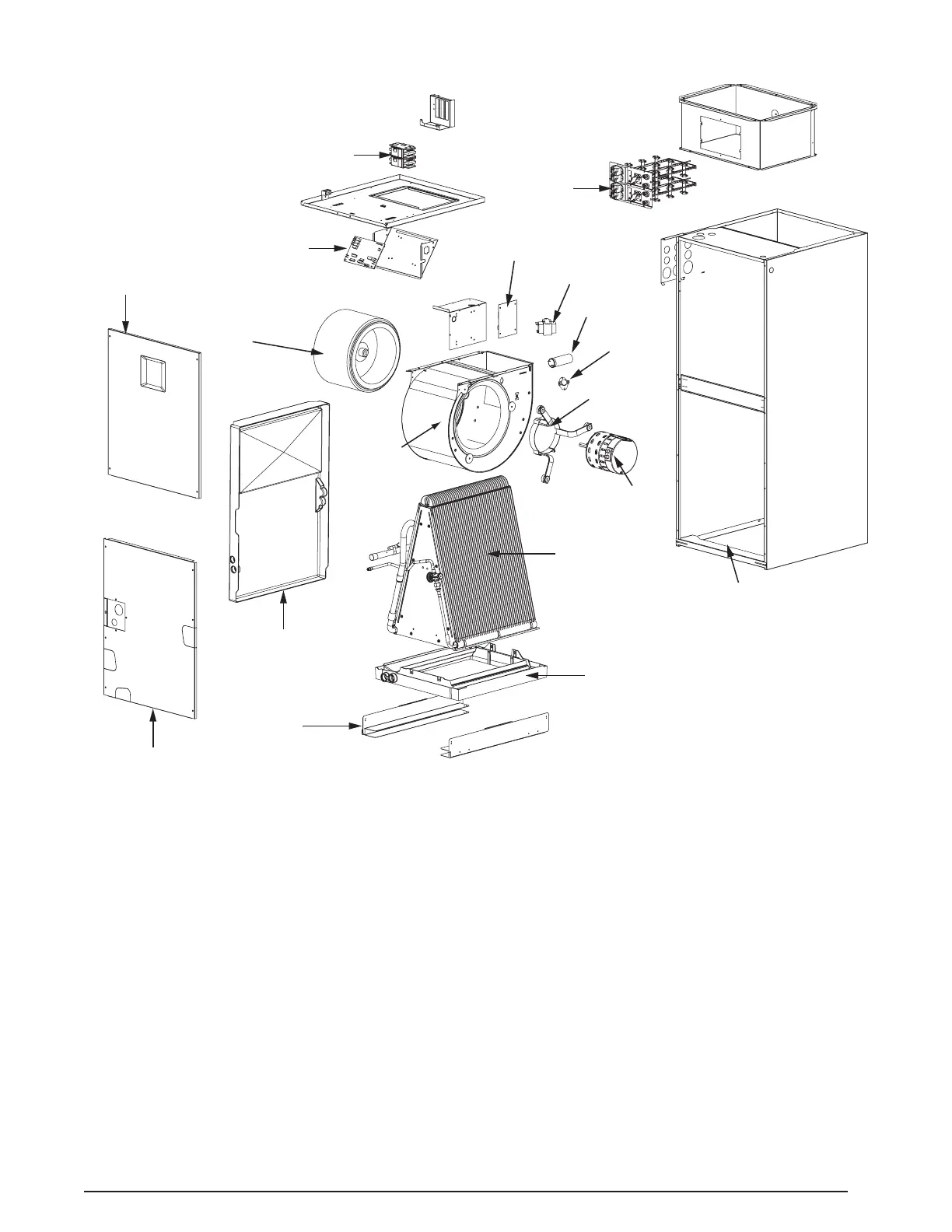

Figure 9. Air Handler Components
Horizontal
Drain Pan
Vertical
Drain Pan
Coil
Assembly
Motor
Mount Kit
Blower
Motor
Transformer
Capacitor
Circuit
Breaker (60A)
Heating Element
Assembly
Filter
Tracks
Blower
Wheel
Blower
Housing
Motor Control
Board
Filter
Door
Upper Door
Assembly
Lower Door
Assembly
Control
Board
Blower
Limit
