Nortek T4BE-018 Series - Page 13

13
200
225
250
275
300
325
350
375
400
425
450
475
500
525
550
70 75 80 85 90 95 100 105 110 115120 125 130
Liquid Temperature (F)
Liquid Pressure (psig)

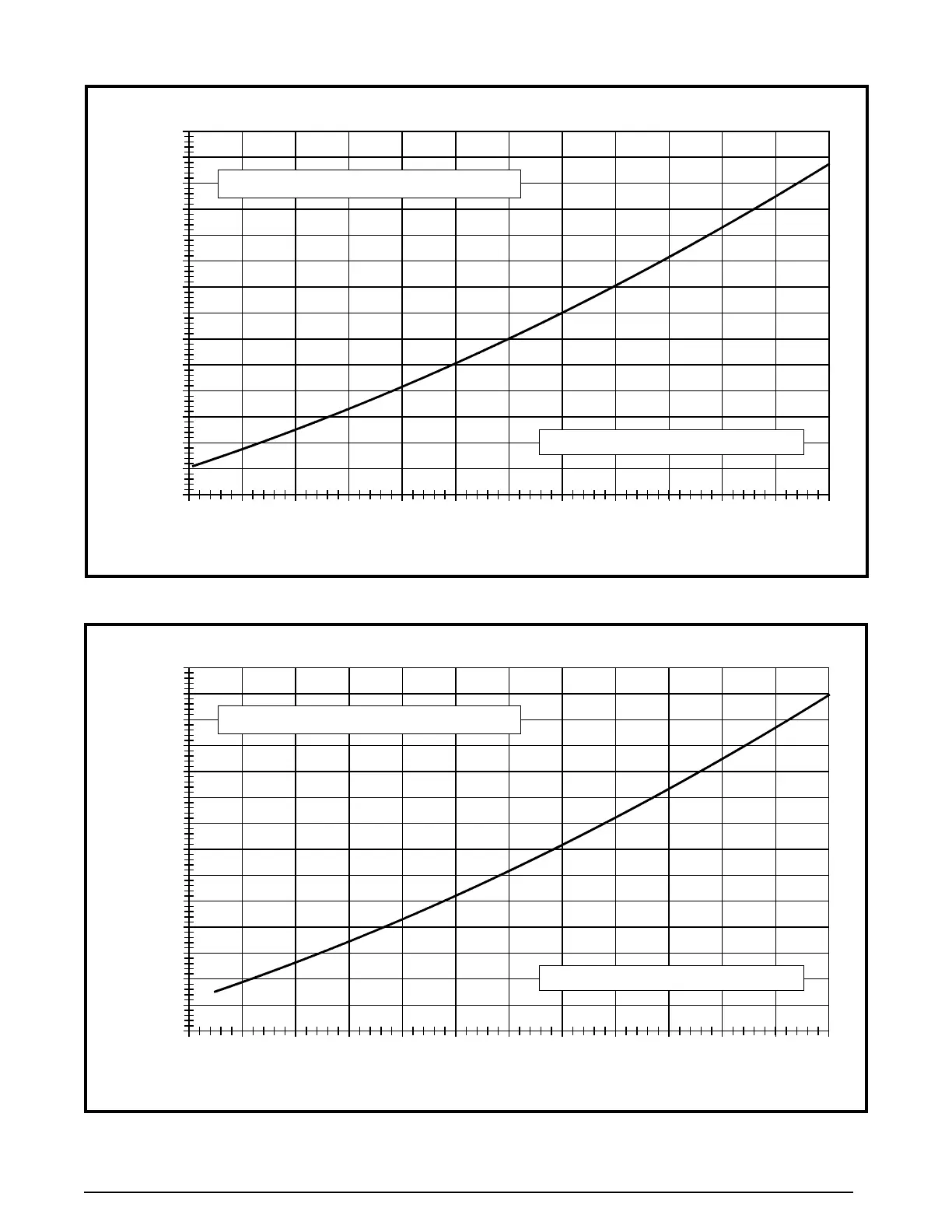

T4BE-048K Charging Chart - Cooling
Remove refrigerant when above curve
Add refrigerant when below curve

200
225
250
275
300
325
350
375
400
425
450
475
500
525
550
70 75 80 85 90 95 100 105 110 115120 125 130
Liquid Temperature (F)
Liquid Pressure (psig)
T4BE-060K Charging Chart - Cooling
Remove refrigerant when above curve
Add refrigerant when below curve

