Nortel DMS-100 Series Quick Reference Guide

1
BMC II AMAT Quick Reference Guide
BMC II AMAT Figures
Figure 1

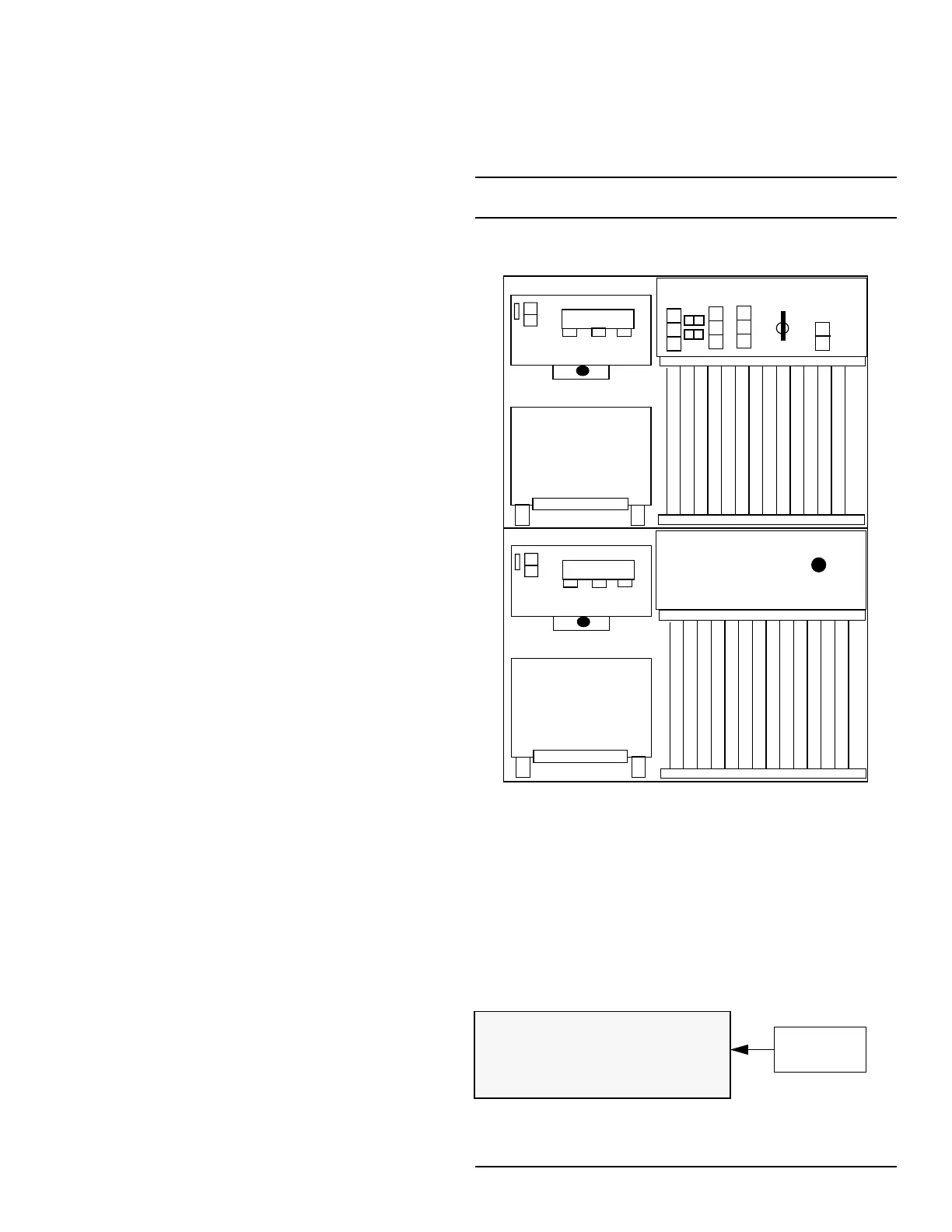

BMC II AMAT Front View
NT6M62xx Central Processor Unit (CPU) with DMA PCA
NT6M63xx EPROM PCA
NT6M64xx DRAM with Extended Memory PCA
NT6M65xx Error Control II PCA
NTM609xx Error Control Jumper PCA
NT6M60xx Quad Serial Input/Output (SIO) PCA
NT6M94xx 56Kbps Interface PCA (Turbo)
NT6M66xx Disk/SCSI Interface PCA
NT6M70xx Data Stream Interface (DSI) PCA (DMS-100 systems only)
NT6M89xx Tape Emulation Card (TEC) PCA (DMS-10 systems only)
NT6M90xx TEC PCA (DCO* systems only)
NT6M68xx Bus Terminator PCA
NT6M71xx Power Supply
NT6M72xx Disk Drive: AA - 72MB; BA - 140MB; CA - 30MB; DA - 380MB;
DD - 380MB Turbo; EA - 760MB; GA - 1GB; and HA - 2GB
NT6M72xx Disk Crossover PCA (Non-Turbo)
NT6M93xx SCSI Crossover PCA (Turbo) These packs are
NT6M84xx Power/Alarm Communication PCA located in the
NT6M48xx 56 Kbps Crossover PCA back of the BMC
NT6M56xx Fan Filter PCA
NT6M54xx 56 Kbps Mounting Panel
* DCO is a registered trademark of Siemens Stromberg-Carlson.
LT
A Processor
J8
J10J9
J8
J10J9
Chassis
GRD
NT6M62xx
NT6M63xx
NT6M64xx
NT6M66xx
NT6M70/89/90xx
NT6M68xx
NT6M60xx
NT6M60xx/NT6M94xx
NT6M65xx
NT6M70/89/90xx
NT6M62xx
NT6M63xx
NT6M64xx
NT6M66xx
NT6M70/89/90xx
NT6M68xx
NT6M60xx
NT6M60xx/NT6M94xx
NTM609xx
NT6M70/89/90xx
A Disk Drive
NT6M72xx
B Disk Drive
NT6M72xx
Power Supply
NT6M71xx
NT6M71xx
Power Supply
B Processor
AB
OP
