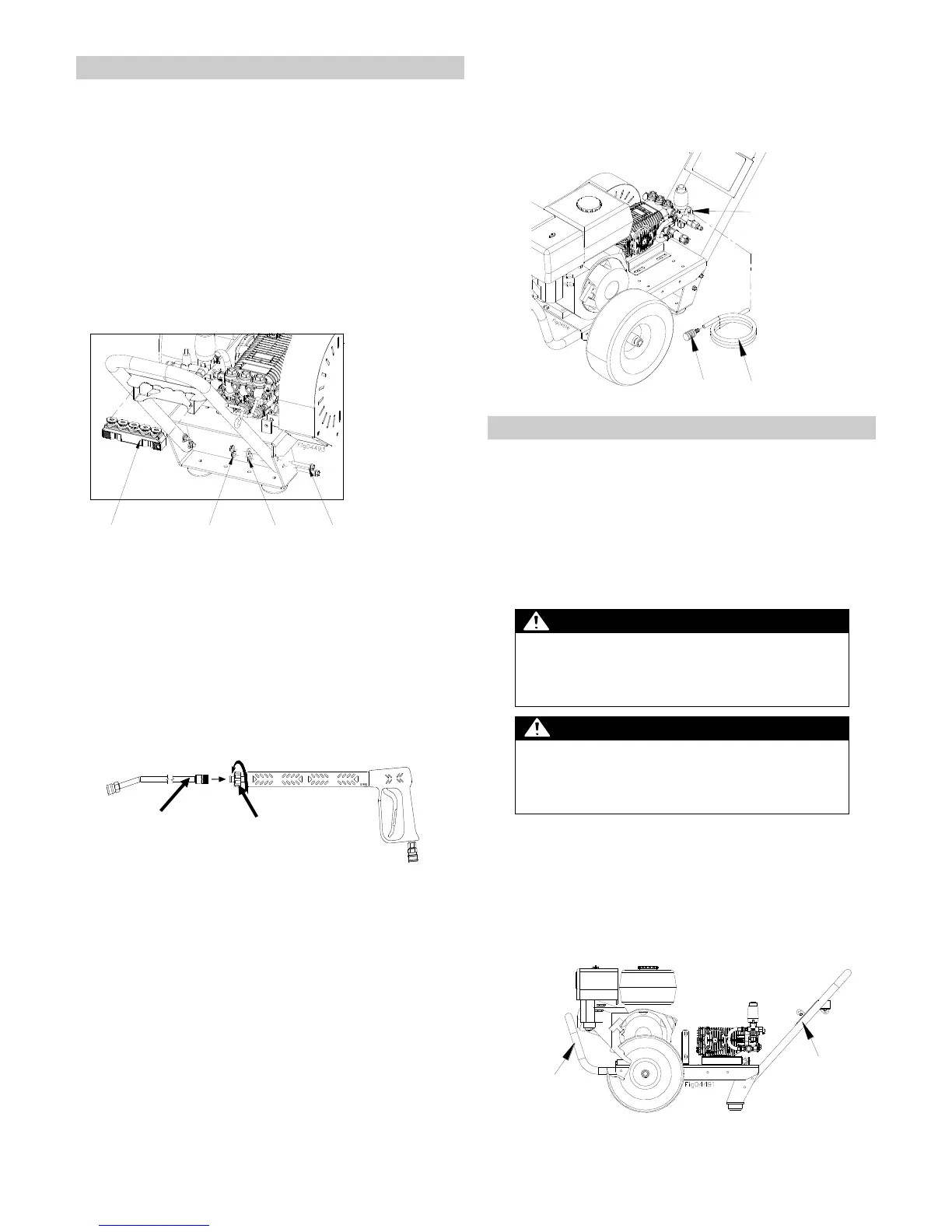

Step 2. Assembly of Pressure Washer
Note: Remove contents from pallet and assembly can
occur at this time or in conjunction with Step 4
Install Pressure Washer Handle
1. Insert five nozzles into nozzle holder. Nozzle
holder can then be clipped into position on the
handle of the pressure washer.
2. Fasten Handle to Frame using:
(4) 5/16” x 2” Flange Bolts (82018)
(4) 5/16” Washers (82021)
(4) 5/16” Flange Nuts (82019)
Note: Repeat for both sides of handle
Spray Gun Assembly
3. Attach the Lance to Spray Gun
Tighten spin-on coupler hand tight.
Note: The o-rings make the seal so there is no need to
tighten with a wrench.
Connect High Pressure Hose
4. Connect one end of the chemical hose to the
chemical injector barb.
5. Press strainer onto the other end of the chemical
hose.
Step 3. Select Suitable Location
Moving your pressure washer around
Use the handles to manually move the pressure
washer.
Push the pressure washer in front of you has you
walk.
To turn, push down slightly on the handles and
pivot the pressure washer on its back wheels.
WARNING: Lifting hazard
The pressures washer is heavy. It can crush and cause
serious injury if it rolls out of control or tips over. Follow
the instructions below for safely moving the pressure
washer.
WARNING: Location hazards
Choose a suitable site for operating your pressure
washer to prevent possible death from carbon
monoxide poisoning or injury from fire/explosion, hot
surfaces or equipment tip-over.
Elevating or lowering your pressure washer
To reduce risk of injury, it is recommended that
two adults lift the pressure washer.
Only lift the pressure washer by the bumper and
handle. Do not use the pump or engine as a lifting
point.
Nozzle Holder
with Nozzles
Flange Nuts
Washers
Flange Bolts
Chemical Injector
Chemical Hose
Strainer
