North Star 1573021 - Handle Assembly Procedure

Assembly Instructions
9

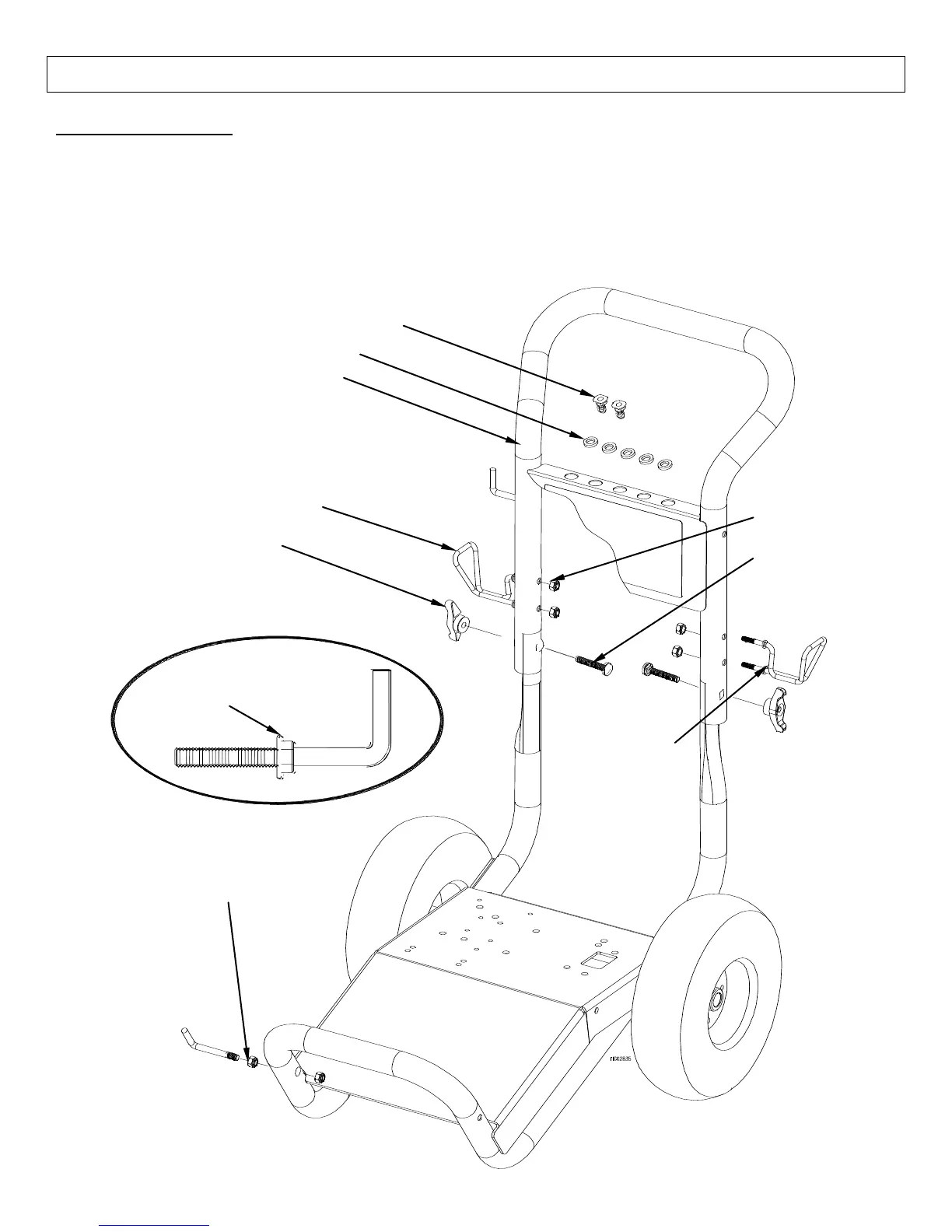

III.) Handle Assembly
1.) Attach handle to base with two carriage bolts and t-handle knobs.
2.) Spin a flange nut backwards onto gun hook. (see hook detail)
3.) Mount the hose hooks onto the handle and gun hook onto the base as shown.
4.) Insert grommets into the holes on the handle nameplate.
5.) Press nozzles into grommets according to the colors indicated on the handle decal.
Nozzles
Grommets
Handle
T-handle knob
Flange nuts
Carriage Bolts
Hose Hook
Hook Detail
Flange nut
Hose Hook
Nylock nuts
