Assembly and Initial Set-Up
Step 1. Inspect & Unpack
Inspect pressure washer immediately after delivery for
missing parts or damage. Find and separate
components identified in Figure 4 and Figure 5.
• For missing or damaged components, contact Product
Support at 1-800-270-0810.

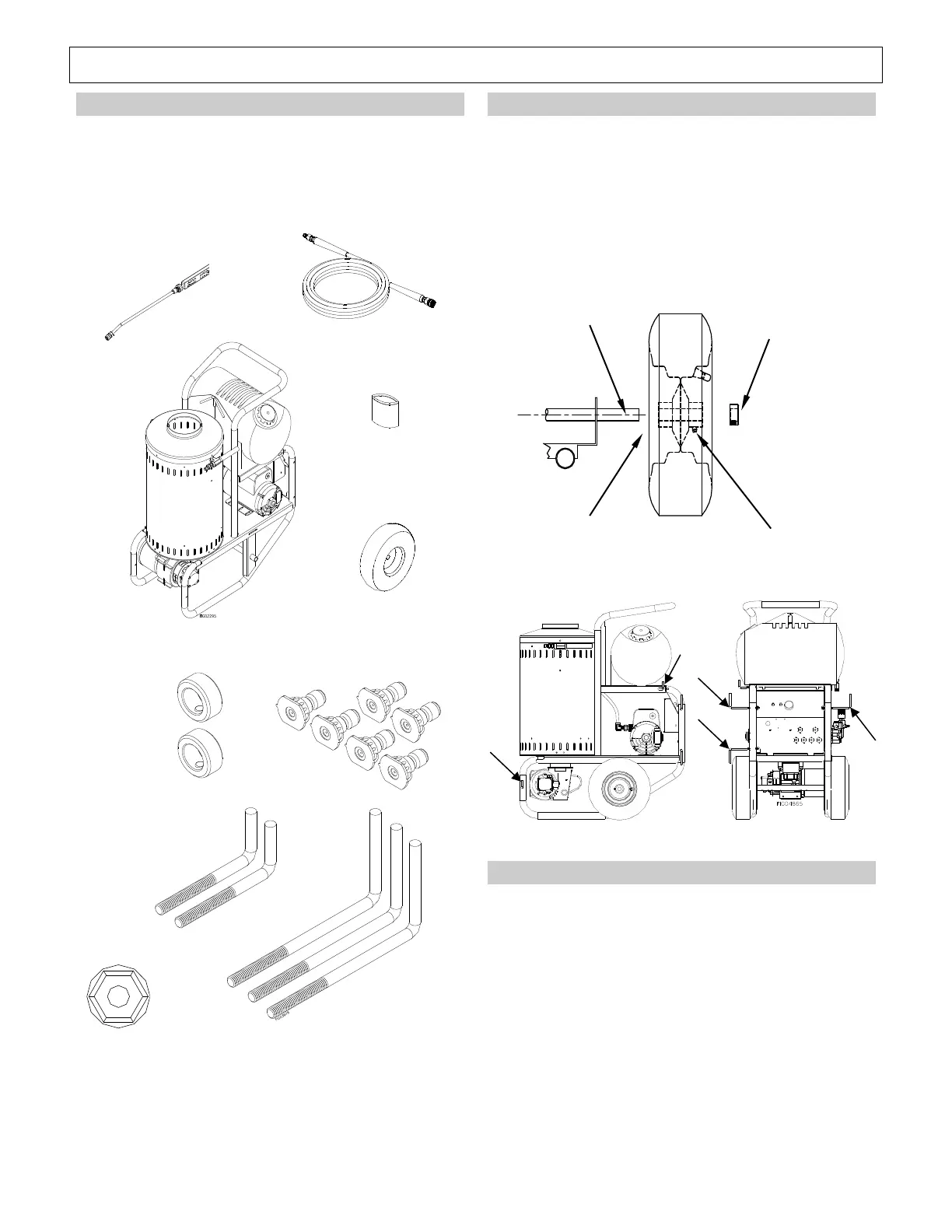

Figure 4 – Pressure Washer Components
Figure 5 – Parts to be installed
Step 2. Assembly
Insert nozzles in spaces provided on the control panel.
To install wheels, refer to Figure 6:
• Raise pressure washer off floor using blocks or
ramps and secure.
• Install two wheels with grease zerk away from
frame.
• Slide wheel retainers onto end of each axle.
Tighten retainer setscrew with a hex wrench.
Figure 6
• Install hose hook and gun hooks in the following
locations fasten with nut:
Step 3. Verify Electrical Connection
Grounding
Product must be grounded. The supply cord is equipped
with an equipment-grounding conductor and a
grounding plug. This plug must be plugged into an outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
Ground Fault Circuit Interrupter Protection
Connecting the pressure washer through some type of
ground fault circuit interrupter (GFCI) protector is
required to comply with the National Electric Code
To Next Page
