North Star 2851701 User Manual

Assembly (continued)
13

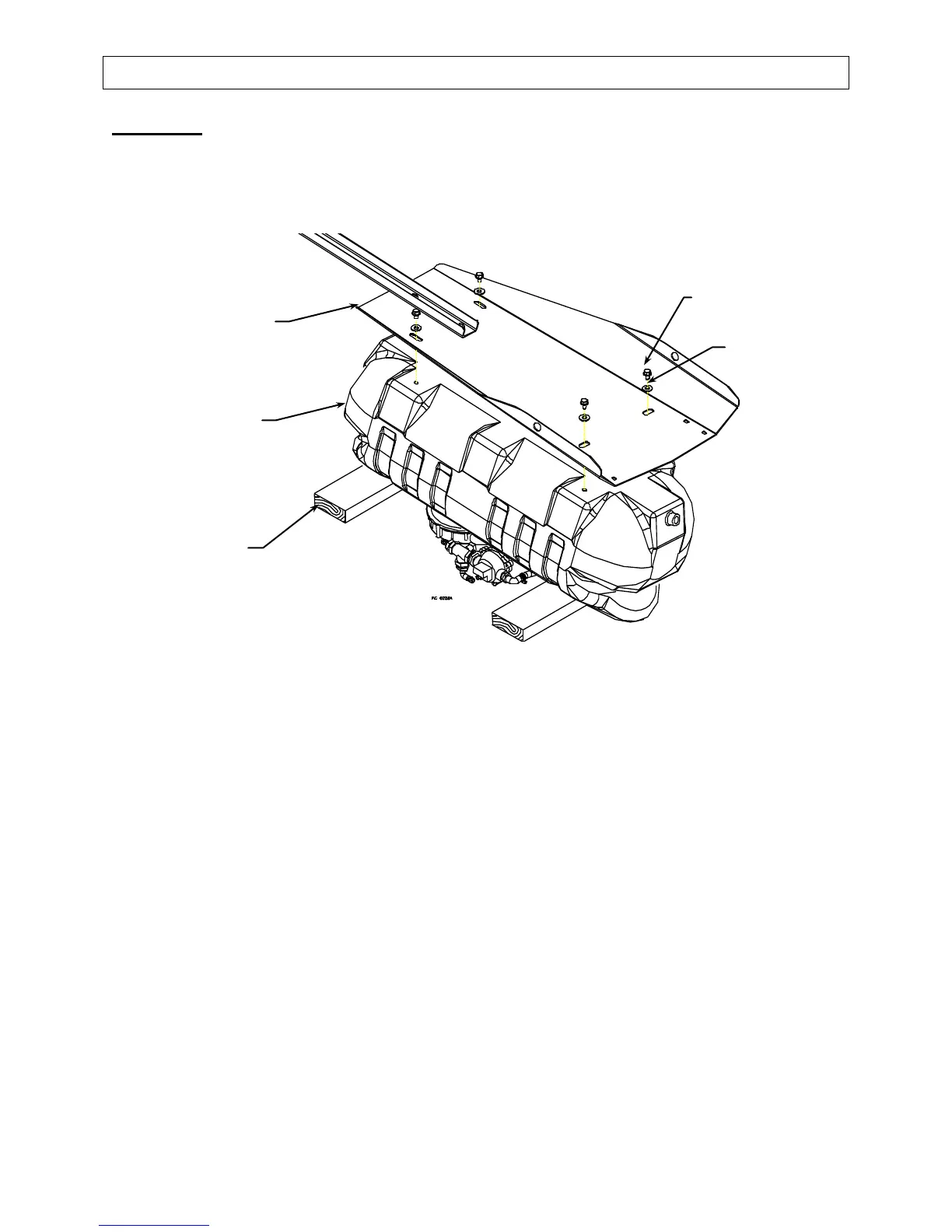

Step Eight: Attach the cart base to the sprayer
Note: To protect the pump from damage, place two wood planks or spacers under the sprayer to
keep the pump from resting on the ground.
Using (4) flat washers, loosely thread (4) 5/16 x 3/4" flange bolts into the inserts in the bottom of
the sprayer. Center the sprayer on the cart base and tighten to 5 ft-lbs.
Cart base
Wood planks
or spacers
(Not included)
Sprayer
5/16 x 3/4”
Flange bolt
Flat washer

North Star 2851701 Specifications

General

Model	2851701
Type	Airless Paint Sprayer
Power Source	Electric
Maximum Pressure (psi)	3000
Orifice Size (in.)	0.017
Hose Length	50 ft
Nozzle Size (in)	0.017
