3

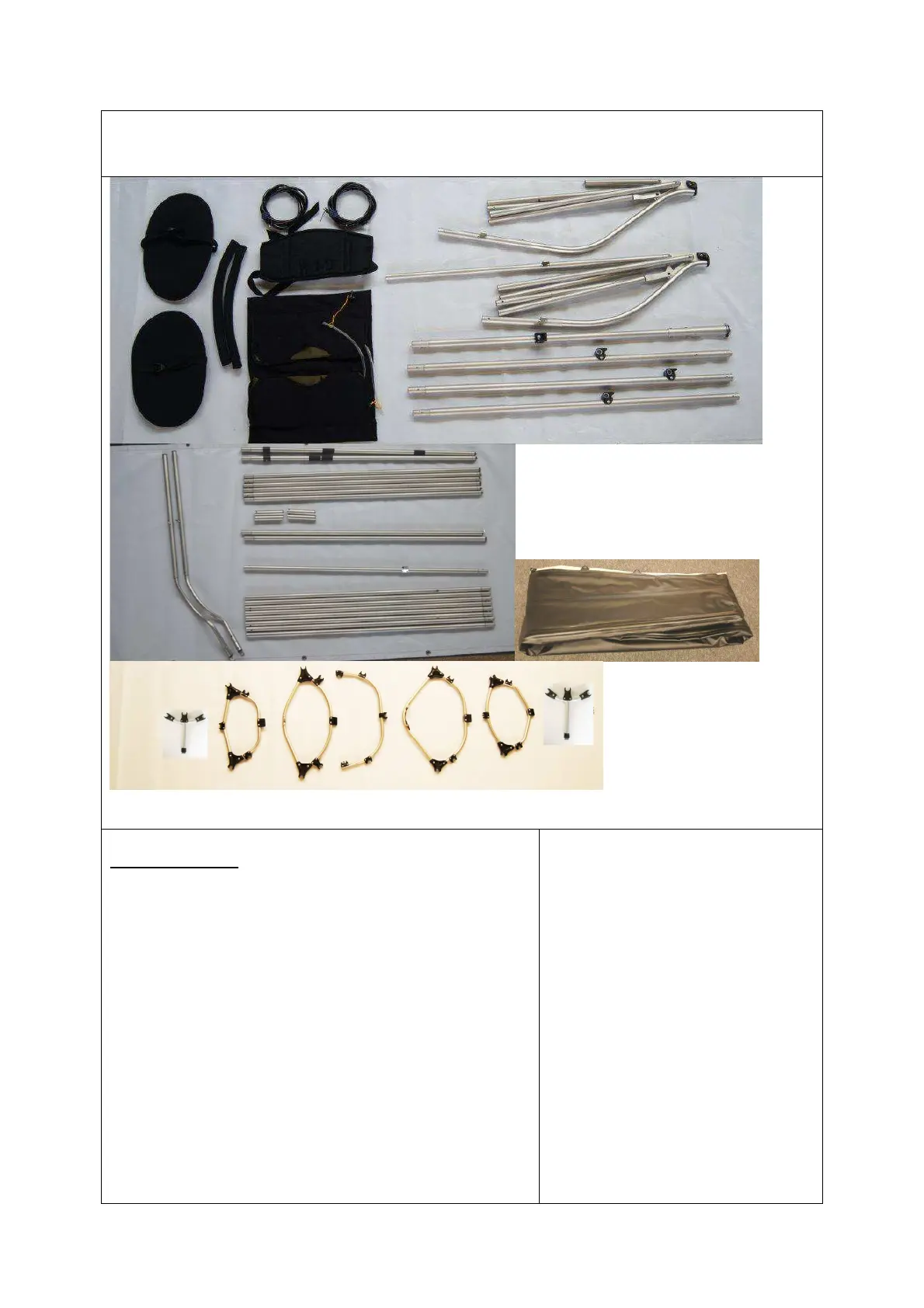

1) Overview parts
Overview parts:
1) Bow segment
2) Stern segment (with longer ridge bar)
3) 4x Keel rods
4) Neoprene cover for loading hatches
5) Hanging seat and back rest
6) Neoprene cover for thigh braces (already
installed)
7) Bowden wire (only with rudder system)
8) 2x Stringer elements with lock and riveted
stopping ring
9) 6x Stringer elements with lock
10) 4x Sleeves
11) 2x Ridge bar with metal
fitting at the end
12) /13) 9x Stringer element
without lock (one is used as
ridge bar extension)
14) 2x Thigh braces
15) 7x Cross ribs
(Note: #1 is higher than #7)
16) Hull
17) Repair kit (no pic)
1)
11
2)
3)
4)
5)
6)
5)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
