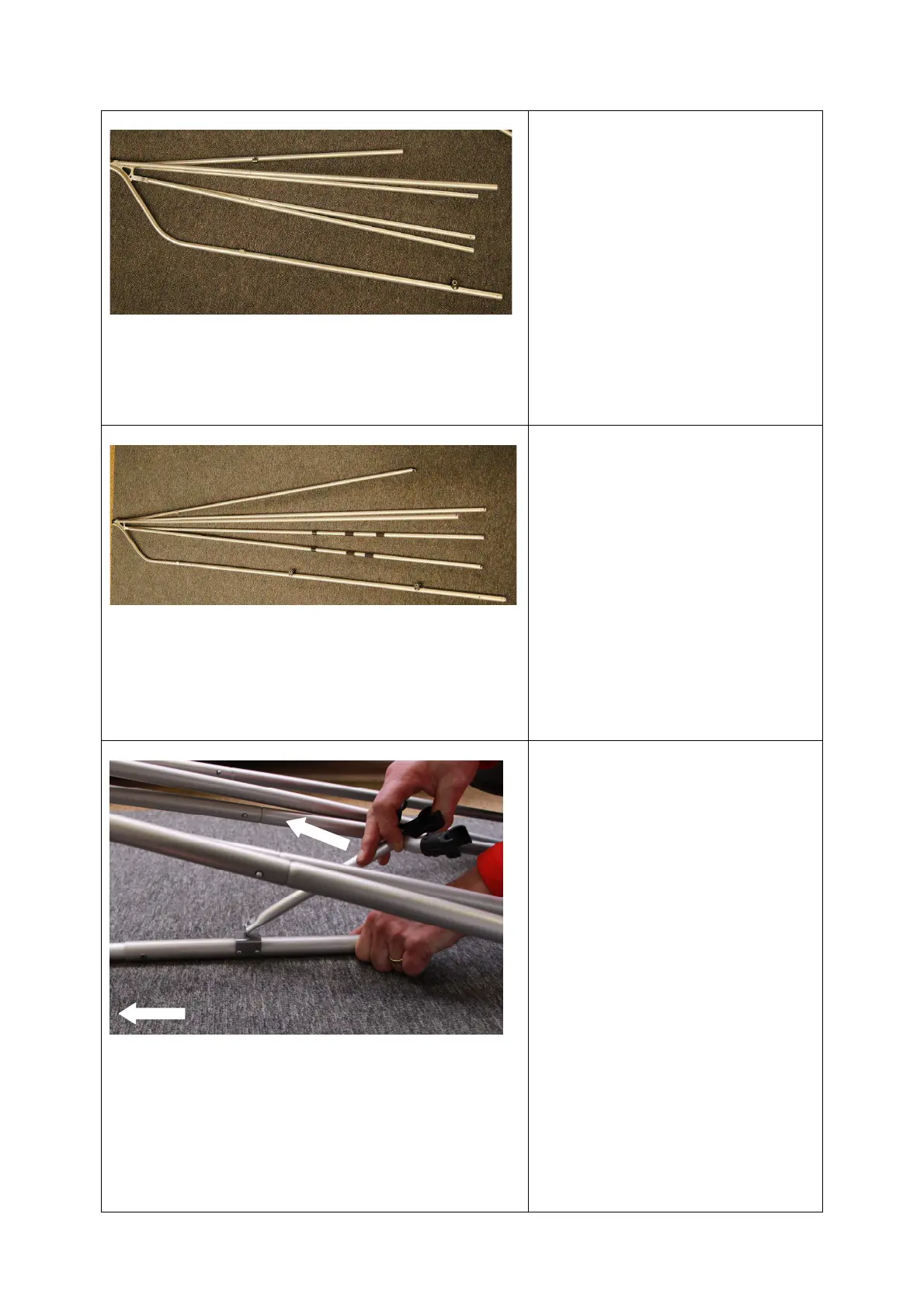

Clip keel rod #1 to the keel element
of the bow segment.
Then clip a stringer element without
lock on each of the 4 middle
elements at the bow segment.
The ridge bar (= stringer element
without lock!) is clipped to the top
pickup element on the bow
segment.
(This should result in the image on
the left.)
Then clip keel rod #2 (with
hemispherical end) to keel rod #1.
Clip a stringer element with lock
(and riveted stopping ring)
To each of the lower stringer
elements.
The two remaining stringer elements
with lock are clipped to the upper
stringer elements.
The ridge bar is placed on the top.
(This should result in the image on
the left.)
Now install cross rib #1.
First place the cross rib diagonally
then slide the clip onto the “counter
clip” on the keel rod and slowly right
it up. Then clip in the ridge bar and
the two upper stringer elements.
The two lower stringer elements
"run free" towards the back.
