7

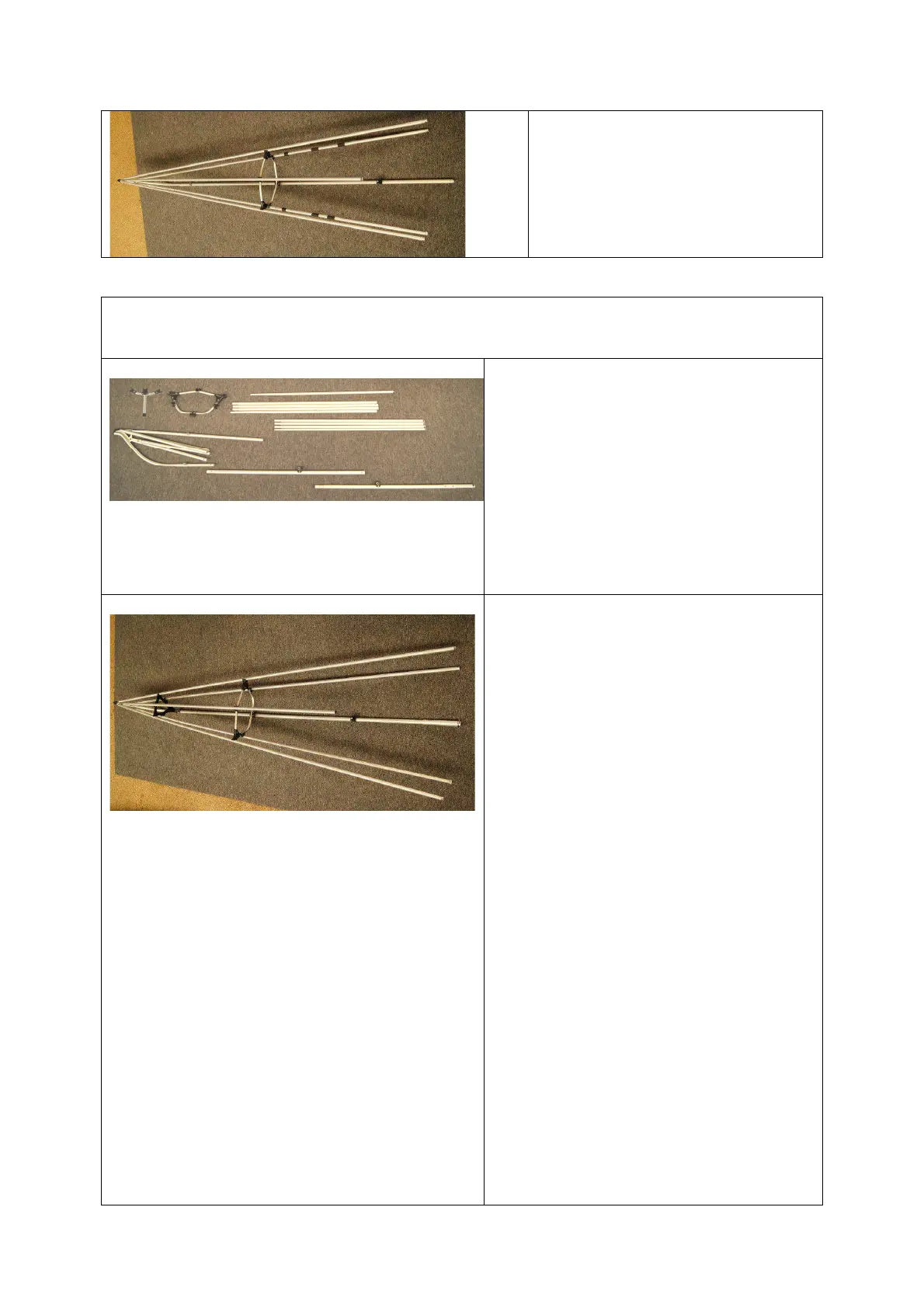

The bow element is fully assembled
and should result in the image on
the left.
4) Assembling stern
You need:
1x Stern segment
1x Ridge bar with metal fitting at the end
4x Stringer element without lock
4x Stringer element with lock
1x Keel rod #4
(clip nearly in the middle, open end)
1x Keel rod #3 (with riveted half tube)
Cross rib #6 and #7
(Note: the smaller one than #1)
First you clip the keel rods to the stern
segment. First #4, then #3 (with the
riveted half tube).
Then clip a stringer element without lock
on each of the 4 middle elements at the
stern segment, followed by the 4
remaining stringer elements with lock.
The remaining ridge bar with metal fitting
at the end clips into the top element.
Then install cross rib #7 and #6 analogue
to the previous steps.
ATTENTION: Cross rib #7 is slid on from
the stern side.
