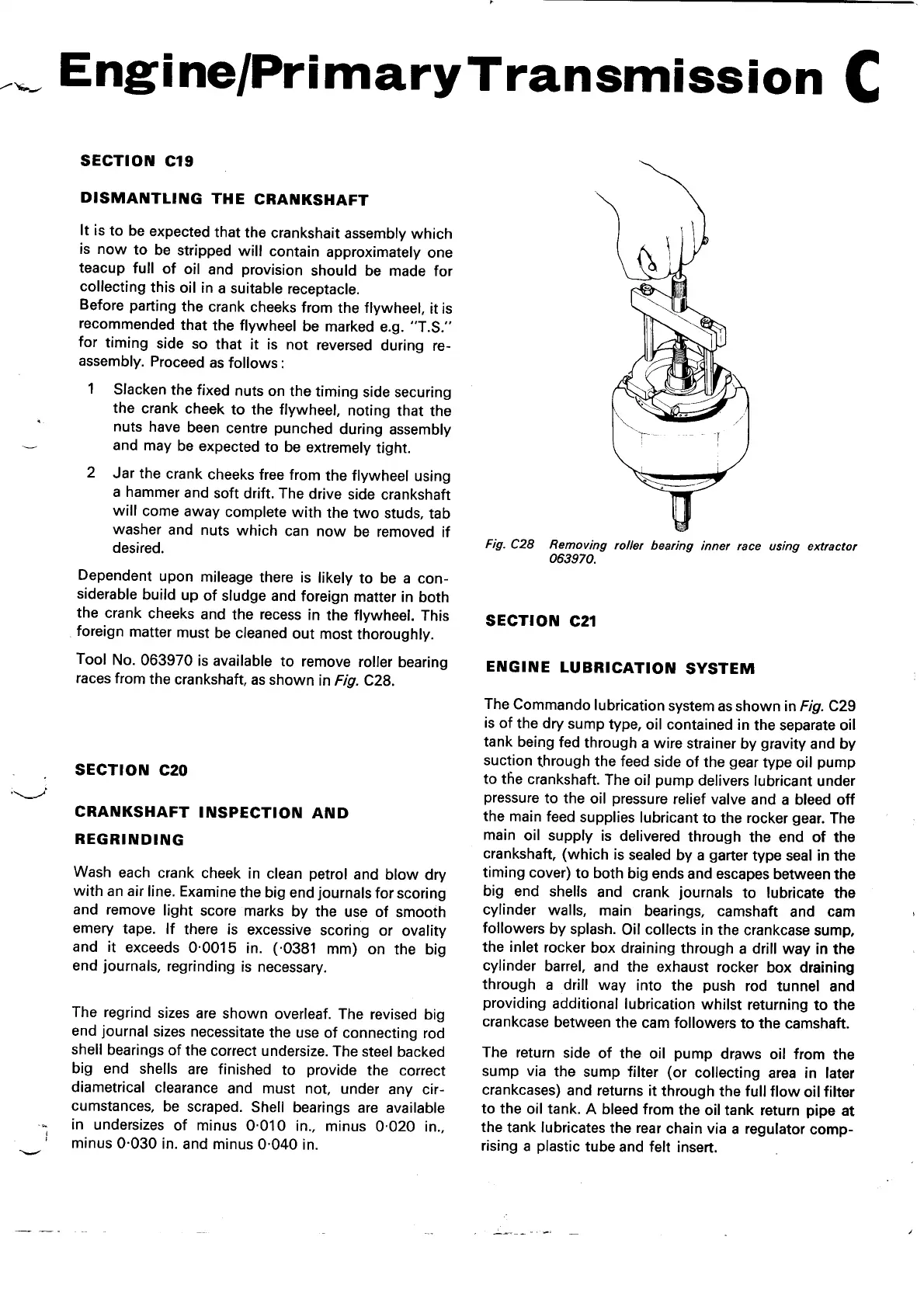

Norton Commando 850 - Dismantling the Cranckshaft; Cranckshaft Inspection and Regrinding; Engine Lubrication System; Removing Roller Bearing Inner Race Using Extractor 063970
