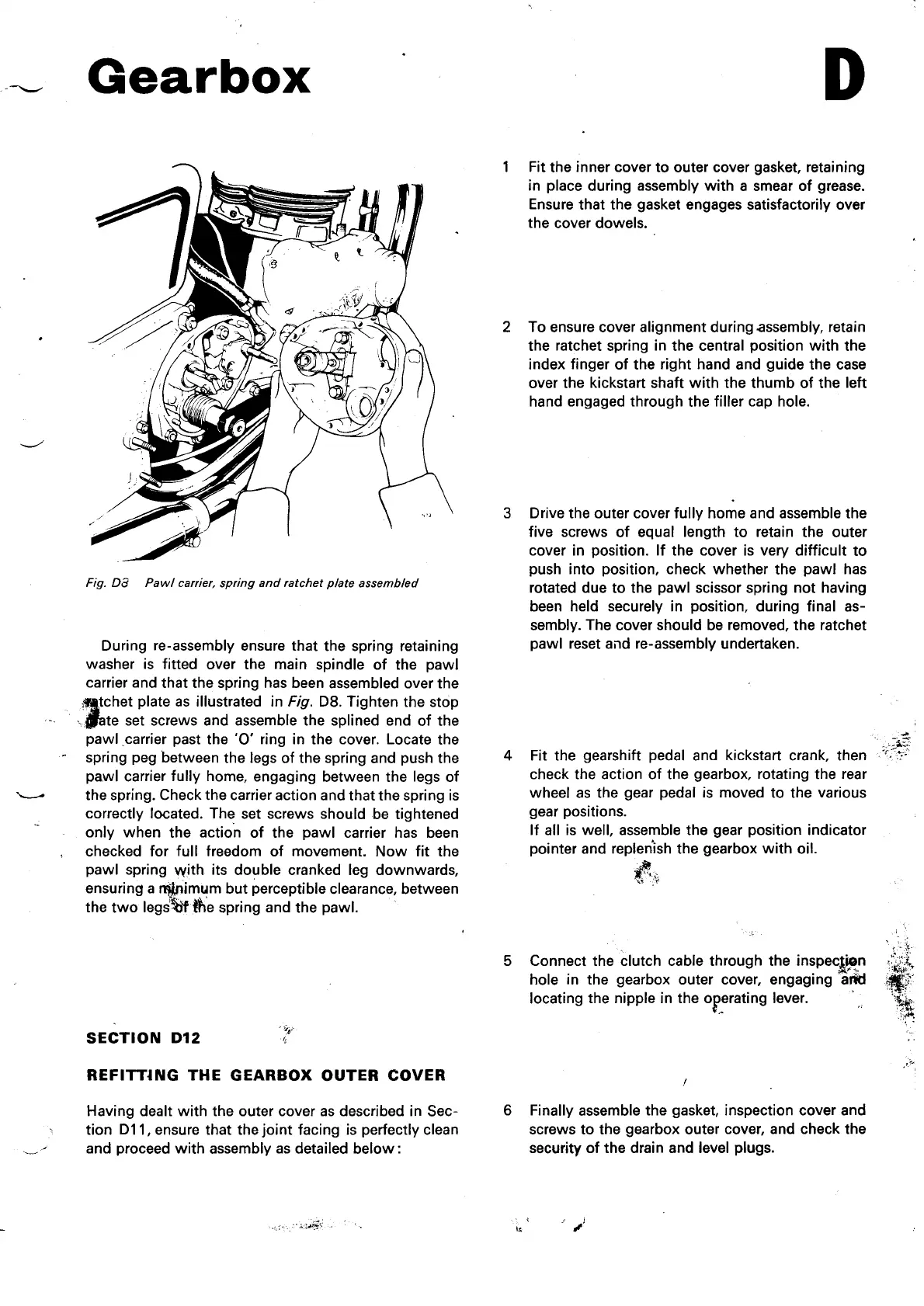

Norton Commando 850 - Refitting the Gearbox Outer Cover; Pawl Carrier, Spring and Pichet Plate Assembled
