3.2 Main Menu

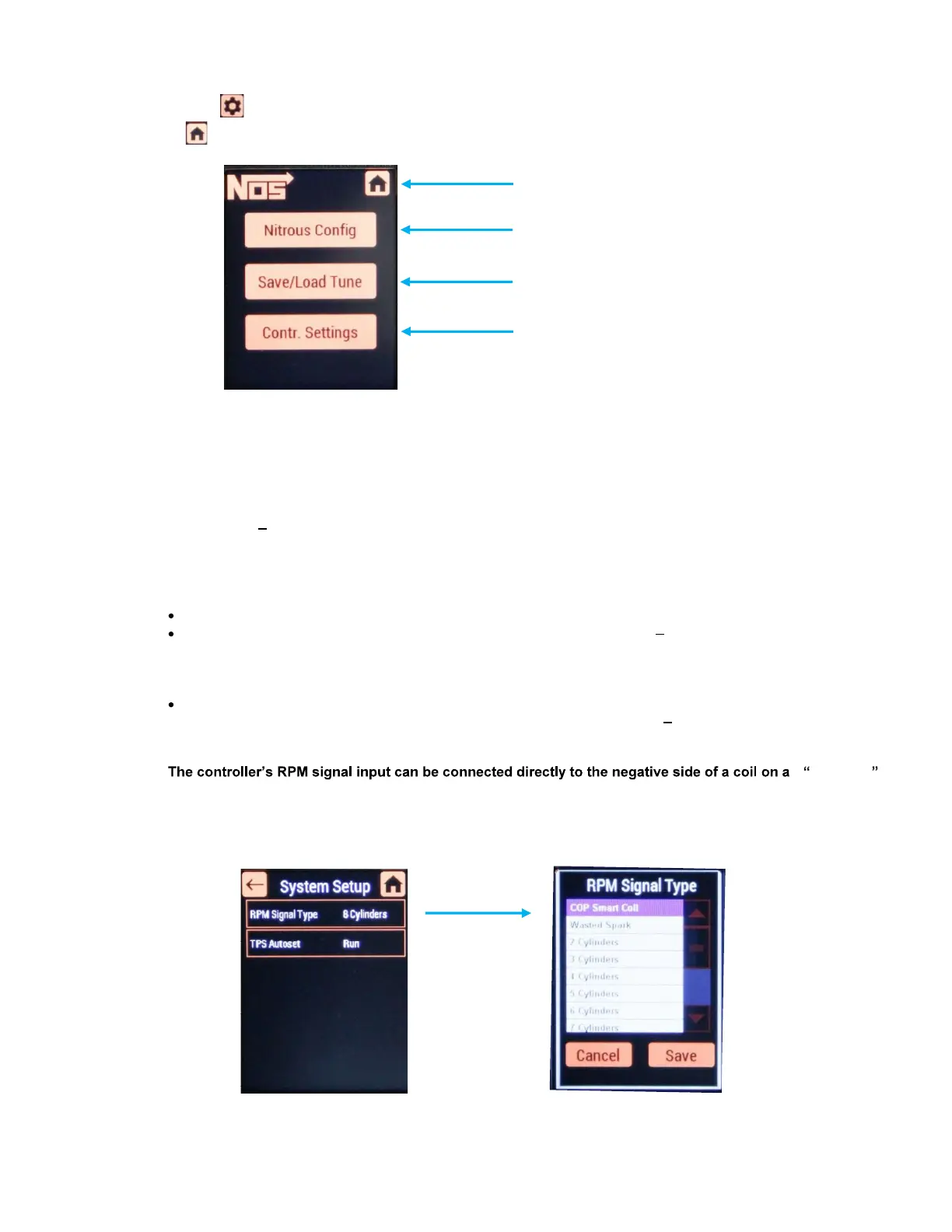

By selecting the gear icon at the top right corner, you will be directed to the main menu screen. Here you can select from the menu
items. Selecting the will take you back to the home screen.
3.3 Nitrous Configuration
In the Nitrous Configuration menu you will be presented with a choice of three menus. System Setup, Stage 1, & Stage 2. NOTE: The
controller will come pre-programmed with default values. These are only placeholders and will need to be configured.
3.3.1 System Setup RPM Signal
System setup allows you to select the type of RPM signal and set up the TPS via the TPS Autoset app. The NOS Mini 2-
Stage Progressive Nitrous Controller supports the following RPM Signals:
Individual Coil per Cylinder (Coil on Plug)
Coil packs that fire in pairs (Waste Spark /Dual Outlet Coil Pack Systems) Note: Use this setting to expand the
RPM range higher than 9900. For example, on a 4 cylinder motorcycle, this will allow for a higher maximum RPM
window. In this mode, the control can be set at 3000 and 6000 which will activate at 6000 and 12000. (This can
only be done if the application is NOT a waste-fire ignition system).
2-12 cylinder engines, when the tach wire is connected to the tach from the engine electronic controller or
distributor (e.g. a cd ignition system or a conventional coil/distributor setup) (This would be the 12V square
wave tach output on a MSD box or a GM HEI).
NOTE: n inductive
style ignition.
NOTE: Refer to the factory service manual to identify which style ignition system the vehicle has for proper wire
connection.
Enters System Setup, Stage 1 Setup, & Stage 2
Setup Menus
Go back to the Home Screen
ntroller, adjust Home Screen RPM
display limits, touch screen calibration, &
enable/disable bottle pressure display
To Next Page
