Nos NSJ0301 - PARTS LIST AND DIAGRAM

4 rev. 11/17/17
Model NSJ0301
3 Ton Capacity Aluminum Service Jack

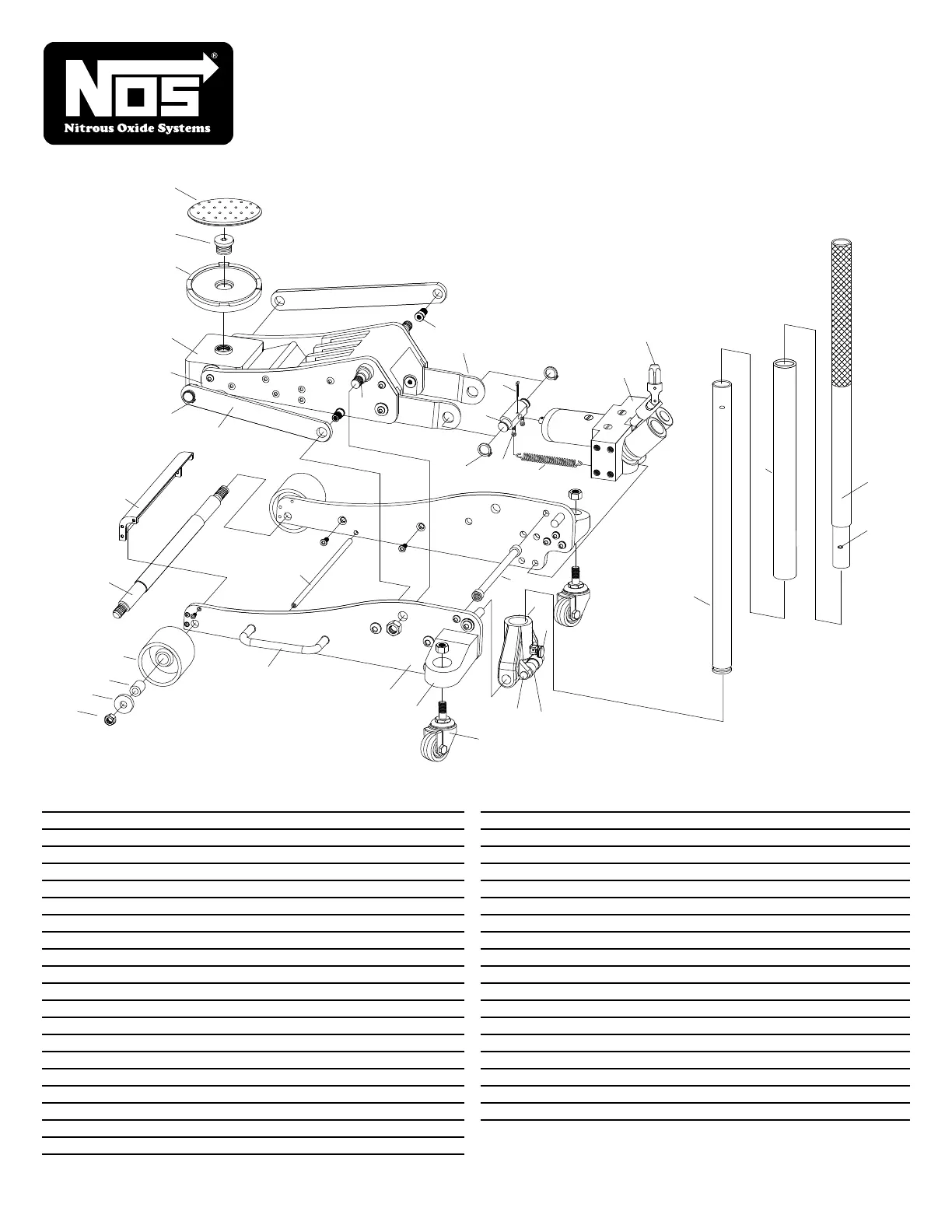

PARTS LIST AND DIAGRAM
REF # PART# DESCRIPTION QTY
1 RSALJ3T38 Rubber Saddle Pad 1
2 Saddle Bolt 1
3 RS6603ASJ36 Saddle 1
4 Saddle Seat 1
5 Lift Arm Side Plate 1
6 Retaining RIng (18) 2
7 Link Rod 2
8 Baffle 1
9 Front Wheel Axle 1
10 RS6603ASJ17 Front Wheel Assembly (incl. #11, 12, 13) 2
11 Bushing (incl. with #10) 2
12 Washer (incl. with #10) 2
13 RS6603ASJ03 Nut (M12) (incl. with #10) 4
14 Rod 1
15 RS6603ASJ15 Carry Handle (incl. hardware) 2
16 Frame 2
17 Rear Caster Bracket 2
18 RS6603ASJ01 Rear Caster 2
19 Roller Pin 1
20 Roller 1
REF # PART# DESCRIPTION QTY
21 RS6603ASJ54 Handle Yoke Set Screw 1
22 RS6603ASJ55 Handle Yoke Assembly 1
23 Rod 1
24 RS6603ASJ60 Lower Handle 1
25 Lock 1
26 RS6603ASJ62 Upper Handle 1
27 RS35T20NL Handle Bumper 1
28 U-Joint 1
29 RS6603ASJ50 Power Unit Assembly 1
30 Spring 2
31 Bolt 2
32 Retaining Ring (22) 2
33 Linkage Rod 1
34 Cotter Pin 1
35 Linkage 2
36 Linkage Rod Bolt 2
37 Lift Arm Axle 1
RSNSJ0301PLK Product Label Kit (not shown) 1
