Notifier Honeywell UDS-4N

UDS-4 Installation and user manual PAGE - 29
UDS-4_manu M--203.1-UDS4N-ENG Rev A.1 NOTIFIER ITALIA

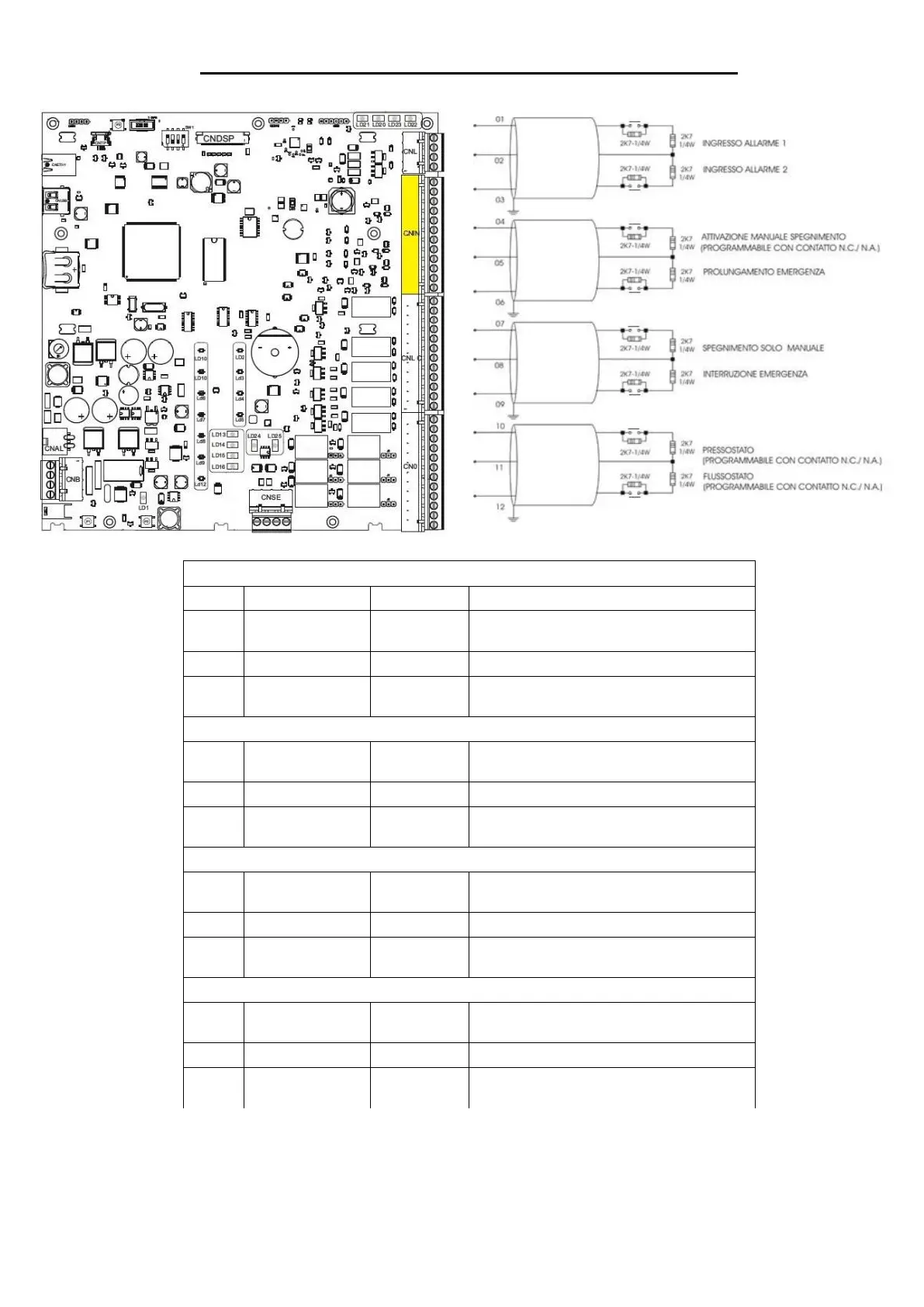

7.2 - Wiring diagrams for CNIN terminal block inputs
CNIN
Num
Name
Notes/Relays
Description
1
INALL1
NA
Alarm 1 (from conventional control unit L1)
(controlled entry)
2
GND
3
INALL2
NA
Alarm 2 (from conventional control unit L2)
(controlled entry)
4
INATTM
NA,[NA|NC].
Device Manual Activation Power Off
(controlled entry)
5
GND
6
INPROLE
NA
Emergency Extension Device
(controlled entry)
7
INMANU
NA
Manual shutdown only
(controlled entry)
8
GND
9
ININTEM
NA
Emergency Interruption Device
(controlled entry)
10
INPRESS
NA,[NA|NC].
Pressure switch
(controlled entry)
11
GND
12
INFLUSS
NA,[NA|NC].
Flow switch
(controlled entry)
