12
INA 15092:I 05/30/01

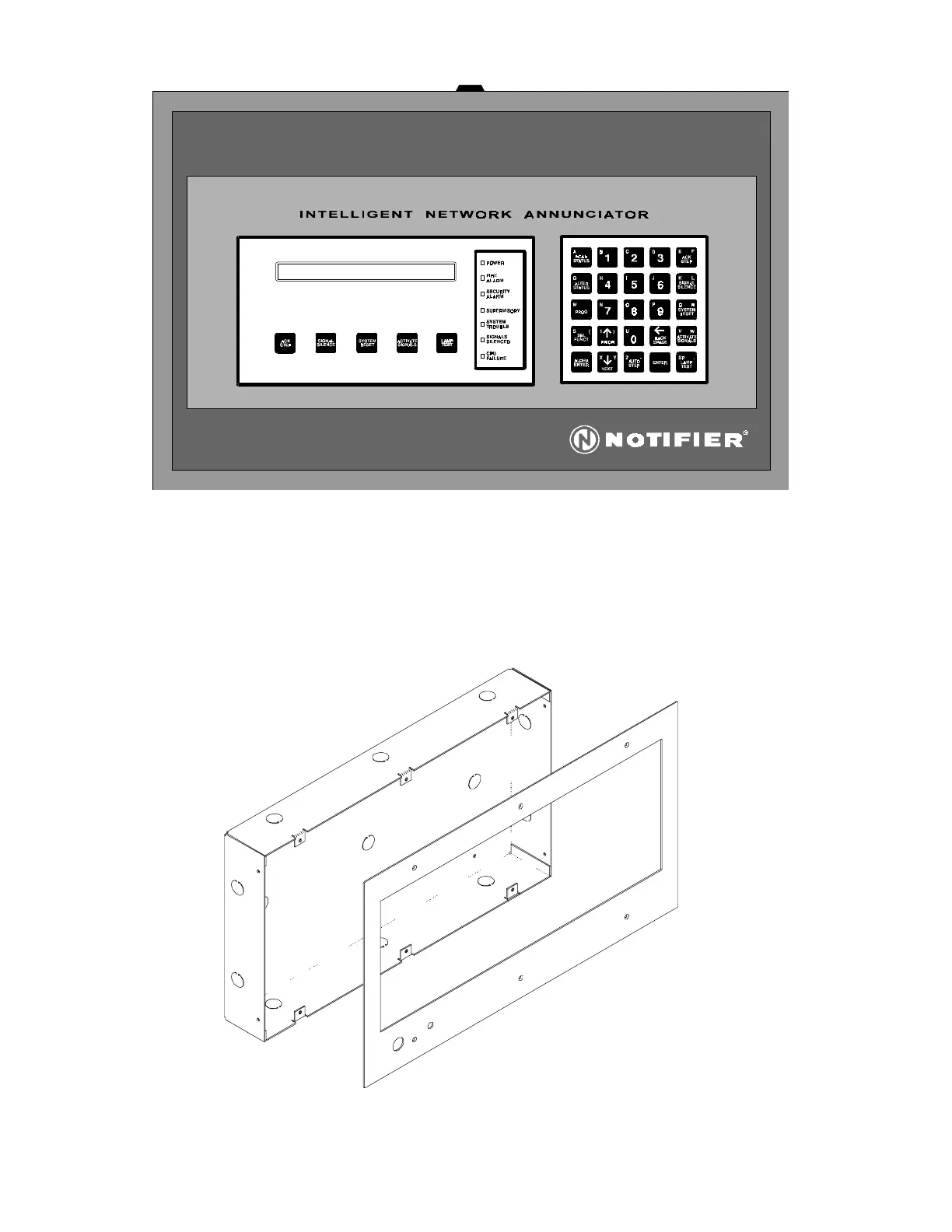

Figure 2.2.1-1 ABS-4D Cabinet
2.2.2 ABF-4 Cabinet
The ABF-4 Cabinet (refer to Figure 2.2.2-1) is a flush mounting annunciator box. Power must be supplied externally.
Knockouts are provided for use with a 1/2-inch (12.7 mm) conduit. The height of the cabinet is 9-15/16 inches (50.643 cm),
the width is 17-3/8 inches(44.133 cm), and the depth is 2-1/2 inches (63.5 mm). The dimensions of the trim plate (included
with the cabinet) are 11 inches (27.94 cm) high and 19-3/8 inches (49.213 cm) wide.
Figure 2.2.2-1 ABF-4 Cabinet
