Notifier INA User Manual

INA 15092:I 05/30/01
15

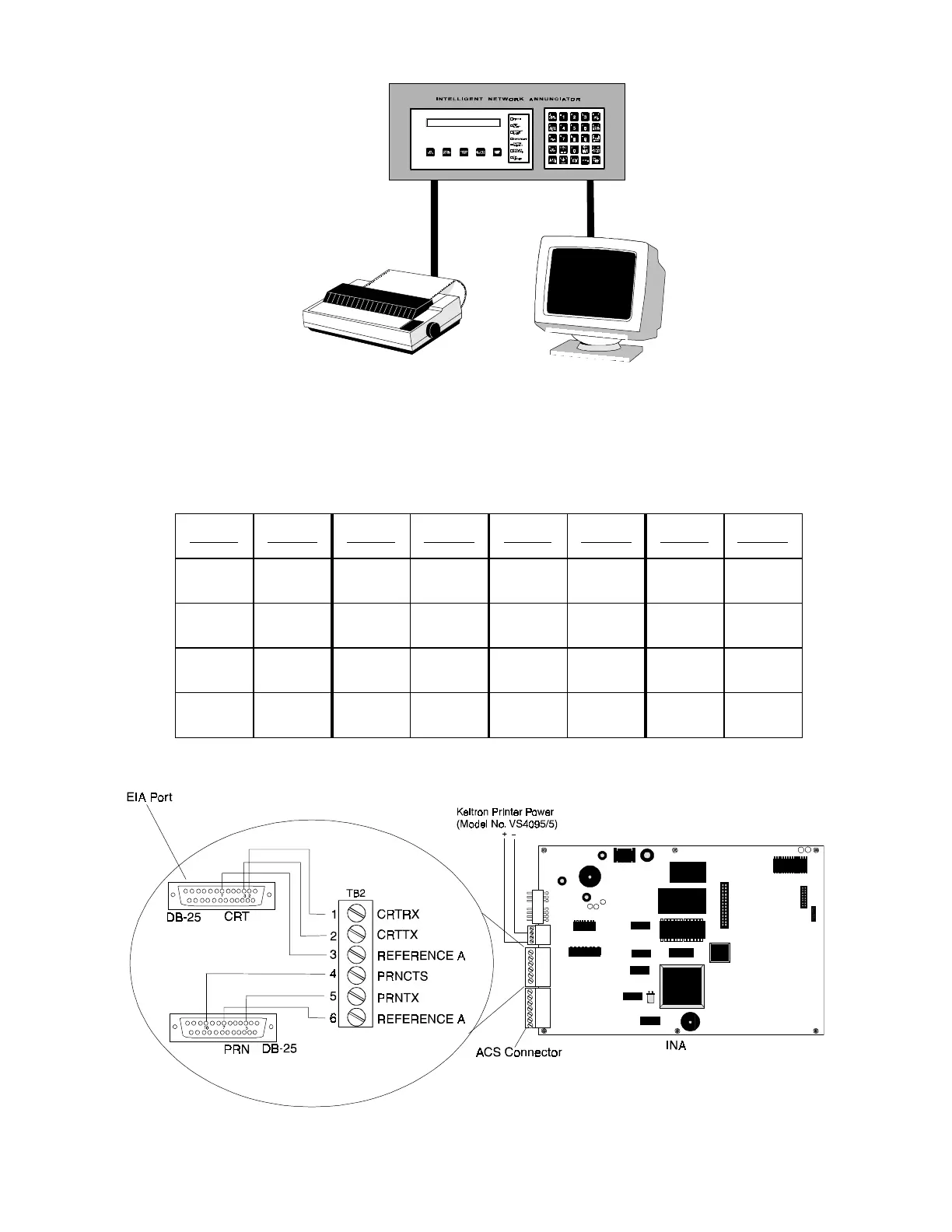

Figure 2.3-2 EIA-232 Communications Connection
INA
PRN Printer
CRT-2
Figure 2.3-1 INA Connections
Printer outputs are power limited and are not supervised. Where a printer is required, make connections in conduit (20 feet
(6.096 m) maximum) with an overall foil/braided-shield twisted-paired cable suitable for EIA-232E applications (refer to
Figure 2.3-4). The Keltron printer DIP switches should be set as shown in Table 2.3-1.
Switch Setting Switch Setting Switch Setting Switch Setting
SP1-1 OFF SP1-5 OFF SP2-1 OFF SP2-5 OFF
SP1-2 ON SP1-6 ON SP2-2 OFF SP2-6 OFF
SP1-3 OFF SP1-7 OFF SP2-3 OFF SP2-7 ON
SP1-4 ON SP1-8 ON SP2-4 OFF SP2-8 OFF
6able 2.3-1 DIP Switch Settings
