SuperNova2 – Disassembly
continued

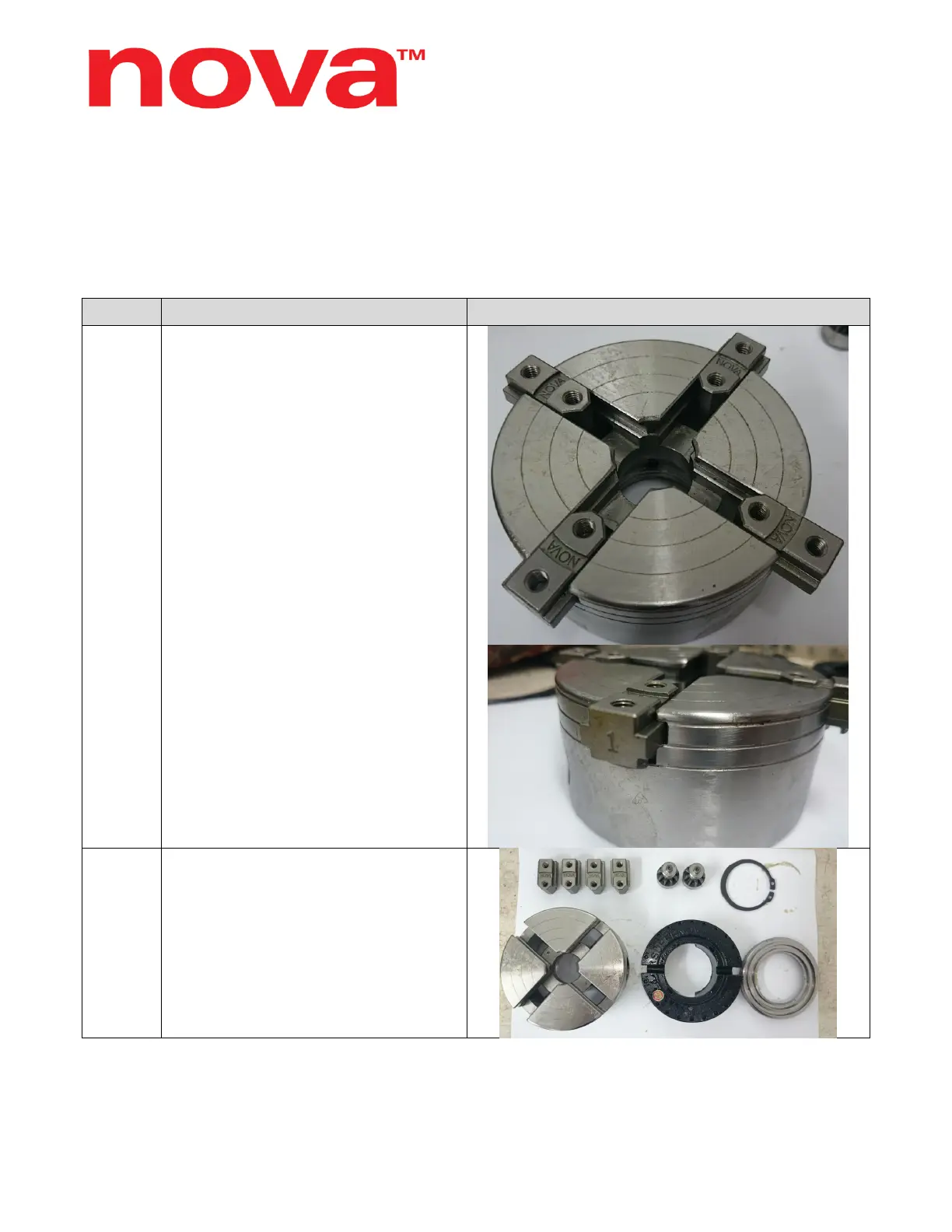

STEPS IMAGE
6.
Mark with a permanent marker
before sliding the jaw slides out
since each jaw slide will have a
corresponding slideway to it. #1
jaw slide fits where there is a
dimple.
After removing scroll ring, the jaw
slides will be free to slide out of the
chuck body.
7.
Make sure you have all parts:
1. Chuck Body
2. Pinion Gears
3. Backing plate
4. Scroll Ring
5. Retaining ring (EC48)
6. Jaw Slides #1-4
p.14
