5 PIT WIZARD INSTRUCTION MANUAL
ADJUSTABLE PARAMETERS
The Pit Wizard’s Profile Software accesses the Cyclone speed
control’s previously hidden fourth Profile. The user-programmable
fourth Profile gives you the ability to customize several design
parameters of the speed control. This adjustability will allow you
to custom tailor the speed control’s response and feel to your
preference for different applications. This section lists the user-
adjustable parameters, their descriptions, and applications:
• NEUTRAL
–Measured in microseconds (µs).
–Position at which the speed control is at rest, with no Drive or
Brake being applied.
–Initial value is taken from the transmitter, as recorded in the
One-Touch Set-Up memory of the speed control.
• FULL THROTTLE
–Measured in microseconds (µs).
–Trigger position at which speed control reaches Full Drive.
–Initial value is taken from the transmitter, as recorded in the
One-Touch Set-Up memory of the speed control.
• FULL BRAKE
–Measured in microseconds (µs).
–Trigger position at which speed control reaches Full Brake.
–Initial value is taken from the transmitter, as recorded in the
One-Touch Set-Up memory of the speed control.

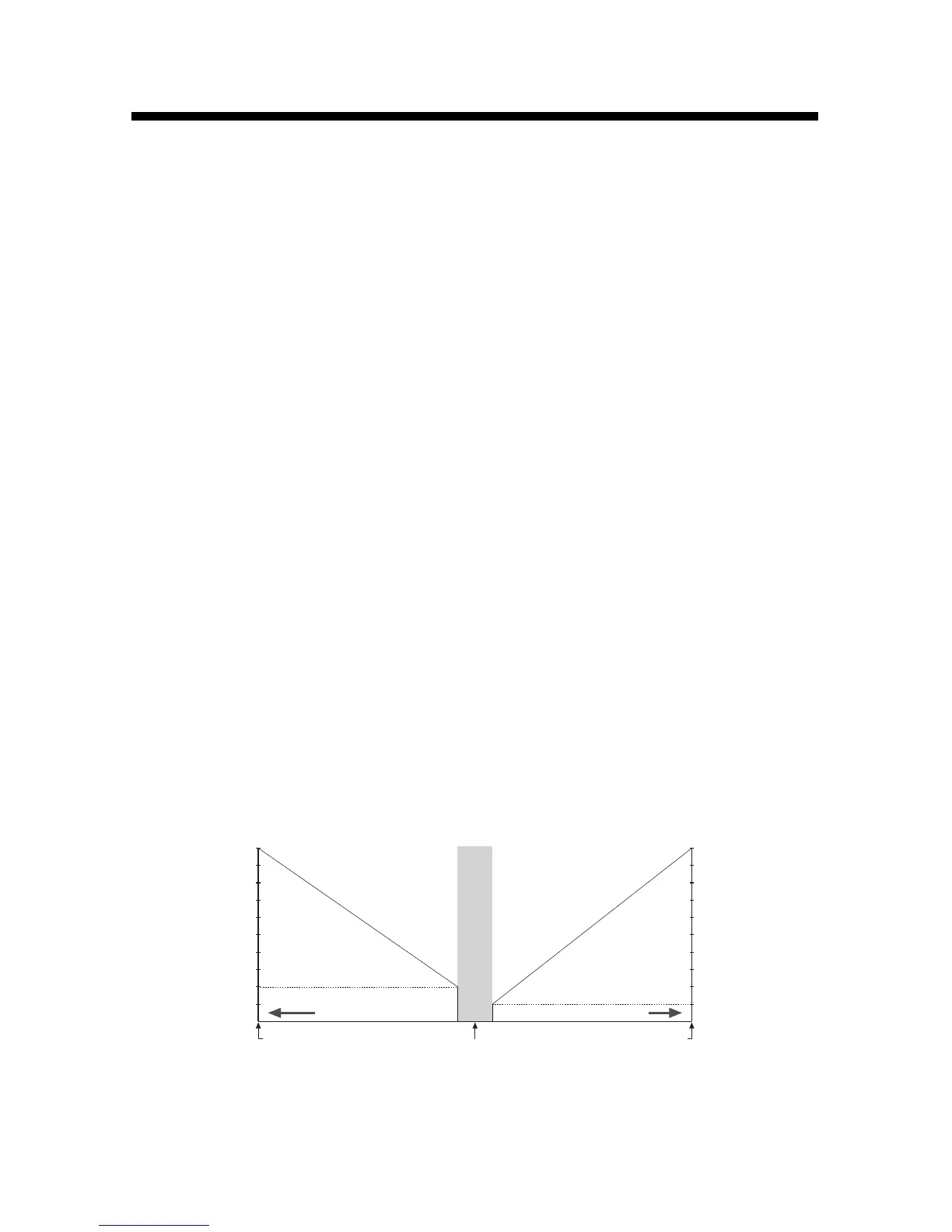

Figure 1: Neutral, Full Throttle, and Full Brake shown graphically by percent of
drive or brake applied at a given trigger position.
DEADBAND
TRIGGER POSITION
Neutral
Full
Brake
Full
Throttle
10
10
20
50
100
20
50
100
% FULL DRIVE
% FULL BRAKE
