Ventilator connections

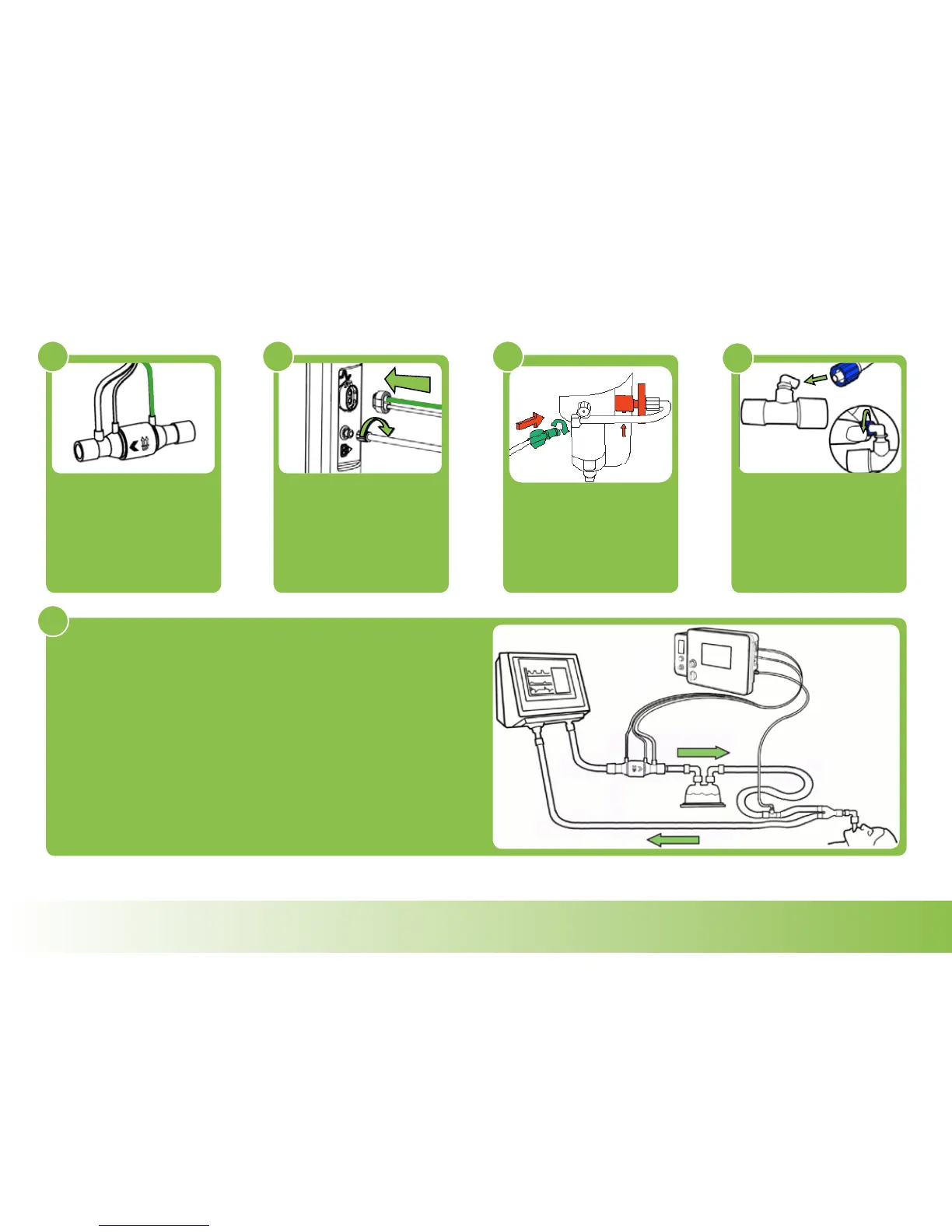

The NOxFlow
TM
is single
patient use. Unwrap and
carefully uncoil the lines.
Push and click-to-lock twin
sensor line to unit.
Twist dose line luer to unit.
Select a vent connector with
luer port from the NOXKIT
TM
.
Connect the male luer of the
sample line.
1
2 3
Connect sample line and
hydrophobic lter.
4
NOxFlow
TM
is situated in the inspiratory limb, before the
humidier.
The sample line is up to 30cm from patient.
Situated in the inspiratory limb just prior
to the patient Y-piece.
NOxFlow should be approx. 1 metre back from the sample
point. Ideal range 0.7 m – 1.3 m.
For system test, high frequency and manual bagging circuit
diagrams please refer to Technical Guide.
