NOYAFA NF-468 - Safety Precautions and Warnings; Product Functions and Specifications

● This cable tester can't test any electrified product.
● 9V reduplicated battery is used in this tester.Battery is
advised to change if any weak light appears.
● Test can't be done while RJ45's copper screezers are not
totally pressed.Any disobeys may lead to a permanent
damage of the end!
● Please use quality tools to press the cables.
● Take out the battery if the tester isn't used for a long time.

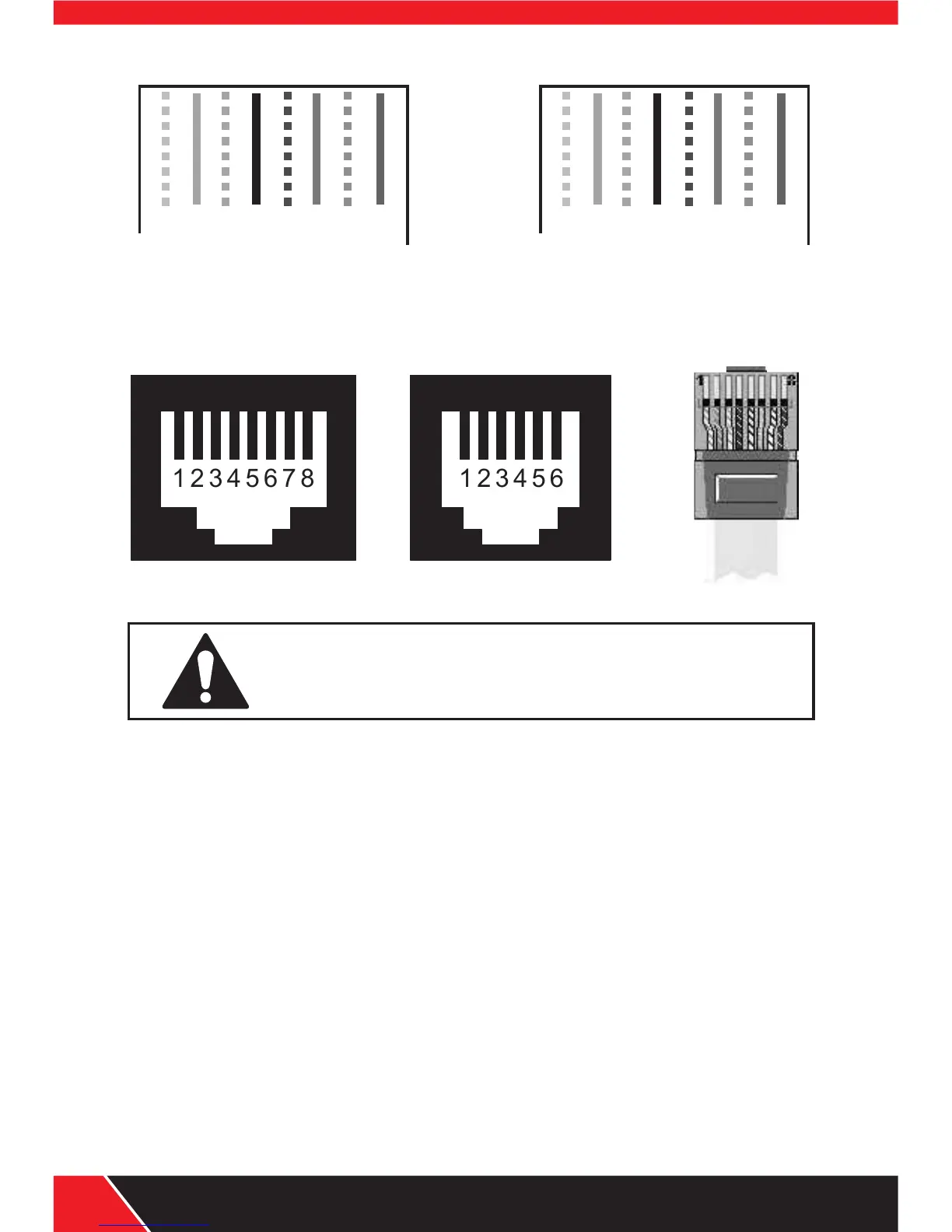

1 2 3 4 5 6 7 8
W
|
O
O W
|
G
BL W
|
BL
G W
|
BR
BR
T568B
1 2 3 4 5 6 7 8
T568A
1 2 3 4 5 6 7 8 1 2 3 4 5 6
8P8C
6P6C
PLUG
W
|
O
OW
|
G
BL W
|
BL
G W
|
BR
BR
Please read and learn safety instructions
before use or maintain the equipment
Your excellent helper in cable test!
1
I. Functions
1.It can test corresponding double-twisted cable 1,2,3,4,5,
6,7,8 and G,meanwhile, it can judge wrong connection,
short circuit and open circuit.
