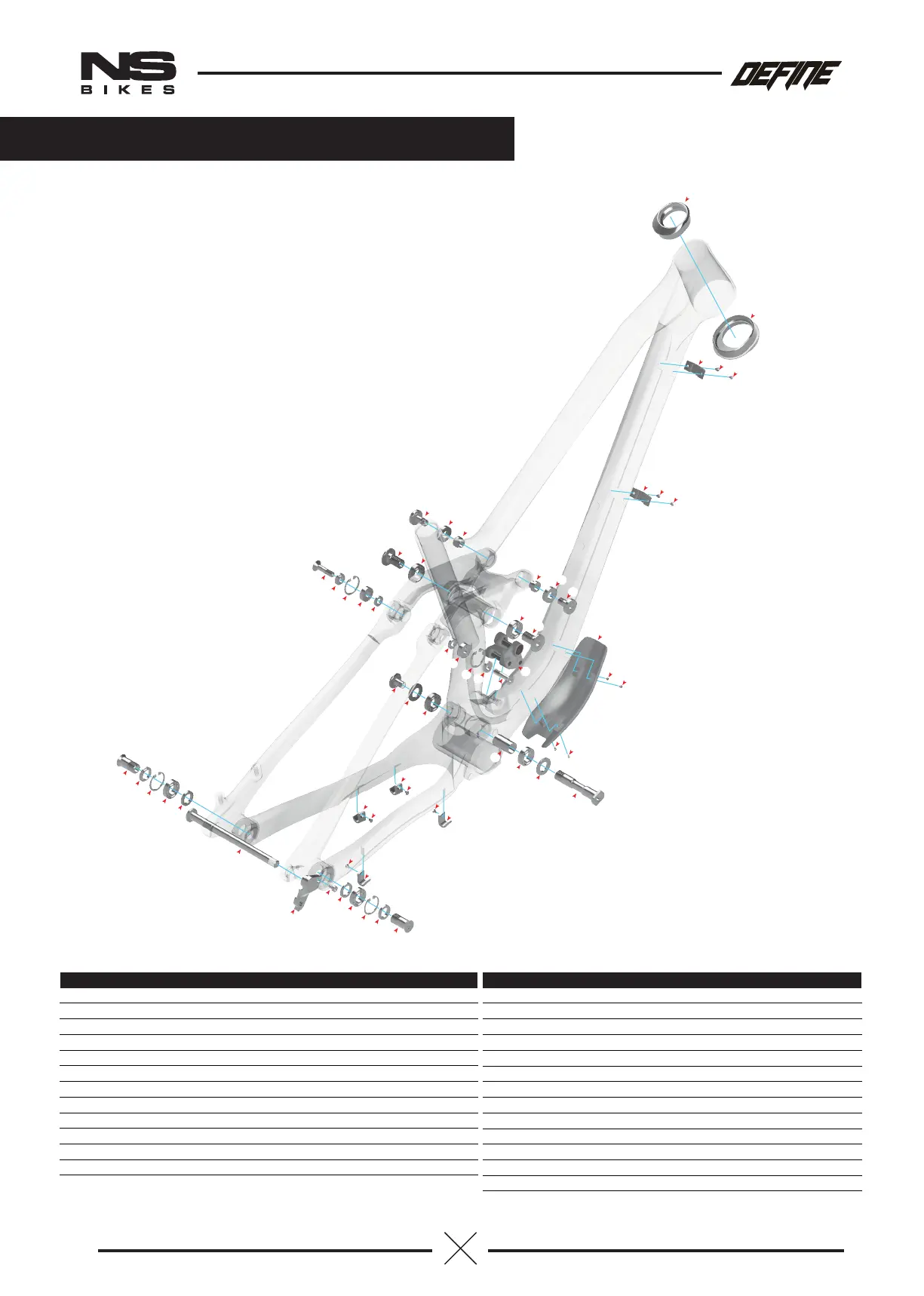

EXPLODED VIEW
Nr PART CODE Nr PART CODE
1 hanger + bolt SP-140
2
3
axle 148x12 (176L) SP-142
4
horst link bolt
SP-156
5
horst link outter washer SP-156
6
horst link c-clip SP-156
7
horst link bearing 6902-2RS (Ø15*Ø28*7T) SP-150
8
horst link inner washer
SP-156
9
cableguides rear + bolts (4 pcs.) SP-183
10
11
main pivot bolt SP-153
12
main pivot washer SP-153
main pivot spacer SP-153
15
main pivot axle SP-153
16
17
SS clevis washer
SP-076C
18
SS clevis c-clip SP-077
19
SS rocker bearing 608 (Ø8*Ø22*7T) SP-150
20
SS clevis washer SP-077
21
shock mount SP-151 / SP-152
22
rocker arm bolt SP-075
23
trunion bolt SP-163
24
trunion bearing 6902-2RS(Ø15*Ø28*7T)SP-150
25
trunion washer
SP-150
removable cableguides + bolts SP-183
oset headset SP-157
13 downtube protector + bolts SP-184
14 SS clevis bolt SP-076C
11
S
T A
Y
