NSK ASTRO-E 400Z User Manual

9

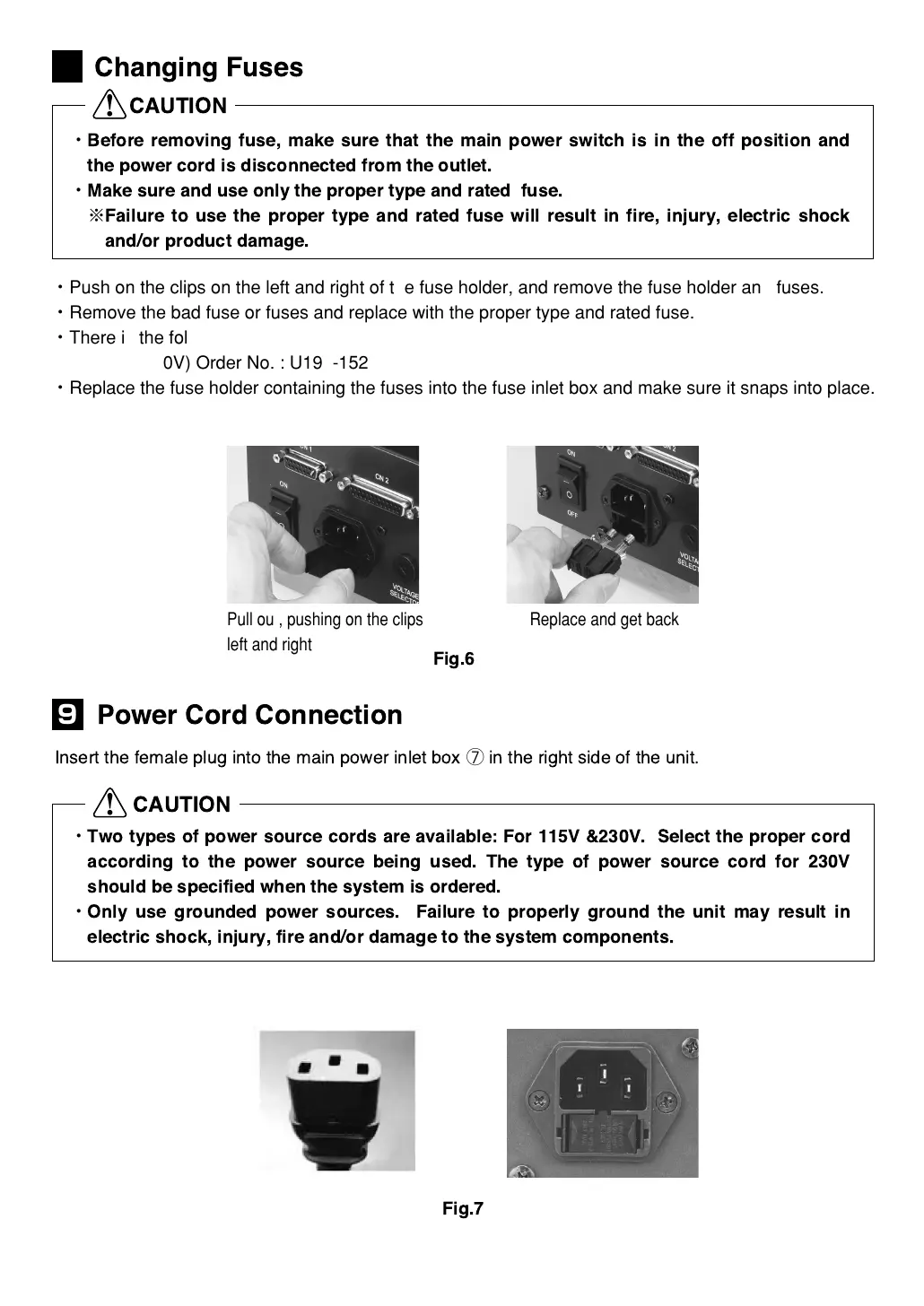

8 Changing Fuses
・ Before removing fuse, make sure that the main power switch is in the off position and
the power cord is disconnected from the outlet.
・ Make sure and use only the proper type and rated fuse. 
※ Failure to use the proper type and rated fuse will result in fire, injury, electric shock
and/or product damage.
！
CAUTION
Pullout,pushingontheclips
leftandright
Replaceandgetback
9 Power Cord Connection
・ Two types of power source cords are available: For 115V &230V. Select the proper cord
according to the power source being used. The type of power source cord for 230V
should be specified when the system is ordered.
・ Only use grounded power sources. Failure to properly ground the unit may result in
electric shock, injury, fire and/or damage to the system components.
！
CAUTION
          ⑦       
Fig.7
Fig.6
・Pushontheclipsontheleftandrightofthefuseholder,andremovethefuseholderandfuses.
・Removethebadfuseorfusesandreplacewiththepropertypeandratedfuse.
・Thereisthefollowingfusedependingontheinputpowersourcevoltage.
T3.15AL(250V)OrderNo.:U195-152
・Replacethefuseholdercontainingthefusesintothefuseinletboxandmakesureitsnapsintoplace.

NSK ASTRO-E 400Z Specifications

General

Brand	NSK
Model	ASTRO-E 400Z
Category	Control Unit
Language	English
