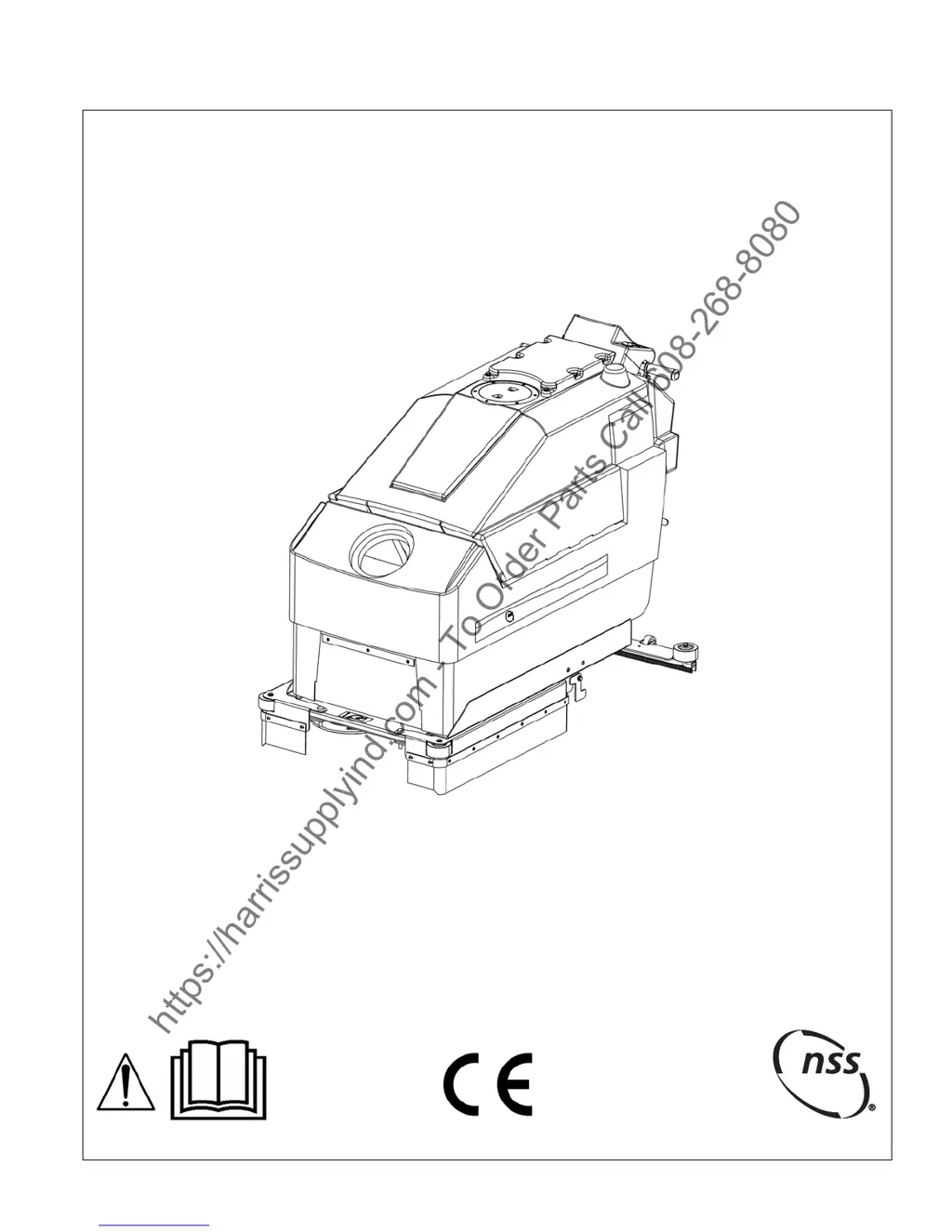

OPERATION MANUAL
WRANGLER 2625 DB
Original Instructions
Instructions D'origine
https://harrissupplyind.com - To Order Parts Call 608-268-8080

Questions and Answers

  • K
    kaylajamesAug 19, 2025
    Why NSS WRANGLER 2625 DB Floor Machine won't pick up water from the floor?
    • O
      omooreAug 20, 2025
      If your NSS Floor Machine isn't picking up water, several factors could be the cause. First, ensure the squeegee is lowered and the squeegee hose is properly reinstalled. Check that the vacuum motor switch is turned on and that the recovery tank isn't full, empty the tank if needed. The vacuum shut-off float might be stuck; clean the screen and remove any obstructions. Inspect the squeegee, squeegee hose, and standpipe for obstructions or damage, and address accordingly. Examine the over gasket for leaks, replacing it if necessary. Finally, make sure the recovery drain hose is correctly plugged.
  • A
    aliciachenAug 21, 2025
    How to troubleshoot runtime is less than when new in NSS Floor Machine?
    • M
      Melinda MooreAug 21, 2025
      If the runtime of your NSS Floor Machine is shorter than when it was new, consider these points: 1. Check the electrolyte level; if it's too low, add distilled water to cover the plates, charge, and then fill to the correct level. 2. Ensure the tops of the batteries are clean and dry, and clean the terminals. 3. Clean any dirty or damaged battery terminals and connectors, replace damaged cables, and check water and charge. 4. Charge the batteries fully until the charger indicates the charge cycle is complete. 5. If problems persist, have an authorized serviceman test the batteries for defects or wear.
  • P
    Peggy SanchezAug 25, 2025
    What to do if NSS WRANGLER 2625 DB will not pick up all of the water from the floor?
    • J
      Jacob KimAug 25, 2025
      If your NSS Floor Machine isn't picking up all the water, start by cleaning any debris from the squeegee blades. If the squeegee blade is worn or damaged, reverse or replace it. Also, check for obstructions or damage in the squeegee, squeegee hose, or standpipe. Ensure the squeegee angle is properly adjusted. Clean the vacuum filter if it's clogged.
  • M
    michael84Aug 26, 2025
    How to fix no solution flow in NSS WRANGLER 2625 DB Floor Machine?
    • J
      Juan ZimmermanAug 26, 2025
      If there is no solution flow in your NSS Floor Machine, here are some things to check: ensure the filter isn't clogged by cleaning it. Verify the solution valve is open. Look for any obstructions in the solution hose and remove them. Also, inspect the solution hose for kinks and remove them. Finally, make sure the solution tank is filled.
  • P
    Paul AnthonyAug 27, 2025
    Why NSS WRANGLER 2625 DB Floor Machine solution flow does not stop?
    • R
      richard74Aug 27, 2025
      If the solution flow on your NSS Floor Machine doesn't stop, the solution valve or linkage may be damaged; consider repairing or replacing the valve linkage. Also, check if the hose is disconnected or damaged; reinstall or replace the hose if needed.
  • K
    Kelly TaylorAug 29, 2025
    What to do if NSS Floor Machine cleaning is not even?
    • D
      David DeckerAug 29, 2025
      If the cleaning action of your NSS Floor Machine is uneven, the brush or pad may be worn and need replacement. Also, check if the hoses are kinked or obstructed, and repair or remove any obstructions.
  • M
    Melissa JimenezAug 31, 2025
    What to do if NSS WRANGLER 2625 DB Floor Machine does not run?
    • M
      mitchelljustinAug 31, 2025
      If your NSS Floor Machine isn't running, start by checking the battery cables to ensure they are securely connected and tightened. If that's not the issue, check for a tripped circuit breaker and reset it. Also, make sure the batteries are charged. If the battery charger was recently unplugged before completing a full charge cycle, wait up to five minutes and try again.
  • D
    David GarrisonSep 2, 2025
    How to troubleshoot NSS WRANGLER 2625 DB Floor Machine Sidekick pump not operating?
    • M
      mcurrySep 2, 2025
      If the Sidekick pump on your NSS Floor Machine is not operating, first ensure that the pump, solution valve, and brushes are turned on. If this does not solve the problem, remove the sensor and blow air (5psi [.03MPa] max) through it in the opposite direction as the arrow on the part to clear any obstruction.
  • S
    Steven LarsonSep 4, 2025
    Why NSS WRANGLER 2625 DB Floor Machine Sidekick operating, but not pumping chemical?
    • T
      Tiffany PriceSep 4, 2025
      If the Sidekick on your NSS Floor Machine is operating but not pumping chemical, check the fittings at the bottle cap for vacuum leaks. Also, check if the chemical bottle is empty and fill it if needed. If the squeeze tube is cracked, replace it.
  • B
    Brian Maldonado Jr.Sep 6, 2025
    What to do if my NSS Floor Machine will not pick up water from the floor?
    • R
      Richard MorganSep 6, 2025
      If the NSS Floor Machine won't pick up water, first, lower the squeegee and reinstall the hose if it's off. Then, turn the vacuum motor switch to 'on'. Also, empty the recovery tank if it's full. Check if the vacuum shut-off float is stuck and clean the screen to remove any obstructions. Remove any obstructions or repair damage in the squeegee, squeegee hose, or standpipe. Replace the over gasket if it's leaking. Ensure the recovery drain hose is properly plugged in.

Summary

Important Safety Instructions

Important Safety Instructions Battery Powered Equipment With On Board Chargers

Battery Installation

Procedures and precautions for safely installing batteries into the machine.

Battery Charging

Safety guidelines and procedures for charging the machine's batteries.

Important Safety Instructions Grounding Of Electrical Equipment - Battery Charger

Grounding Instructions

Guidelines for proper grounding of electrical equipment, especially the battery charger.

Preparing the Machine

Operating the Machine

Normal Cleaning

Step-by-step guide for performing standard floor cleaning operations.

Sidekick Chemical Dispenser Operation

Machine Maintenance

Daily Maintenance

Battery Electrolyte (Liquid) Level (Flooded only)

How to check and maintain battery electrolyte levels for flooded batteries.

Monthly Maintenance (100 hours)

Mandatory Periodic Maintenance

Battery Charger

Determining Your Battery Type

How to identify the correct battery type for charging.

Changing the Battery Type Setting

Operating the Battery Charger

Trouble-Shooting

No Solution Flow

Common causes and solutions for lack of solution flow.

Solution Flow Does Not Stop

Causes and solutions when solution flow fails to stop.

Will Not Pick Up Any Water From Floor

Troubleshooting steps for failure to pick up water from the floor.

Will Not Pick Up All Of The Water From The Floor

Causes and solutions for incomplete water pickup.

Runtime Is Less Than When New

Diagnosing and resolving reduced machine runtime.

Cleaning Is Not Even

Troubleshooting steps for uneven cleaning results.

Machine Does Not Run

Causes and solutions for the machine failing to operate.

Sidekick Not Operating

Troubleshooting issues with the Sidekick chemical dispenser.

Sidekick Operating, But Not Pumping Chemical

Diagnosing problems with the Sidekick pumping chemical.

NSS WRANGLER 2625 DB Specifications

General IconGeneral
BrandNSS
ModelWRANGLER 2625 DB
CategoryFloor Machine
LanguageEnglish
