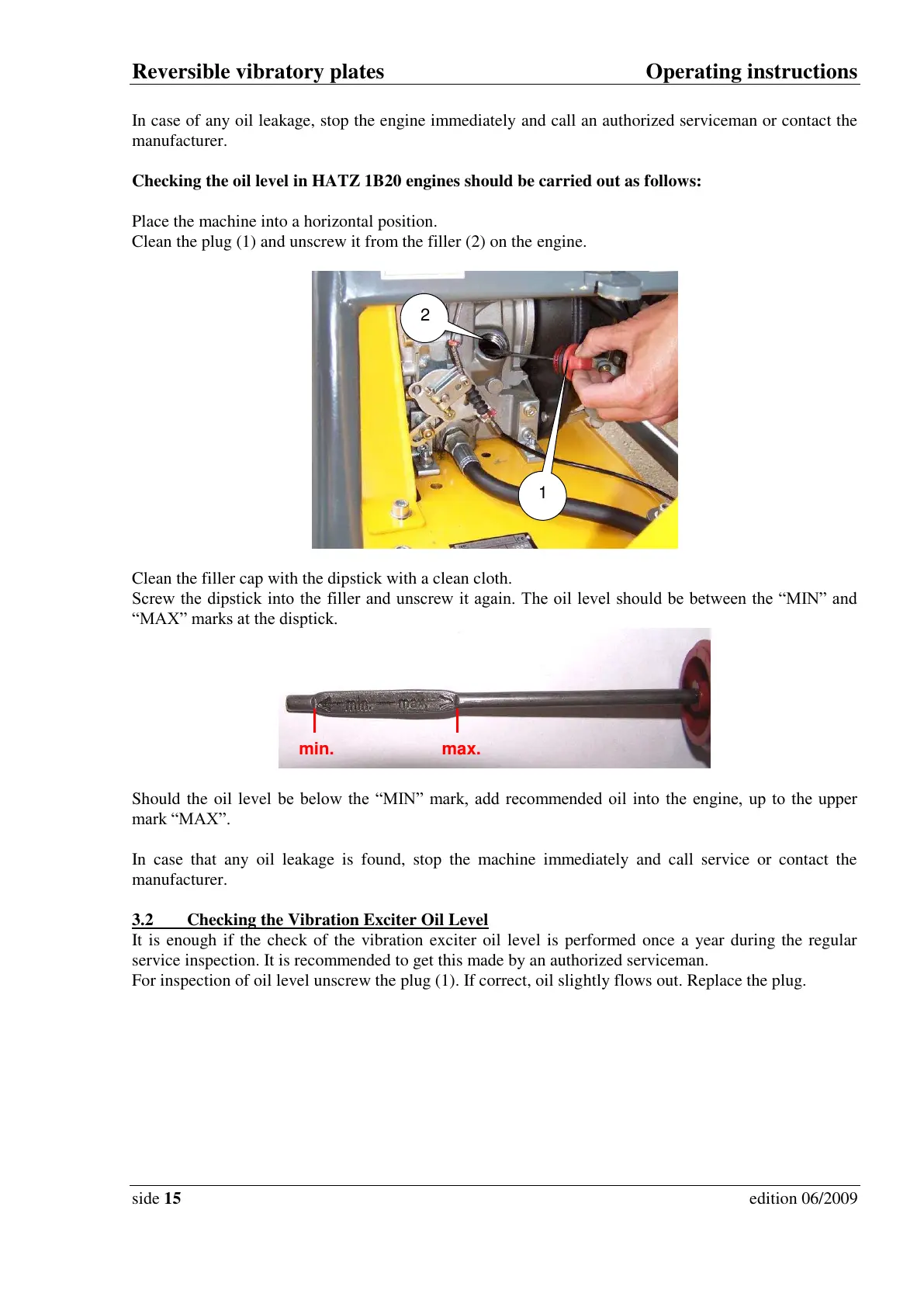

Reversible vibratory plates Operating instructions
side 15 edition 06/2009
In case of any oil leakage, stop the engine immediately and call an authorized serviceman or contact the
manufacturer.
Checking the oil level in HATZ 1B20 engines should be carried out as follows:
Place the machine into a horizontal position.
Clean the plug (1) and unscrew it from the filler (2) on the engine.
Clean the filler cap with the dipstick with a clean cloth.
Screw the dipstick into the filler and unscrew it again. The oil level should be between the “MIN” and
“MAX” marks at the disptick.
Should the oil level be below the “MIN” mark, add recommended oil into the engine, up to the upper
mark “MAX”.
In case that any oil leakage is found, stop the machine immediately and call service or contact the
manufacturer.
3.2 Checking the Vibration Exciter Oil Level
It is enough if the check of the vibration exciter oil level is performed once a year during the regular
service inspection. It is recommended to get this made by an authorized serviceman.
For inspection of oil level unscrew the plug (1). If correct, oil slightly flows out. Replace the plug.
