Reversible vibratory plates Operating instructions
side 12 edition 06/2009

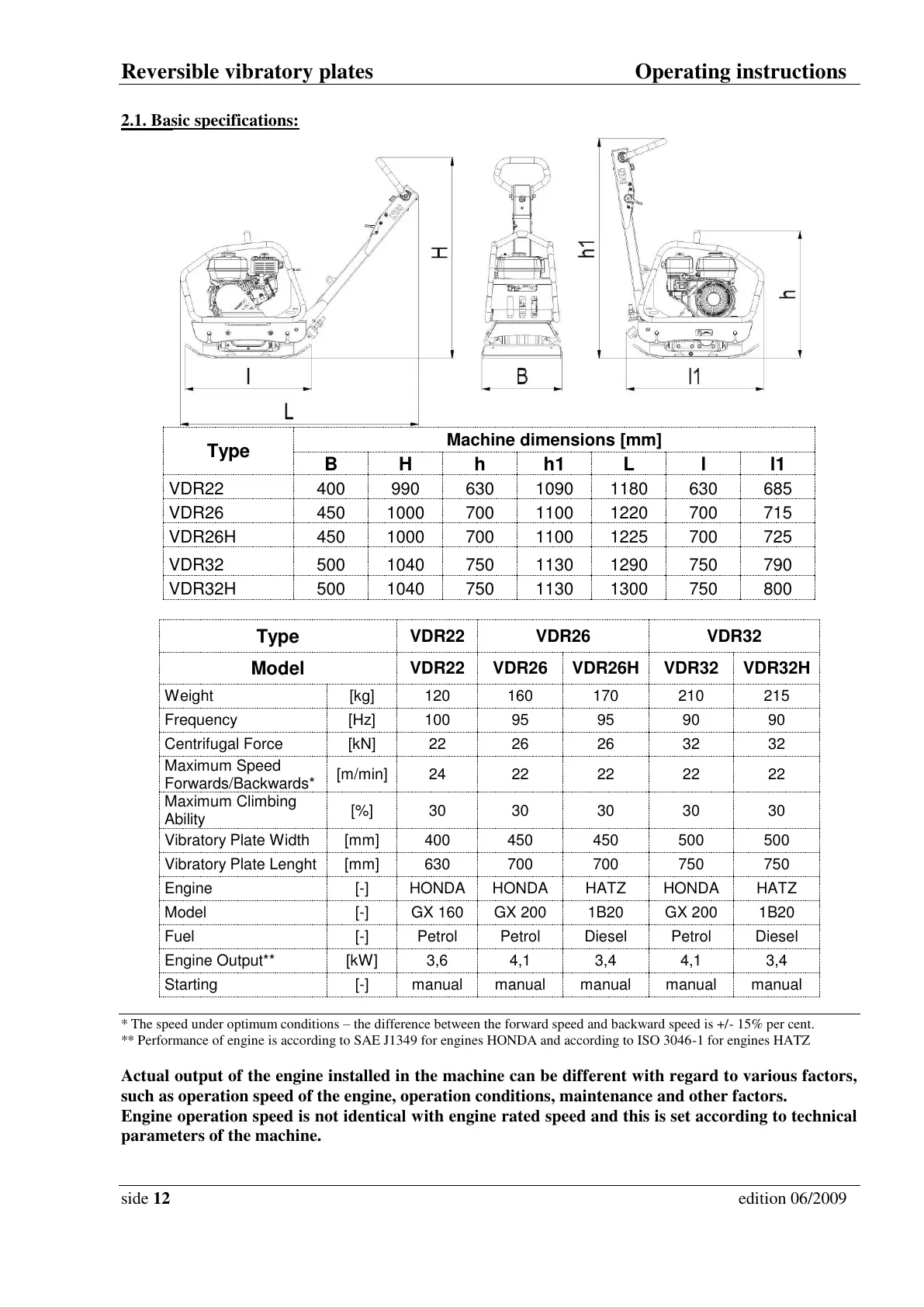

2.1. Basic specifications:
Type
Machine dimensions [mm]
B
H
h
h1
L
l
l1
VDR22
400
990
630
1090
1180
630
685
VDR26
450
1000
700
1100
1220
700
715
VDR26H
450
1000
700
1100
1225
700
725
VDR32
500
1040
750
1130
1290
750
790
VDR32H
500
1040
750
1130
1300
750
800
Type
VDR22
VDR26
VDR32
Model
VDR22
VDR26
VDR26H
VDR32
VDR32H
Weight
[kg]
120
160
170
210
215
Frequency
[Hz]
100
95
95
90
90
Centrifugal Force
[kN]
22
26
26
32
32
Maximum Speed
Forwards/Backwards*
[m/min]
24
22
22
22
22
Maximum Climbing
Ability
[%]
30
30
30
30
30
Vibratory Plate Width
[mm]
400
450
450
500
500
Vibratory Plate Lenght
[mm]
630
700
700
750
750
Engine
[-]
HONDA
HONDA
HATZ
HONDA
HATZ
Model
[-]
GX 160
GX 200
1B20
GX 200
1B20
Fuel
[-]
Petrol
Petrol
Diesel
Petrol
Diesel
Engine Output**
[kW]
3,6
4,1
3,4
4,1
3,4
Starting
[-]
manual
manual
manual
manual
manual
* The speed under optimum conditions – the difference between the forward speed and backward speed is +/- 15% per cent.
** Performance of engine is according to SAE J1349 for engines HONDA and according to ISO 3046-1 for engines HATZ
Actual output of the engine installed in the machine can be different with regard to various factors,
such as operation speed of the engine, operation conditions, maintenance and other factors.
Engine operation speed is not identical with engine rated speed and this is set according to technical
parameters of the machine.
