Reversible vibratory plates Operating instructions
side 13 edition 06/2009
2.2. Lubricants
- Engine Oil 15W-40 filling - HONDA GX - 0,6 l
filling - HATZ 1B20 - 0,9 l
- Oil in the Vibrator 15W-40
VDR 22, 26 a 26H, 32 a 32H Volume: 0,4 l
- Hydraulic Oil OH-HV 68
VDR 22, 26 a 26H, 32 a 32H Volume: 0,2 l
For HONDA engines use brand-name oils of the SAE 15W/40 viscosity class. The performance
classification should be e.g. API SG/CF 4 or API SG/CE. See recommendations of HONDA.
For HATZ engines, it is recommended to use oils of persormance classification API - CD/CE ú CF/CF-
4/CG-4.
For vibrators use brand-name oils of viscosity class SAE 15W-40 and performance classification API
SJ/CF.

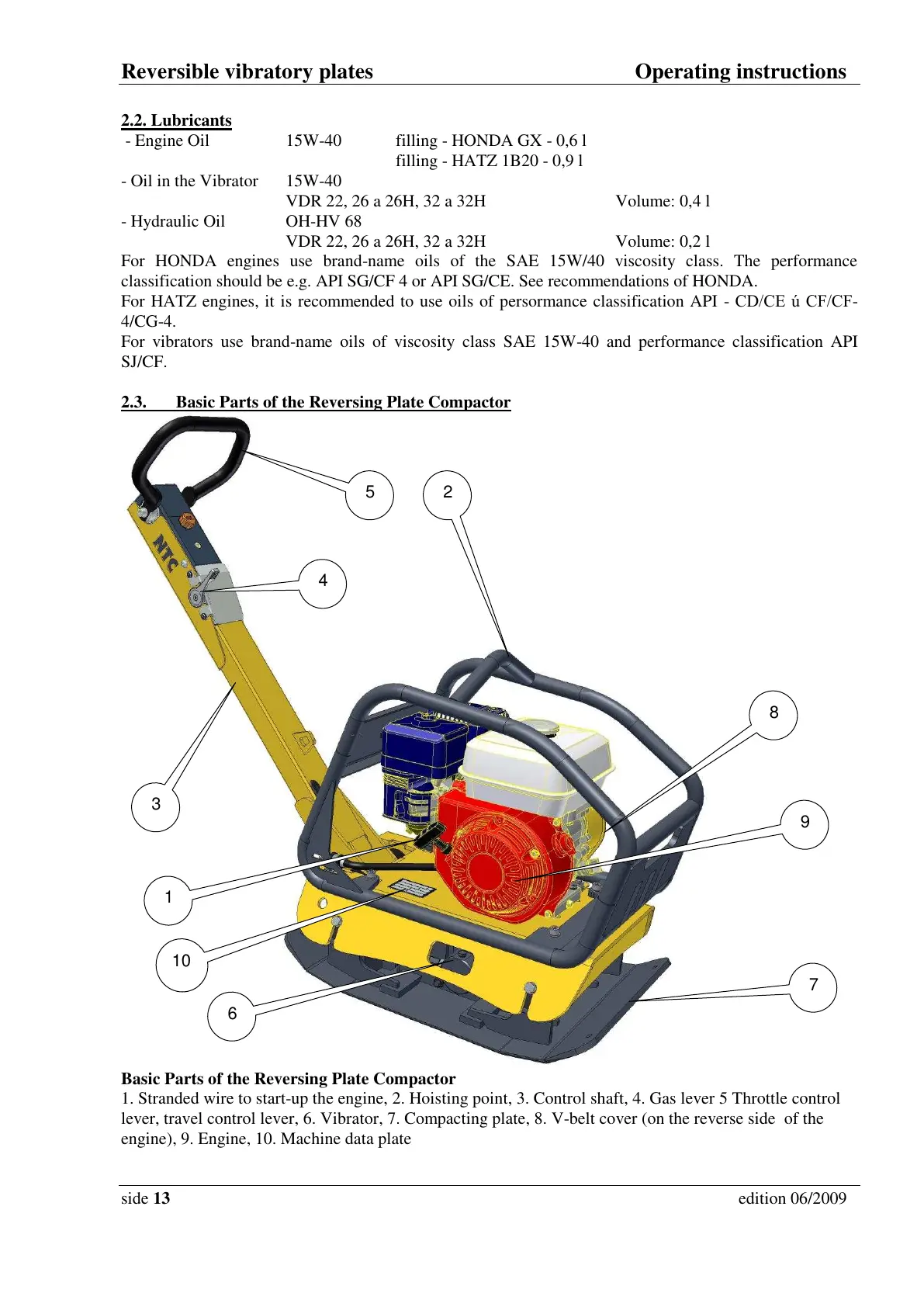

2.3. Basic Parts of the Reversing Plate Compactor
Basic Parts of the Reversing Plate Compactor
1. Stranded wire to start-up the engine, 2. Hoisting point, 3. Control shaft, 4. Gas lever 5 Throttle control
lever, travel control lever, 6. Vibrator, 7. Compacting plate, 8. V-belt cover (on the reverse side of the
engine), 9. Engine, 10. Machine data plate
8
4
1
2
3
5
6
7
9
10
