Numark iDJ User Manual

2

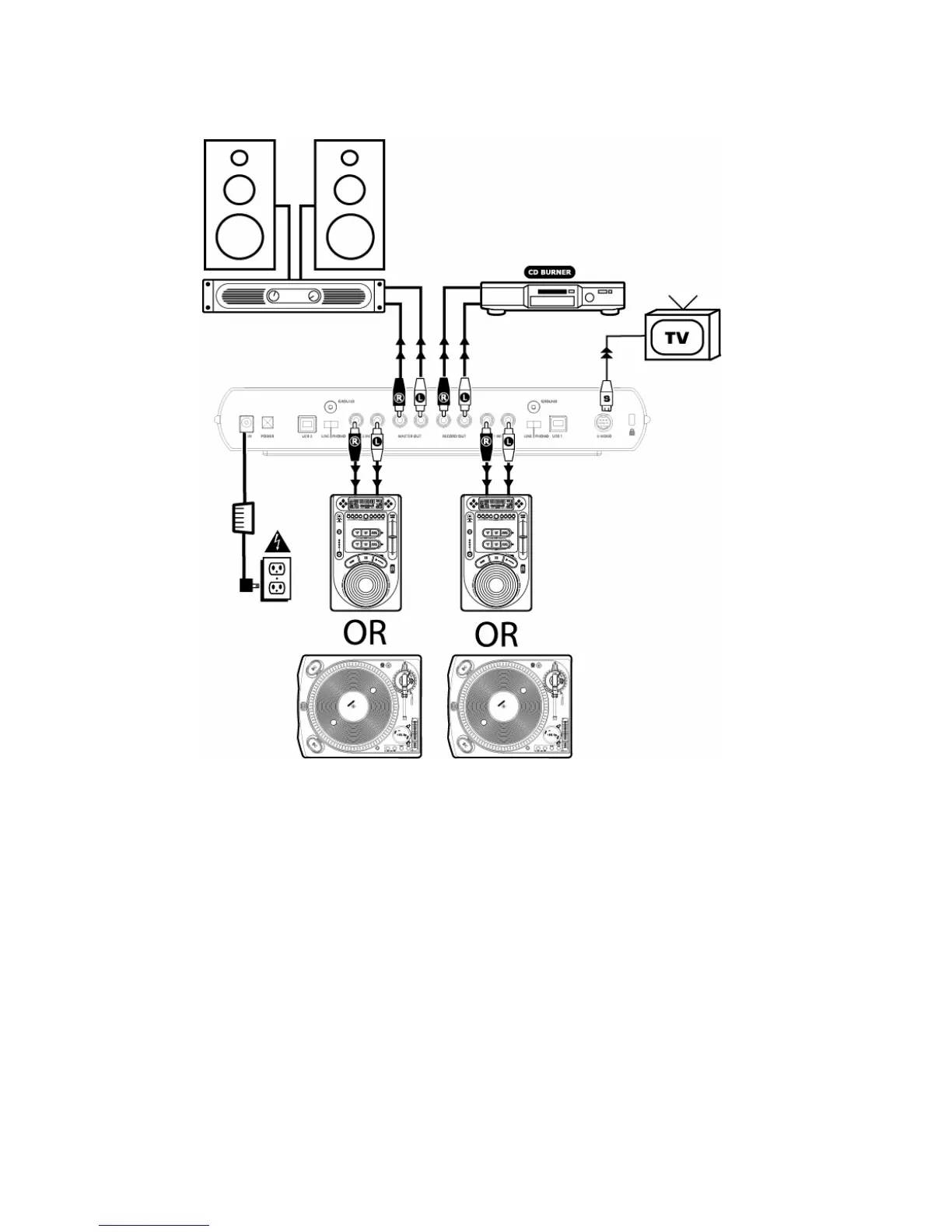

Quick Connection Diagram
Quick Setup Guide
1. Make sure all items listed on the front of this guide are included in the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT
3. Study this setup diagram.
4. Place the mixer in an appropriate position for operation.
5. Make sure all devices are turned off and all faders are at zero.
6. Connect all input sources as indicated in the diagram.
7. Connect the outputs to the power amplifier(s), monitors and/or projectors.
8. Plug your mixer and other devices into AC power.
9. Switch everything on in the following order:
• Audio input sources (i.e. iPods, CD players) Your mixer
• Last, any amplifiers, televisions, monitors, projectors, etc.
10. When turning off, always reverse this operation by powering down in the following order:
• Any amplifiers, televisions, monitors, projectors, etc.
• Your mixer.
• Last, audio input sources.
11. Go to www.numark.com for product registration.

Numark iDJ Specifications

Power

power adapter input	120VAC 60Hz 32.4W
power adapter output	9V AC 2800mA
power adapter type	AC-AC Class 2 Transformer

Ports & Interfaces

input ports	2 iPod with bottom connector, 2 Phono/Line Switchable, 1 microphone with tone control, 2 Ground posts for turntables
output ports	Master RCA, Line Level (Record) RCA, 1/8” Headphone (mini jack), 1/4” Headphone, 1 S-Video Output
miscellaneous ports	2 USB 2.0 data connection ports to each iPod Docking Connector, Kensington Security Lock compatible

Weight and Dimensions

dimensions with knobs	11.5” x 10.75” x 2.5” (29cm x 27cm x 6cm)
weight of iDJ	4.5 lbs (2 kg)
weight of power adapter	1.5 lbs (0.7 kg)
