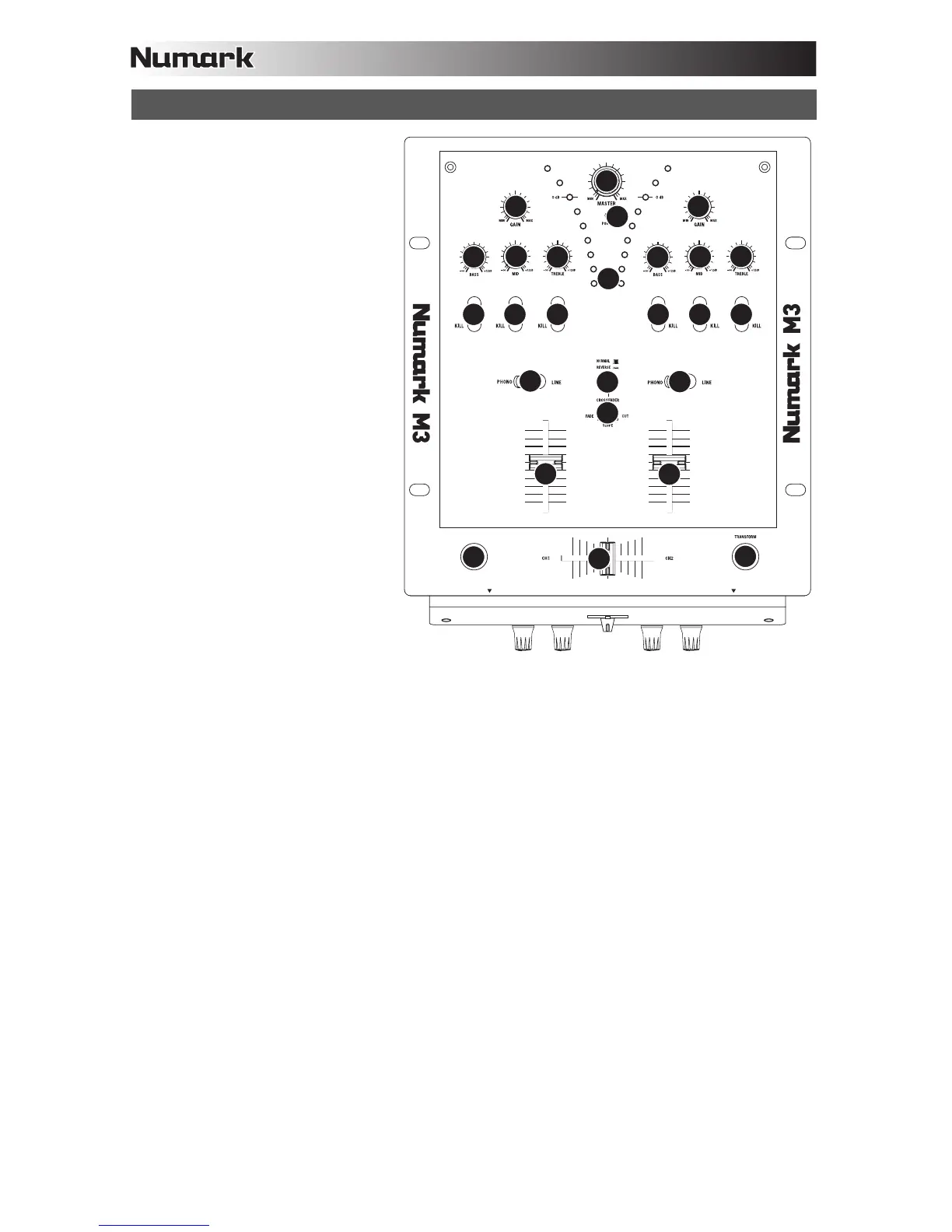

TOP PANEL FEATURES
1. POWER LED – Illuminates when
the mixer is on.
2. MASTER FADER – Adjusts the
output volume of the Program mix.
3. STEREO LEVEL INDICATOR –
Monitors the audio level of the
Program mix.
4. INPUT SELECTOR – Selects the
input source to be routed to the
corresponding channel. Input
jacks are located on the rear
panel.
5. CHANNEL GAIN – Adjusts the
channel’s audio gain level, pre-
fader and pre-EQ.
6. CHANNEL BASS – Adjusts the
low (bass) frequencies of the
corresponding channel.
7. CHANNEL MID – Adjusts the mid-
range frequencies of the
corresponding channel.
8. CHANNEL TREBLE – Adjusts the
high (treble) frequencies of the
corresponding channel.
9. EQ KILL SWITCHES – Eliminates
the bass, mid, or high frequencies
of the corresponding channel.
10. CHANNEL FADER – Adjusts the
audio level of the corresponding
channel.
11. CROSSFADER – Blends audio between Channels 1 and 2. Sliding the crossfader to the left plays
Channel 1. Sliding to the right plays Channel 2.
Note: The crossfader is user-replaceable if it should ever wear out. Simply remove the facepanel, then
remove the screws holding it in position. Replace the fader with a quality authorized replacement from
your local Numark retailer only.
12. CROSSFADER (CF) SLOPE – Adjusts the slope of the crossfader curve. Flip this switch to the left for
a smooth fade (mixing) or to the right for a sharp cut (scratching).
13. CROSSFADER (CF) MODE – Press this button to reverse the crossfader assignments of Channels 1
and 2.
14. TRANSFORM BUTTONS – Plays only the audio from the corresponding channel when button is held
down. Release button to revert back to previous mix.
