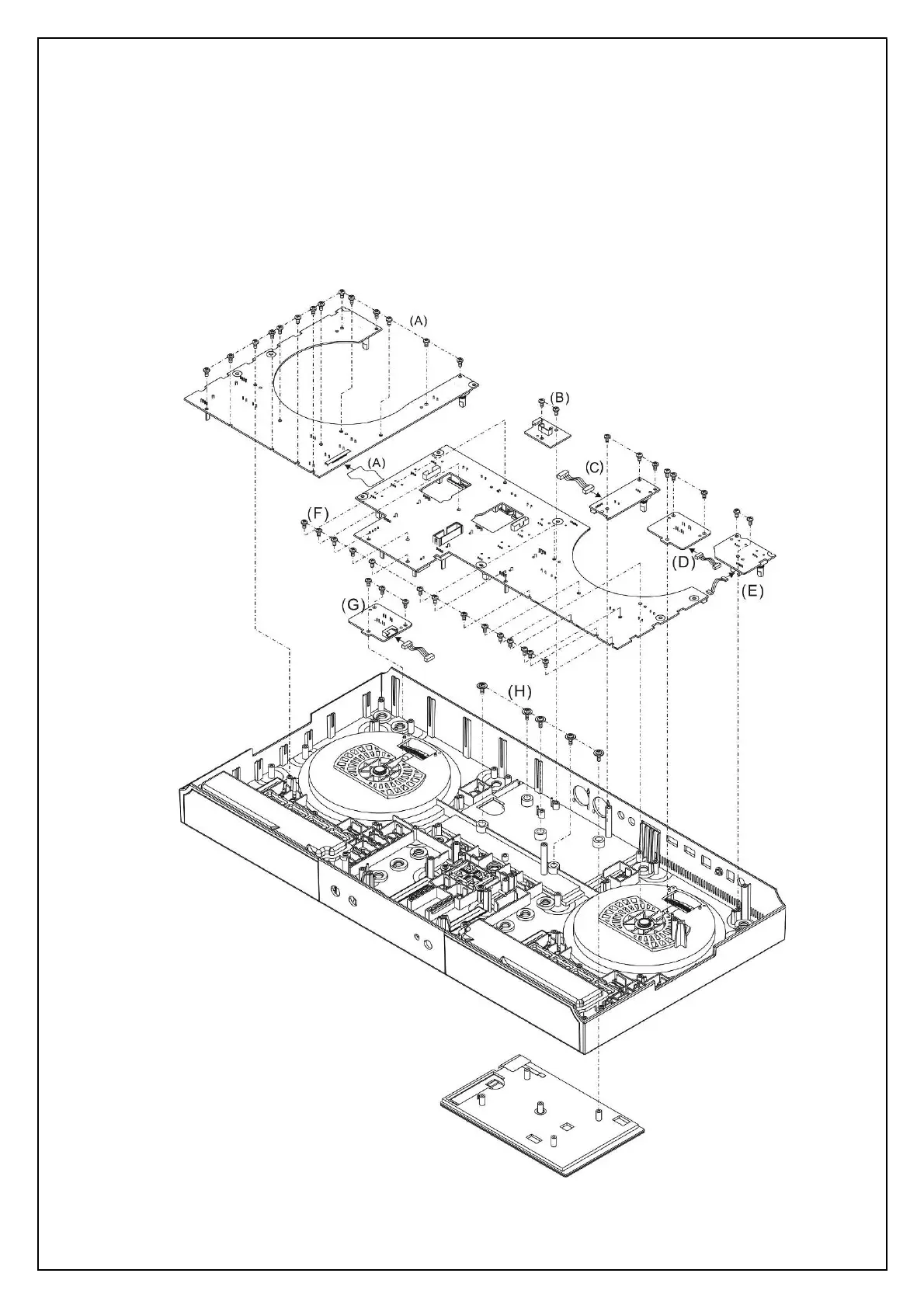

3. REMOVAL OF TOP LEFT&RIGHT (DIP) PCB AND SENSOR PCB AND TOUCH PCB AND FILTER1 PCB
AND CUE PCB. (Fig.3)
(A) REMOVE THE 14 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP RIGHT PCB DIP
ASSEMBLY .
(B) REMOVE THE 2 PCS SCREWS BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.
(C) REMOVE THE 3 PCS SCREWS
AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP LEFT FILTER1 PCB DIP
ASSEMBLY.
(D) REMOVE THE 3 PCS SCREWS
AND 1 PC CONNECTOR BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.
(E) REMOVE THE 2 PCS SCREWS
AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP LEFT CUE PCB DIP
ASSEMBLY.
(F) REMOVE THE 14 PCS SCREWS BEFORE REMOVAL OF TOP LEFT PCB DIP ASSEMBLY.
(G) REMOVE THE 3 PCS SCREWS
AND 1 PC CONNECTOR BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.
(H) REMOVE THE 5 PCS SCREWS BEFORE REMOVAL OF 7 INCH CTP+TFT ASSEMBLY.
(Fig.3)
