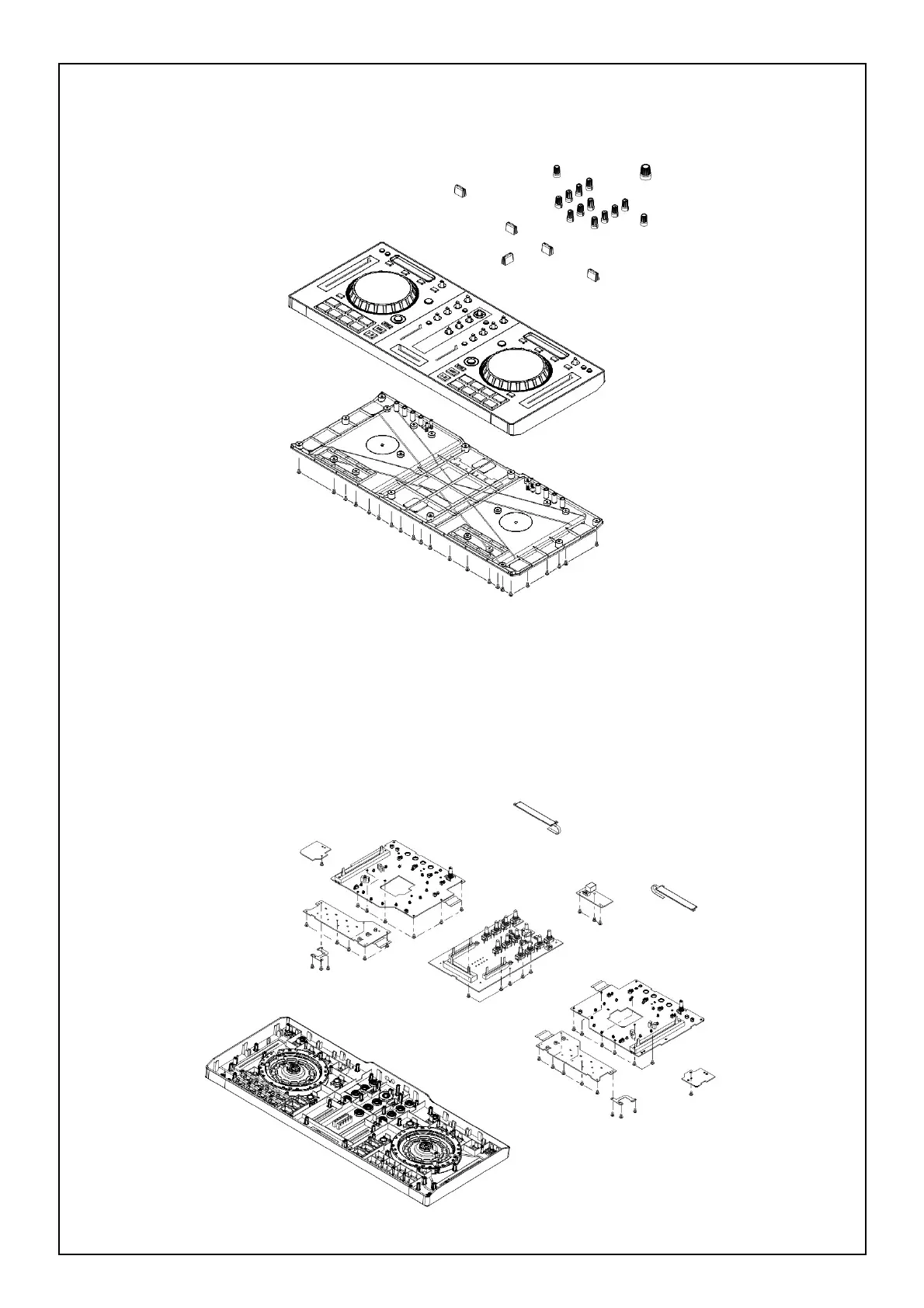

1. REMOVAL OF THE BOTTOM CHASSIS. (Fig1)
(A) TAKE OUT THE 5 PCS VR CAP AND 14 PCS KNOB
(B) TAKE OUT THE 22 PCS SCREWS
(C) TAKE OUT THE BOTTOM CHASSIS
Fig.1
2. REMOVAL PCB ASSEMBLY. (Fig2)
(A) TAKE OUT THE 3 PCS SCREWS AND USB PCB ASSEMBLY, THEN TAKE OUT THE 1PCS CONNECTOR
(B) TAKE OUT THE 5 PCS SCREWS AND MAIN PCB ASSEMBLY, THEN TAKE OUT THE 4PCS CONNECTOR
(C) TAKE OUT 6 PCS SCREWS AND 2 PCS SIGNAL PLATE
(D) TAKE OUT THE 22 PCS SCREWS, THEN TAKE OUT THE LEFT/RIGHT FUNCTION PCB ASSEMBLY AND
LEFT/RIGHT PAD PCB ASSEMBLY
(E) TAKE OUT THE 2 PCS SCREWS THEN TAKE OUT THE MIC AND HP PCB ASSEMBLY
(F) TAKE OUT THE 2 PCS FSR PCB ASSEMBLY
Fig.2
(A)
(C)
(B)
(A)
(B)
(C)
(D)
(D)
(E)
(F)
(E)
(C)
(D)
(D)
(F)
