Features

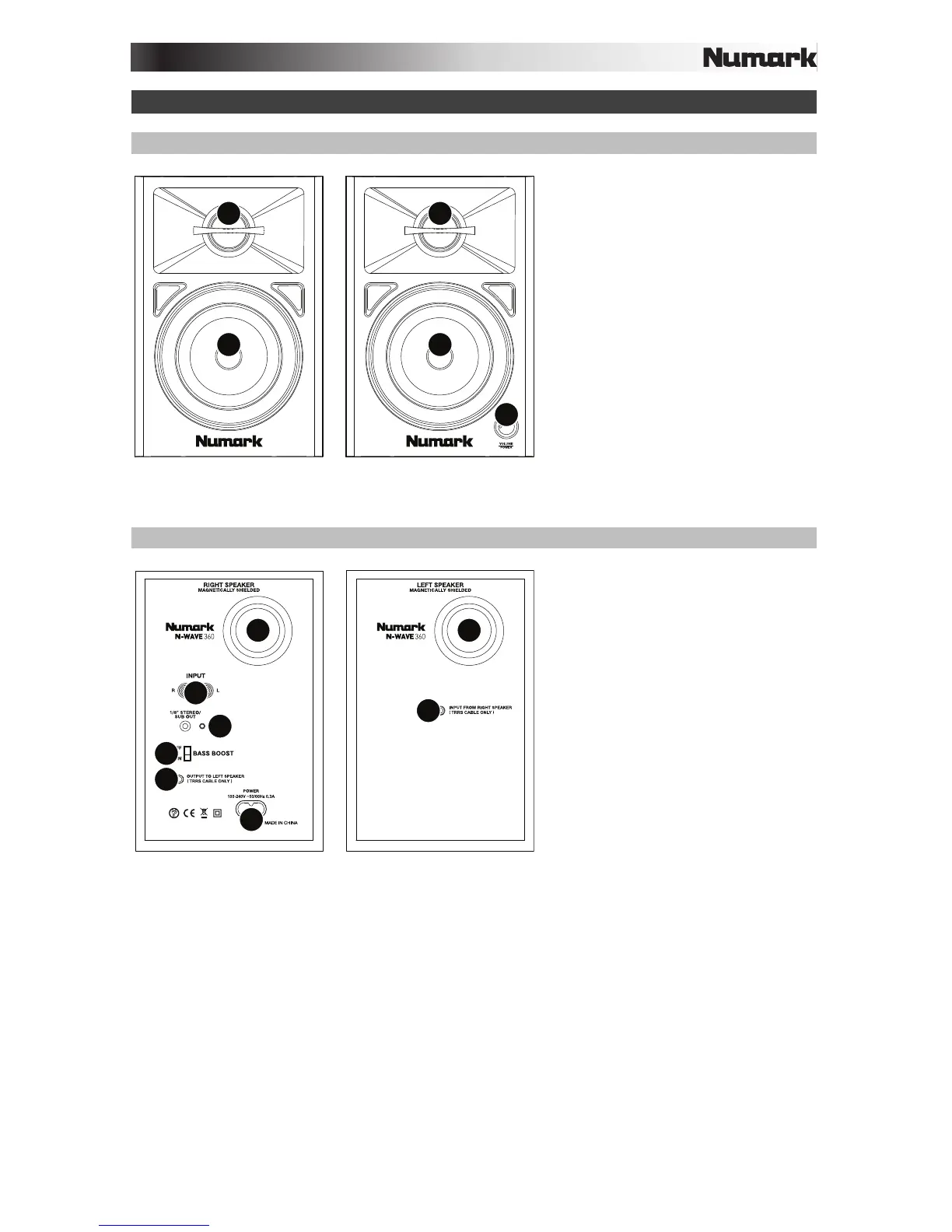

Front Panel
1. Tweeter: This outputs the high
frequencies.
2. Woofer: This outputs the low
frequencies.
3. Vol/Power: This knob is used
to turn the speakers on and
adjust their volume. To turn on,
simply turn up the knob. You
will feel a click when the
speakers turn on. A LED on the
left side of the speaker will
illuminate. To turn off, simply
turn the volume all the way
down; the LED will turn off to
let you know that the speakers
are off.
Rear Panel
1. Power Input: Use a power
cable (included) to connect this
to a power outlet.
2. Output to Left Speaker: This
is the audio connection to the
left speaker. Use the included
1/8" TRRS cable to connect
the right speaker to the left
speaker.
3. Input from Right Speaker:
This is the audio connection
from right speaker. Use the
included 1/8" TRRS cable to
connect the left speaker to the
right speaker.
4. Rear Port: The rear port enhances the bass generated by the woofer, increasing the low
frequencies. Make sure these ports are not obstructed since this will adversely affect
bass response.
5. Input (RCA): Connect your audio interface, mixer, etc. to this input, using a standard
RCA cable.
6. Stereo/Sub Out: This is a full-range audio output which can be connected to a mixer,
powered speakers, or an external recording device.
7. Bass Boost: This two-position switch allows you to boost the speakers' bass
frequencies.
11
22
3
1
2
3
4
5
6
7
4
To Next Page
