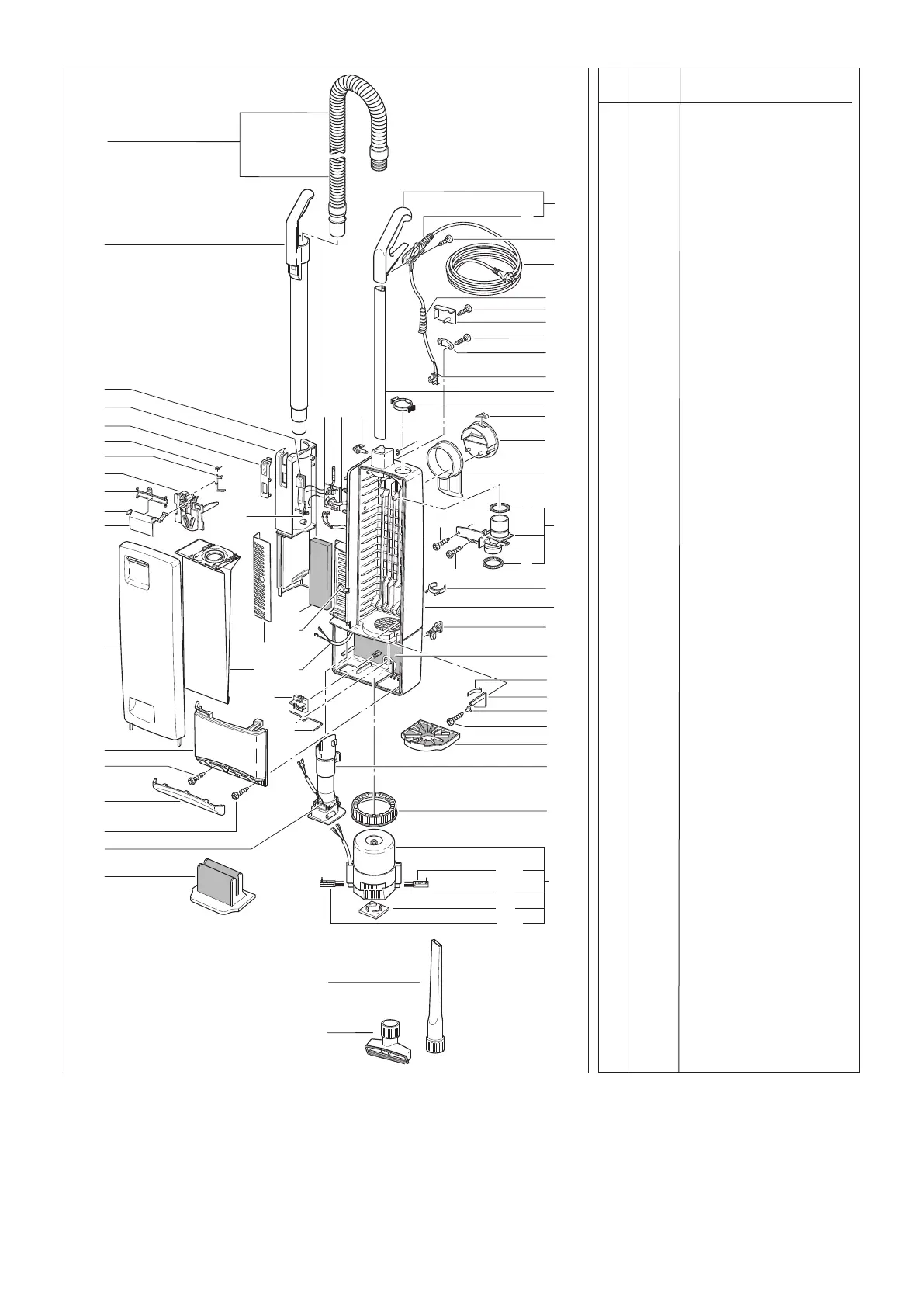

7. Spare parts list numatic 370/470
Pos. Art.-No. Description (ENG)
24
34
58
32
33
31
27
9
54
47
48
40
49
50
52
51
38
37
39
35
46
44
25
58
58
45
60
8
6
28
29
30
28a
28a
20
11
58
58
21
26
42
61
1936
41
22
1 1037 EH Handle grip, compl. incl. Pos.2
2 1596 HG Handle cover with grommet
3 0127 ER Screw M 4x10
4 1870 dg Cable with Contour-plug
5 1848 Handle cpl.
6 1831 hg Dust bag housing
7 1835 dg Internal cover 370/470 d-grey
8 5289 Seal
9 5043 Seal
10 5424 ER Retaining ring
11 1823 hg Attachment clip
12 5359 HE Grommet 10pcs, light grey
13 0502 Terminal block 2-wire
14 1030 UL Cable clamp
15 1812 hg Cover
16 1814 hg Carryng handle
17 5146 Stop spring
18 1813 hg Cable hook
19 1859 dg Handle catch
20 0161 ER Clip 4
21 0850 dg Locking catch
22 1811 Locking rod
23 1012 N Terminal block compl.
24 1807 hg Connector
25 1836 Female contakt holder 220 -240V
26 1851 Sound insulation
27 1047 Vac motor seal
28 1844 Vac motor 230V/1000W
incl.Pos. 29+30
28a 05118 S Carbon brush set 230/240V
29 1821 Motor cover 220 -240V
30 1822-1 Motor support
31 1027 Leaf spring
32 1073 Clamp
33 1824 Connecting rod
34 1825 Vacuum motor filter
35 1934 ER Print.circ.board 230/240V
36 1860 Fitting
37 1852 hg Suction pipe cover light grey
38 1869 hg Lens, bag light indicator
39 1830 dg Switch button dark grey
40 1862 Spring
41 1833 Internal cable (230/240V)
42 1878 Exhaust filter
43 1802 hg Exhaust filter cover
44 1853 NU Motor cover light grey
45 1804 hg Dust bag housing bumper
46 1846 hg Front cover complete light grey
47 1818 dg Cover release dark grey
48 6040 Seal, cover release
49 1819 Bearing cover
50 1847 Bag holder, compl.
51 5091 Safety catch spring
52 1817 Safety catch
53 5093 JE Dust bag/pack 1 pcs.
54 5045 dg Extension tube dark grey
55 5040 sb Hose compl.
56 1491 dg Upholstery nozzle dark grey
57 1092 dg Crevice nozzle dark grey
58 0102 ER Screw F 3,9x13
59 0103 ER Screw F 3,9x16
60 1875 Micro/Hosp.-filter
61 1884 hg Retaining button
53
23
43
57
56
55
1
2
4
3
58
12
15
5
10
17
16
18
59
14
13
7
