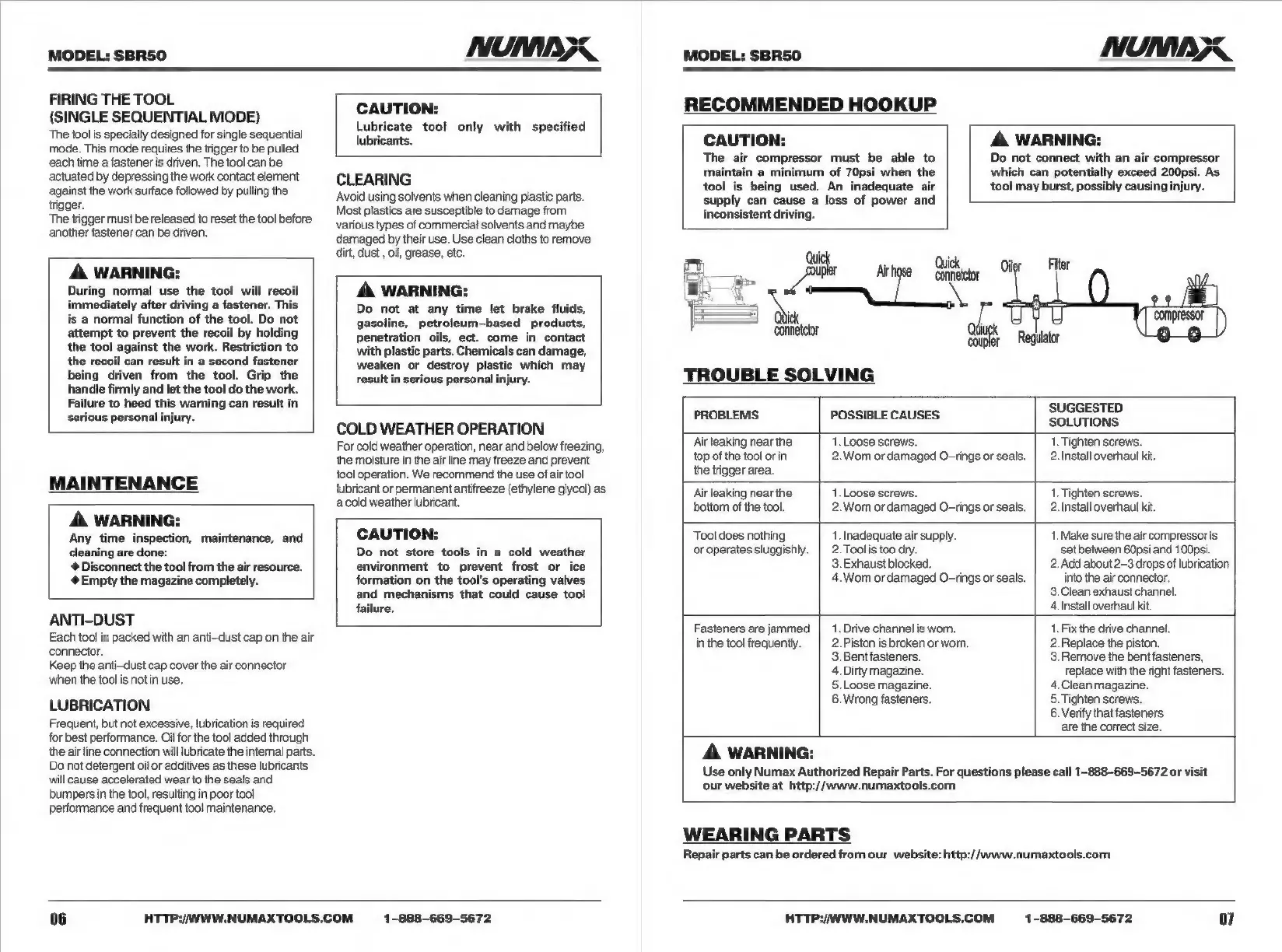

Numax SBR50 - Recommended Hookup; Wearing Parts

MODEL: SBR50
NUMA.
FIRING THE TOOL
(SINGLE SEQUENTIAL MODE)
The tool is specially designed for single sequential
mode. This mode requires the trigger to be pulled
each time a fastener is driven. The tool can Бе
actuated by depressing the work contact element
against the work surface followed by pulling the
trigger.
The trigger must be released to reset the tool before
another fastener can be driven.
A WARNING:
During normal use the tool will recoil
immediately after driving a fastener. This
is a normal function of the tool. Do not
attempt to prevent the recoil by holding
the tool against the work. Restriction to
the recoil can result in a second fastener
being driven from the tool. Grip the
handle firmly and let the tool do the work.
Failure to heed this warning can result in
serious personal injury.
MAINTENANCE
А WARNING:
Any time inspection, maintenance, and
cleaning are done:
Disconnect the tool from the air resource.
Empty the magazine completely.
ANTI-DUST
Each tool is packed with an anti-dust cap on the air
connector.
Keep the anti~dust cap cover the air connector
when the tool is not in use.
LUBRICATION
Frequent, but not excessive, lubrication is required
for best performance. Oil for the tool added through
the air line connection will lubricate the internal parts.
Do not detergent oil or additives as these lubricants
will cause accelerated wear to the seals and
bumpers in the tool, resulting in poor tool
performance and frequent tool maintenance.
CAUTION:
Lubricate tool only with specified
lubricants.
CLEARING
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from
various types of commercial solvents and maybe
damaged by their use. Use clean cloths to remove
dirt, dust , oil, grease, etc.
А WARNING:
Do not at any time let brake fluids,
gasoline, petroleum-based products,
penetration oils, ect. come in contact
with plastic parts. Chemicals can damage,
weaken or destroy plastic which may
result in serious personal inji
COLD WEATHER OPERATION
For cold weather operation, near and below freezing,
the moisture in the air line may freeze and prevent
tool operation. We recommend the use of air tool
lubricant or permanent antifreeze (ethylene glycol) as
a cold weather lubricant.
CAUTION:
Do not store tools in a cold weather
environment to prevent frost or ice
formation on the tool's operating valves
and mechanisms that could cause tool
failure.
06 HTTP:/WWW.NUMAXTOOLS.COM 1-888-669-5672
MODEL: SBR50
МОЛЛУ
RECOMMENDED HOOKUP
CAUTION:
inconsistent driving.
The air compressor must be able to
maintain a minimum of 70рві when the
tool is being used. An inadequate air
supply can cause a loss of power and
А WARNING:
Do not connect with an air compressor
which can potentially exceed 200рсі. As
tool may burst, possibly causing injury.
я.
ior
=
Дь
Quik
ах
Oiler
Filter
compressor
З
И
Т
Regulator
TROUBLE
SOLVING
PROBLEMS
POSSIBLE
CAUSES
ЗЫВБЕТЕР
Air leaking near the
top of the tool or in
the trigger area.
1. Loose screws.
2.Wom or damaged O-rings or seals.
1. Tighten screws.
2. Install overhaul kit.
Air leaking near the
bottom of the tool.
1, Loose screws.
2.Wom or damaged O-rings or seals.
1. Tighten screws.
2. Install overhaul kit.
Tool does nothing
or operates sluggishly.
1. Inadequate air supply.
2.Toolis too dry.
3. Exhaust blocked.
4.Wom or damaged O-rings or seals.
1. Make sure the air compressor is
set between 60psi and 100psi.
2.Add about 2-3 drops of lubrication
into the air connector.
3.Clean exhaust channel.
4 Install overhaul kit.
Fasteners are jammed
in the tool frequently.
1. Drive channel is wom.
2. Piston is broken or wom.
3.Bent fasteners.
4. Dirty magazine.
5. Loose magazine.
6.Wrong fasteners.
1.Fix the drive channel.
2.Replace the piston.
3. Remove the bent fasteners,
replace with the right fasteners.
4.Clean magazine.
5. Tighten screws.
6. Verify that fasteners
are the correct size.
А WARNING:
Use only Numax Authorized Repair Parts. For questions please call 1-888-669-5672 or visit
our website at http://www.numaxtools.com
WEARING PARTS
Repair parts can be ordered from our website: http://www.numaxtools.com
