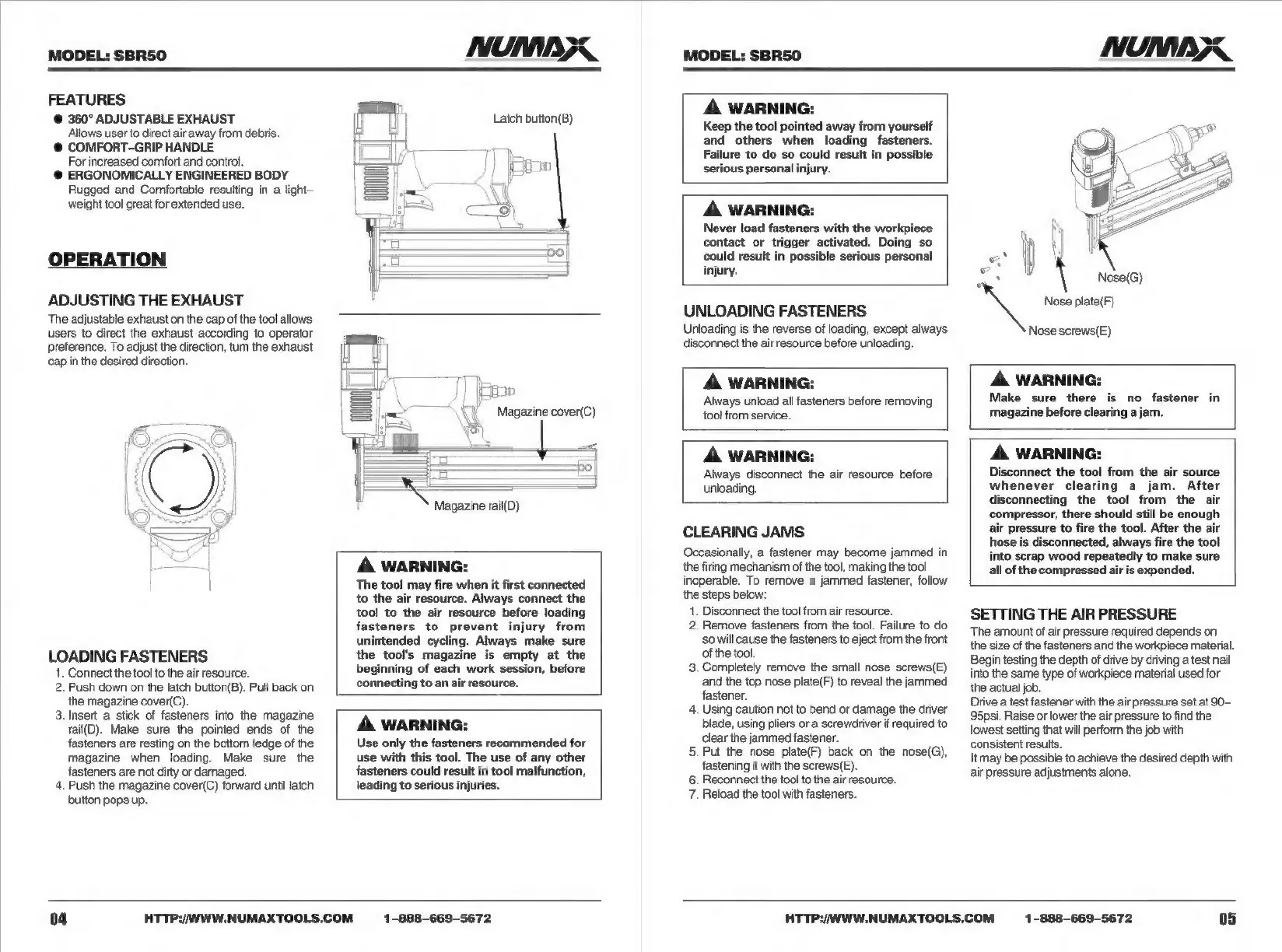

Numax SBR50 - Operation

MODEL: SBR50
МОЛЛУ
FEATURES
© 360° ADJUSTABLE EXHAUST
Allows user to direct air away from debris.
© COMFORT-GRIP HANDLE
For increased comfort and control.
© ERGONOMICALLY ENGINEERED BODY
Rugged and Comfortable resulting in a light-
weight tool great for extended use.
OPERATION
ADJUSTING THE EXHAUST
The adjustable exhaust on the cap of the tool allows
users to direct the exhaust according to operator
preference. To adjust the direction, tum the exhaust
cap in the desired direction.
LOADING FASTENERS
1. Connect the tool to the air resource.
2. Push down on the latch button(B). Pull back on
the magazine cover(C).
3. Insert a stick of fasteners into the magazine
rail(D). Make sure the pointed ends of the
fasteners are resting on the bottom ledge of the
magazine when loading. Make sure the
fasteners are not dirty or damaged.
4. Push the magazine cover(C) forward until latch
button pops up.
Latch button(B)
| Bon
Xt
| poe
(41 Magazine cover(C)
1
yo)
Magazine rail(D)
А WARNING:
The tool may fire when it first connected
to the air resource. Always connect the
tool to the air resource before loading
fasteners to prevent injury from
unintended cycling. Always make sure
the tool's magazine is empty at the
beginning of each work session, before
connecting to an air resource.
A WARNING:
Use only the fasteners recommended for
use with this tool. The use of any other
fasteners could result in tool malfunction,
leading to serious injuries.
04 HTTP:/WWW.NUMAXTOOLS.COM 1-888-669-5672
MODEL: SBR50
А WARNING:
Keep the tool pointed away from yourself
and others when loading fasteners.
ге to do so could result in possible
serious personal injury.
А WARNING:
Never load fasteners with the workpiece
contact or trigger activated. Doing so
could result in possible serious personal
injury.
UNLOADING FASTENERS,
Unloading is the reverse of loading, except always
disconnect the air resource before unloading.
А WARNING:
Always unload all fasteners before removing
tool from service.
Nose(@)
Nose plate(F)
Nose screws(E)
А WARNING:
Make sure there is no fastener in
magazine before clearing а jam.
А WARNING:
Always disconnect the air resource before
unloading.
CLEARING JAMS
Occasionally, a fastener may become jammed in
the firing mechanism of the tool, making the tool
inoperable. To remove a jammed fastener, follow
the steps below:
Disconnect the tool from air resource.
Remove fasteners from the tool. Failure to do
so will cause the fasteners to eject from the front
of the tool.
Completely remove the small nose screws(E)
and the top nose plate(F) to reveal the jammed
fastener.
. Using caution not to bend or damage the driver
blade, using pliers or a screwdriver if required to
clear the jammed fastener.
5. Put the nose plate(F) back on the пове(б),
fastening it with the screws(E).
Reconnect the tool to the air resource.
Reload the tool with fasteners.
о N=
a
мо
А WARNING:
Disconnect the tool from the air source
whenever clearing a jam. After
disconnecting the tool from the air
compressor, there should still be enough
air pressure to fire the tool. After the air
hose is disconnected, always fire the tool
into scrap wood repeatedly to make sure
all of the compressed air is expended.
SETTING THE AIR PRESSURE
The amount of air pressure required depends on
the size of the fasteners and the workpiece material.
Begin testing the depth of drive by driving a test nail
into the same type of workpiece material used for
the actual job.
Drive a test fastener with the air pressure set at 90-
95psi. Raise or lower the air pressure to find the
lowest setting that will perform the job with
consistent results.
It тау be possible to achieve the desired depth with
air pressure adjustments alone.
HTTP:/WWW.NUMAXTOOLS.COM
1-888-669-5672 05
