If you need advice, contact the Mitre 10 store
where you purchased your shed.
If you choose to vary from these
instructions your warranty will be impaired.
1
IMPORTANT!
• Remove the swarf (drill filings) from the panels as you assemble them.
• All components are cut to length. Do not cut any parts unless instructed.
• Fixings through the inside of the channels into the sheeting are just as
important as fixings from the outside.
RIBS AND PANS
• Generally most fixings are spaced at 300mm apart.
• Keep the fixings in the pans as close to the ribs as possible for added strength.
• Ribs will always protrude to the outside of the shed.
• Extra internal fixings are strongly recommended in high wind areas.
PAN
RIB
DIAGRAM 1 DIAGRAM 2 DIAGRAM 3

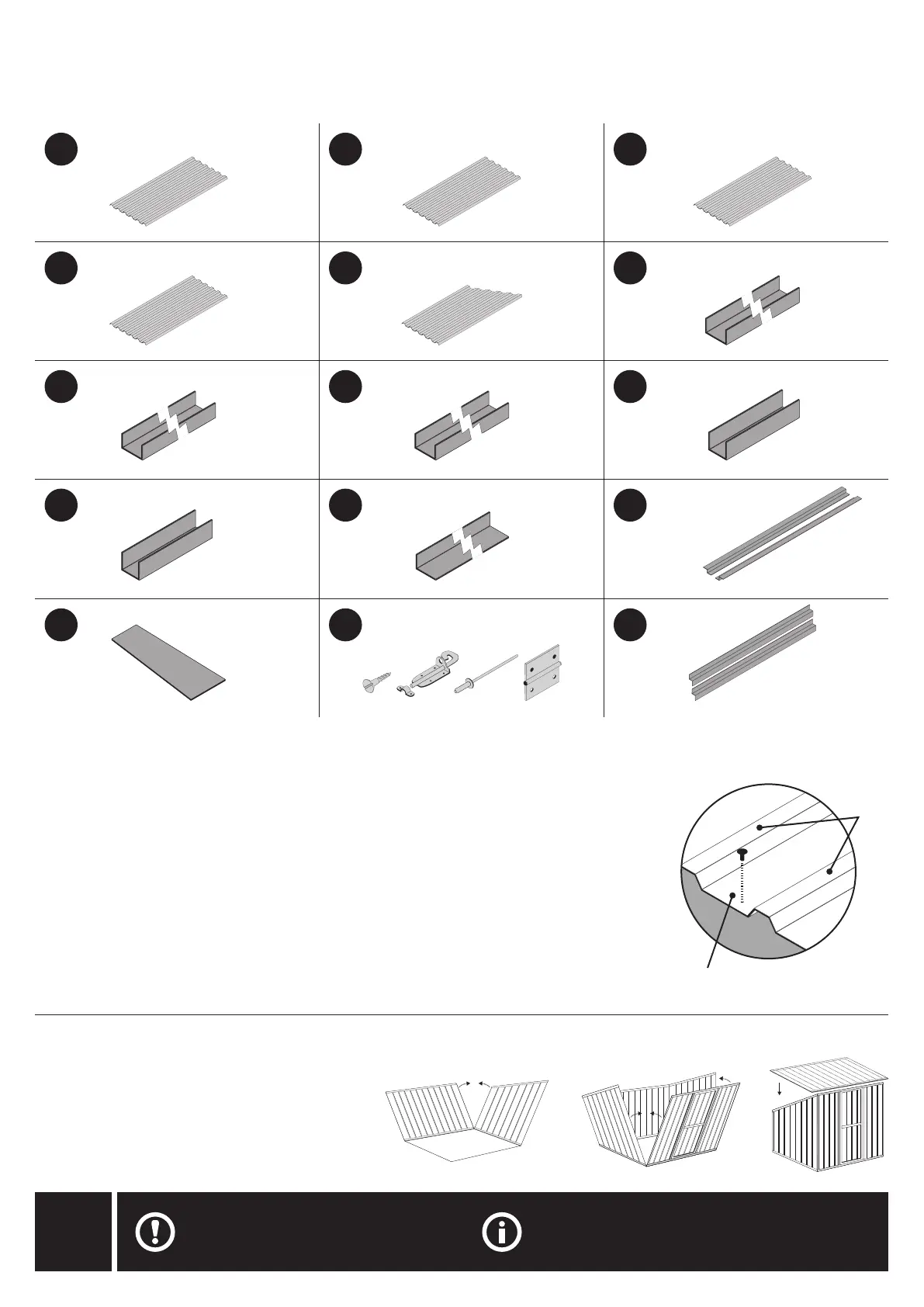

COMPONENTS CHECKLIST
Please check the parts carefully and advise immediately if any are damaged or missing.
B
E
H
N
K
C
F
I
O
L
A
D
G
M
J
1 x 1920 x 780mm door sheet 2 x 1980 x 740mm sheets
(Beside front door)
4 x 1980-1830mm sloping sheets
(2 left, 2 right)
2 x 1920mm 'U' channels for door sides
1 x pack screws with padbolt. 1 x pack
of fixings and hinges
2 x 1770mm 'L' flashings (roof
to side flashings)
3 x 1770mm x 780mm sheets for roof
4 x 1485mm 'U' channels for side walls
1 x 310mm door plate
2 x 780mm 'U' channels (door
top and bottom)
3 x 1830 x 780mm sheets for back wall
6 x 2255mm 'U' channels for
front, back and roof
2 x 793mm 'U' channels (door spacers)
Door bracing
BUILDING YOUR SHED
• The basic task is to join the sheets together to
form your panels, and fix channels to the top
and bottom of these panels. They will then join
together to form your shed (diagram 1, 2, and 3).
2 x 1980mm 'Z' door
jambs (front)
