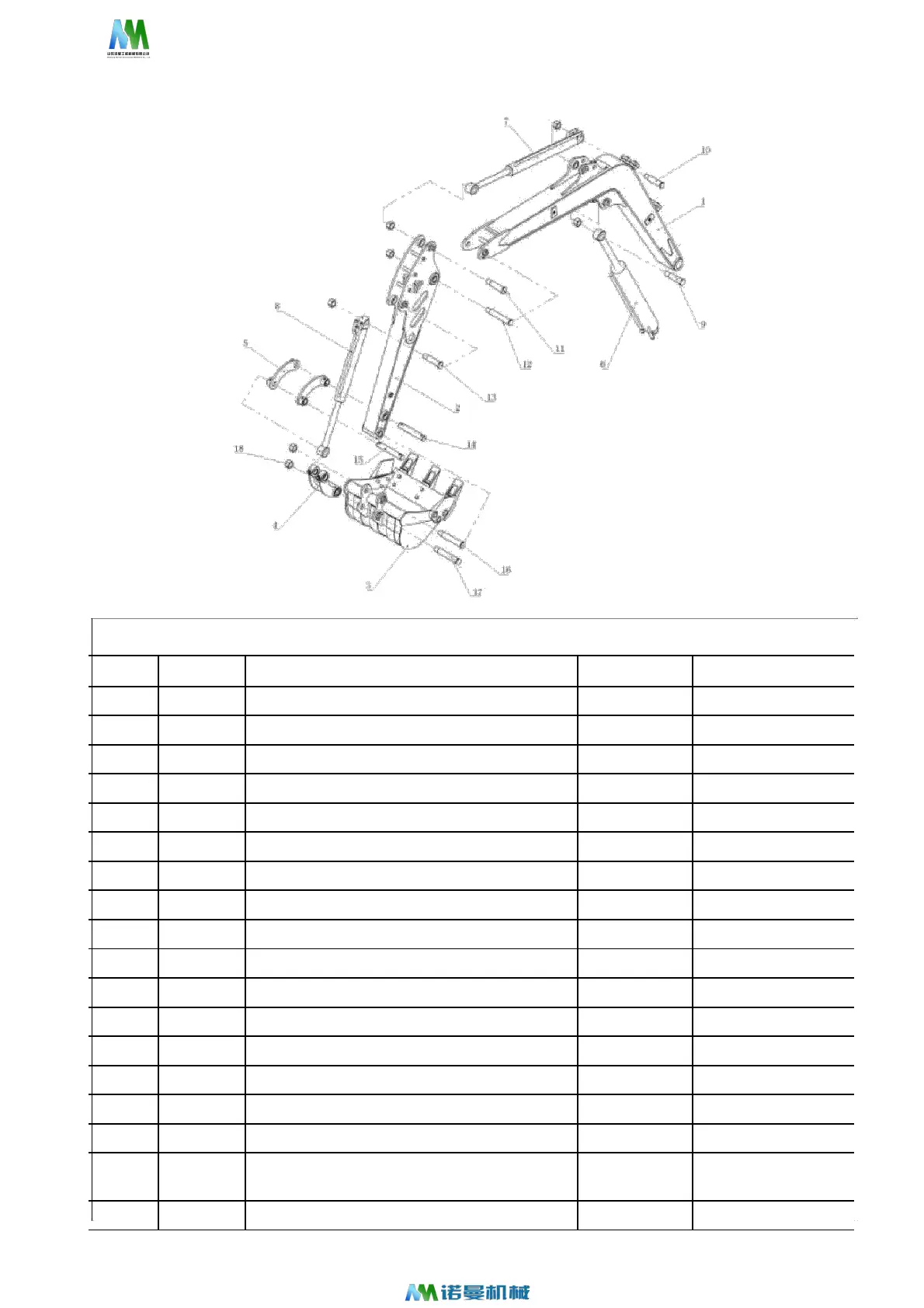

3. Front work equipment
S/N
Part No.
Part Name
Quantity
Remark
1
3.1
Boom
1
2
3.2
Arm
1
3
3.3
Bucket
1
4
3.4
Connecting rod
1
5
3.5
Push rod
1
6
3.6
Boom cylinder
1
7
3.7
Arm cylinder
1
8
3.8
Bucket cylinder
1
9
3.9
Medium shaft of boom
1
10
3.10
Rear shaft of arm cylinder
1
11
3.11
Front shaft of arm cylinder
1
12
3.12
Front shaft of boom
1
13
3.13
Rear shaft of bucket cylinder
1
14
3.14
Medium shaft of arm
1
15
3.15
Front shaft of bucket cylinder
1
16
3.16
Front shaft of arm
1
17
3.17
Connecting shaft between bucket and
1
connecting rod
18
3.18
Shaft locker sleeve
7
