NuPrime CDT-9 - Rear Panel Connectivity; Audio Output Ports; HDMI I2 S Pinout Definition

09

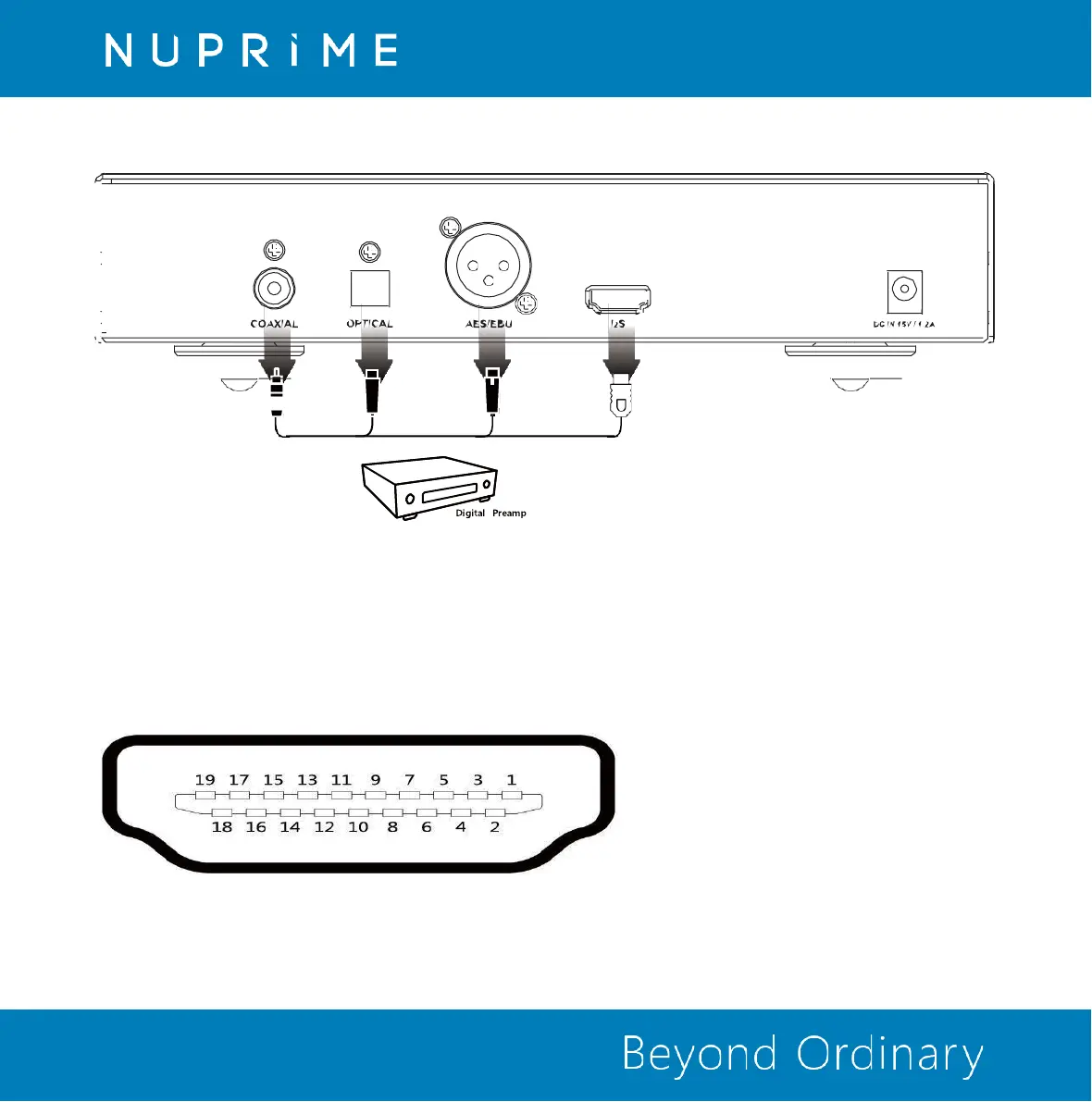

Rear Panel View:
Outputs:
1. Coaxial Output
2. Optical Output
3. AES / EBU Balance Output
4. HDMI I2S Output
I2S PIN Define:
PIN 1: I2S_DATA-
PIN 2: GND
PIN 3: I2S_DATA+
PIN 4: I2S_BCK+
PIN 5: GND
PIN 6: I2S_BCK-
PIN 7: I2S_LRCK-
PIN 8: GND
PIN 9: I2S_LRCK+
PIN 10: I2S_MCK+
PIN 11: GND
PIN 12: I2S_MCK-
PIN 13: NC
PIN 14: DSD ON
PIN 15: NC
PIN 16: NC
PIN 17: GND
PIN 18: NC
PIN 19: NC
