21. Using UNI-LUG and Motorcycle adaptor on QuickSpan
1987009W8JA

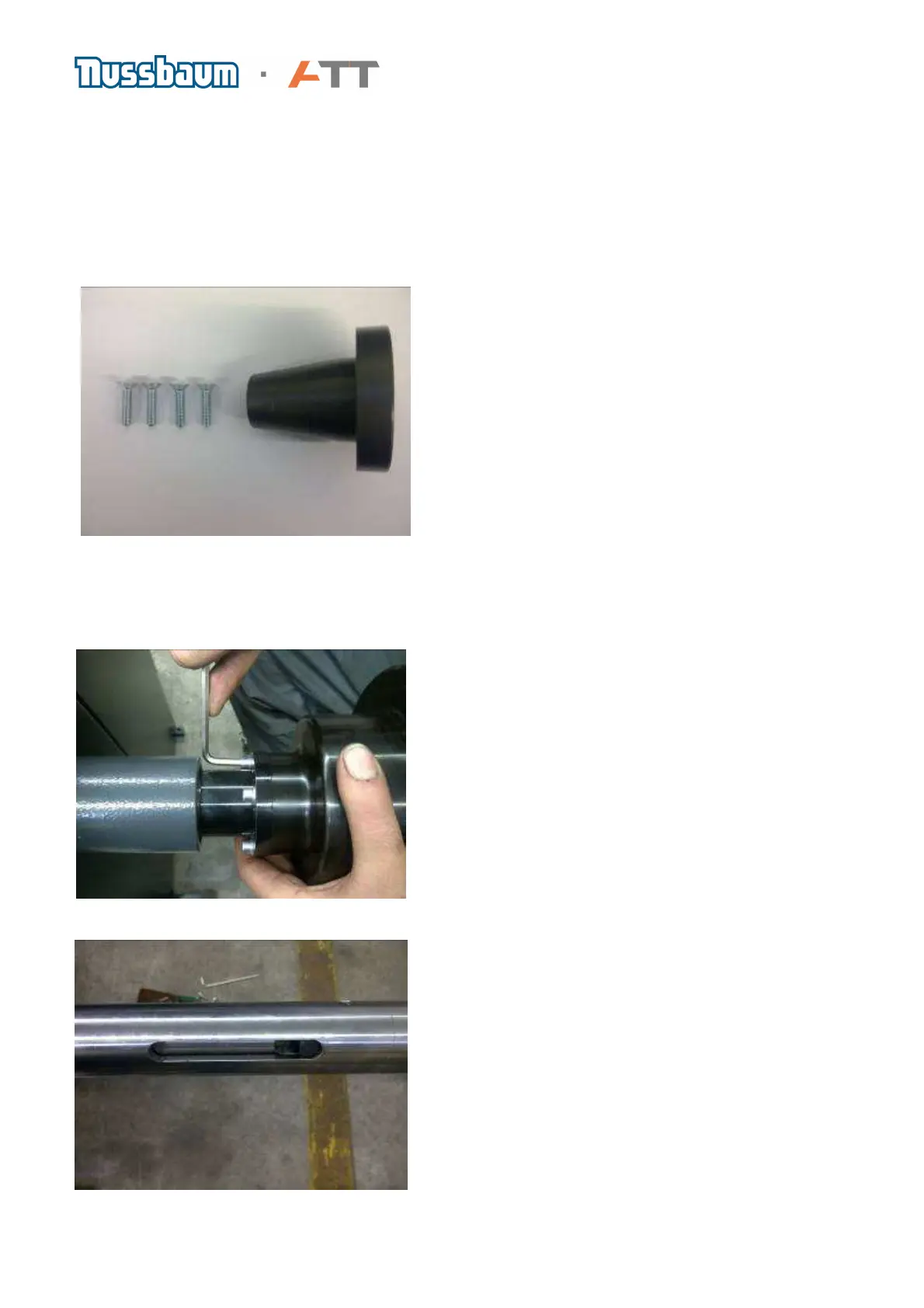

Adapter kit to mount motorcycle adaptor and Universal flange to QuickSpan wheel balancers
1 adaptor
4 tapered screws M 6 x 25 to pre centre the cone
adaptor and the flange
MOUNTING INSTRUCTIONS
Remove the 4 screws holding the flange
When all screws have been removed open the
QuickSpan via the foot pedal
