NuTone 769RL User Manual

CURRENT
ORIGINAL
REPLACEMENT
REF.
PART NO.
PART DESCRIPTION MODEL USED ON
PART NO.
1 0503B POWER UNIT ASSEMBLY 0503B-000
504B 504B 0504B-000
2 89914 99111002
8739 82403-000
3 89765 REFLECTOR & LAMPHOLDER ASSY 1019B-000
4 30652 DUCT ADAPTER ASSEMBLY 101183-000
5 85316 GRILLE 1100802
6 89108 LENS 99111381
7 16133 ACORN NUT 99260575
8 61326 FAN RECEPTACLE 99271654
9 82304 LIGHT RECEPTACLE 99270981
10 1022B STUD & NUT ASSY 1022B-000
NOTE: Always order by
current part number
Broan-NuTone LLC
Hartford, Wisconsin
www.nutone.com
888-336-3948

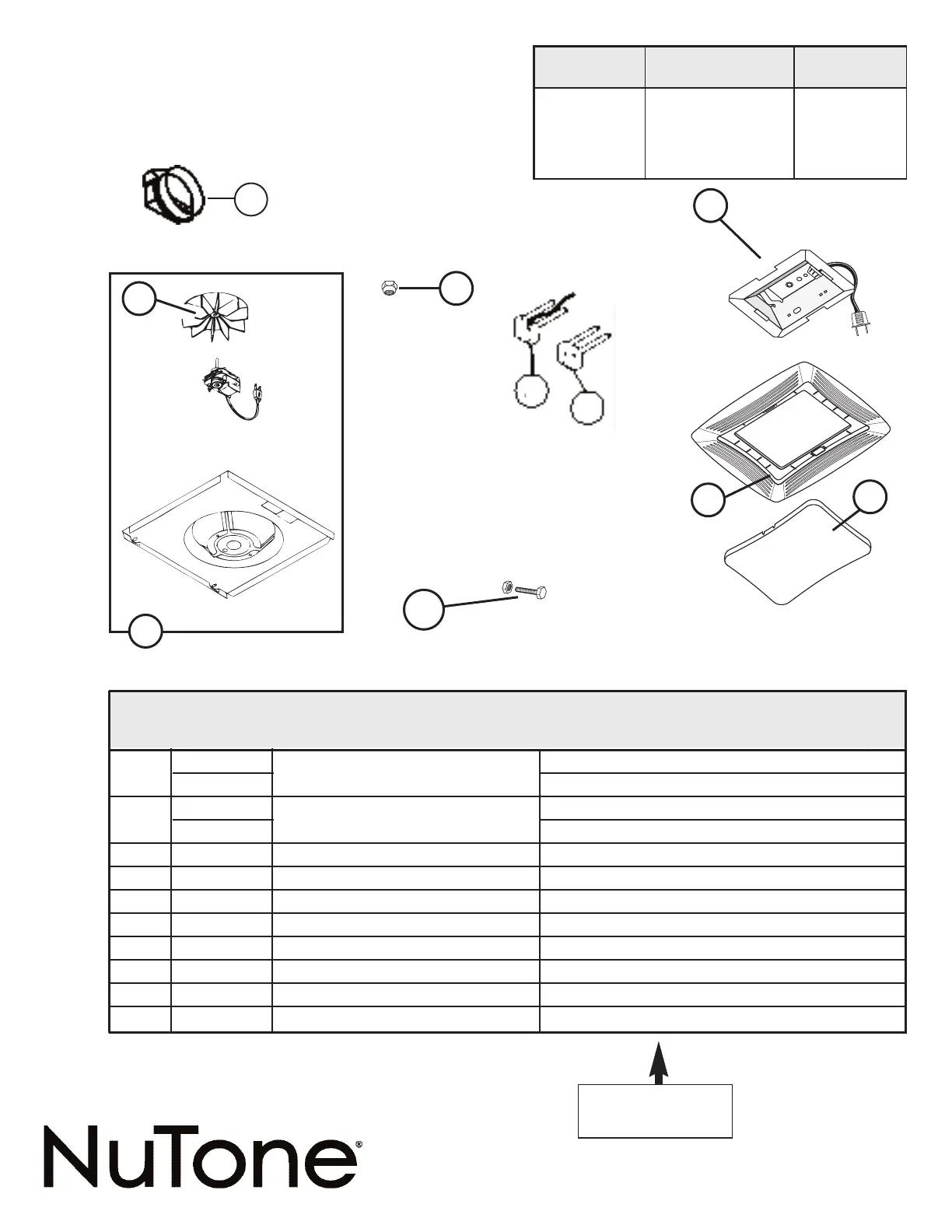

POWER UNIT ASSEMBLY
BLOWER WHEEL
1
2
769RL
Rev.
May
2013
R02
FAN
EFFECTIVE
DATE
PRODUCT
GROUP
MODEL NUMBER
9
PARTS LIST
8
3
4
5
3
6
1
2
6
7
CURRENT
ORIGINAL
REPLACEMENT
REF.
PART NO.
PART DESCRIPTION
PART NO.
10
Product specifications subject to change without notice.
Printed in China., Part No. 101256000H

NuTone 769RL Specifications

General

Air Flow Capacity	70 CFM
Light	No
Duct Diameter	4 inches
Voltage	120V
Model	769RL
Housing Dimensions	7.625 x 7.25 x 5.75 inches
