NuTone 8663RP User Manual

12
14
11
12
13
9
17
6
7
15
16
8663RP
PARTS SHOWN
4
5
1
3
10
8
2

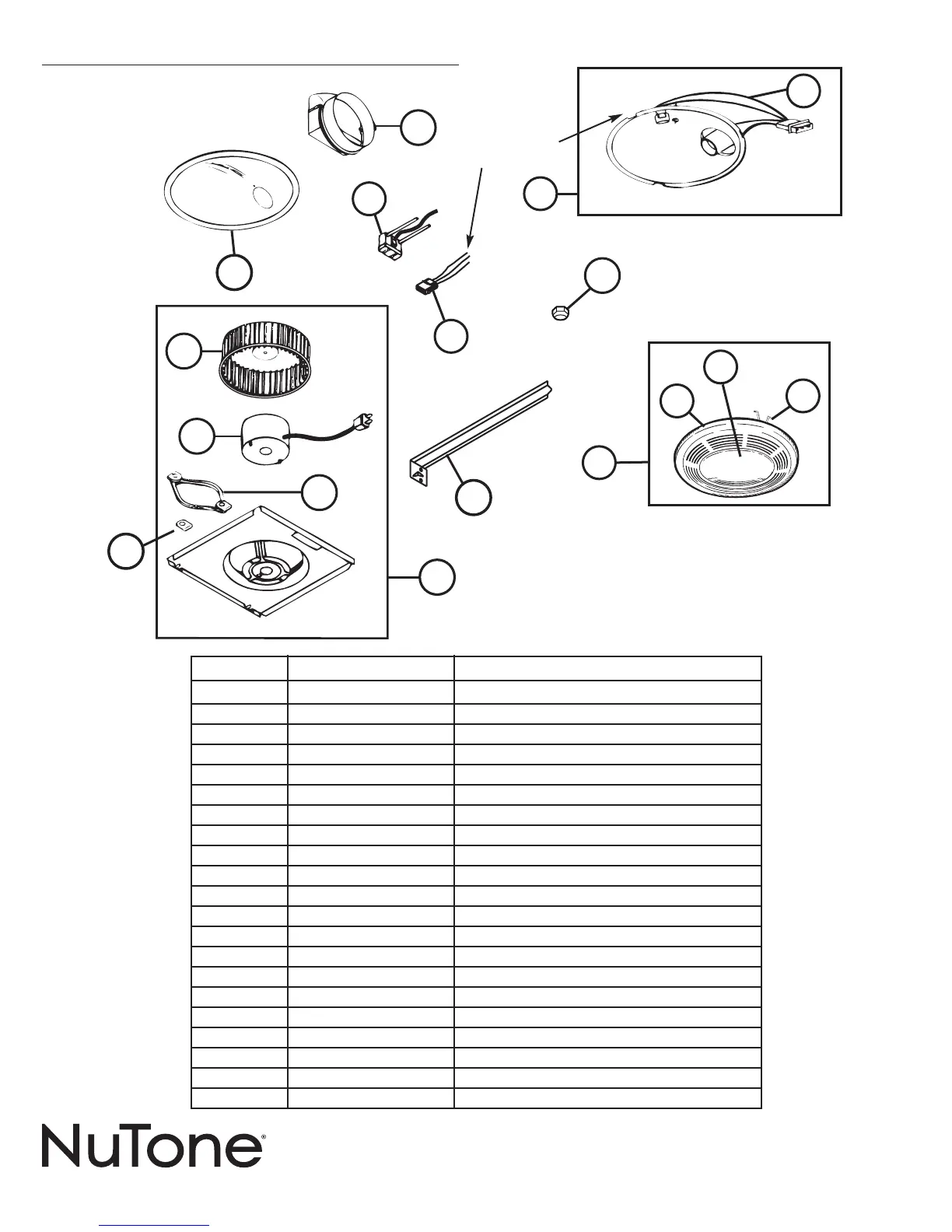

SERVICE PARTS
ModelS 8663RP & 8664RP
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
KEY NO. PART NUMBER DESCRIPTION
1 97017705 Power Unit Assembly (8663RP)
1 97017706 Power Unit Assembly (8664RP)
2 100599000 Motor
3 32787000 Motor Isolation Mount
4 32788000 Ground Clip
5 100603000 Blower Wheel
 6 85974000 ReectorAssembly(8663RP)
 6 86000000 ReectorAssembly(8664RP)
7 85950000 Lamp Socket Assembly (8663RP)
7 85979000 Lamp Socket (8664RP)
8 30652000 Duct Adapter Assembly
9 44388000 Hanger Bar (1)
10 97017702 Grille Assembly
11 99111406 Grille
12 61753000 Lens
13 0444A000 Grille Spring Set
14 99260575 Acorn Nut
15 99270982 Fan Receptacle
16 36892000 Light Receptacle (8663RP)
16 99270981 Light Receptacle (8664RP)
 17 101049000 Reector

NuTone 8663RP Specifications

General

Brand	NuTone
Model	8663RP
Voltage	120 V
Housing Material	Galvanized Steel
Filter Type	Aluminum
