NuTone 9412D User Manual

8
99045029A
25
25
17
17
3
9412D-R01 9417DN-R01 9422P-R01 9427P-R01
REF. PART NO. PART NO. PART NO. PART NO. DESCRIPTION
1 97010319 97010319 97010320 97010320 Grille Assembly (Includes Ref. No. 2)
2 06170-00 06170-00 06170-00 06170-00 Grille Spring (2 Req.)
3 - - - - 97010254 97009724 97010254 Motor
4 - - - - 98007352 98007426 98007352 Motor Mounting Bracket
5 99770034 99770034 99770034 99770034 Bulb Holder
6 - - - - - - - - 99770037 99770037 Bulb Holder
7 - - - - 99260423 99260423 99260423 Nut, #8-32 (2 Req.)*
8 - - - - 99160360 99160360 99160360 Screw, #8-32 x 1/2 (2 Req.)*
9 99150545 99150545 99150545 99150545 Sheet Metal Screw #8-18 x 3/8 (5 Req.) (7 Req. – 9412D-R01)*
10 99150546 99150546 99150546 99150546 Ground Screw #8-18 x 3/8
11 - - - - 97010255 - - - - 97010255 Blower Wheel
12 - - - - - - - - 97009762 - - - - Fan Blade
13 97009475 97009476 97009477 97009478 Housing (Includes Ref. Nos. 9 & 23)
14 - - - - 97009595 - - - - 97009595 Damper/Duct Connector
15 25067-00 20050-09 20050-09 20050-09 Wiring Box Cover
16 99400026 99400026 99400026 99400026 Bushing (2 Req. – 9422P-R01 & 9427P-R01)
17 99270830 99270830 99270830 99270830 Wire Clip
19 - - - - 99270835 99270835 99270835 Receptacle
20 - - - - 99270832 - - - - 99270832 Thermostat (Fan)
21 98003036 98003036 98003036 98003036 Mounting Bracket (4 Req.)
22 98007763 98007763 98007763 98007763 Bracket Channel (2 Req.)
23 25064-00 25064-00 25064-00 25064-00 Wiring Box
24 99150564 99150564 99150564 99150564 Screw, #8-18 x ½*
25 - - - - 79270237 79270237 79270237 Thermostat (Lamps)
** - - - - - - - - 99270668 99270668 Crimp Connector (2 Req. – 9422P-R01) (3 Req. – 9427P-R01)

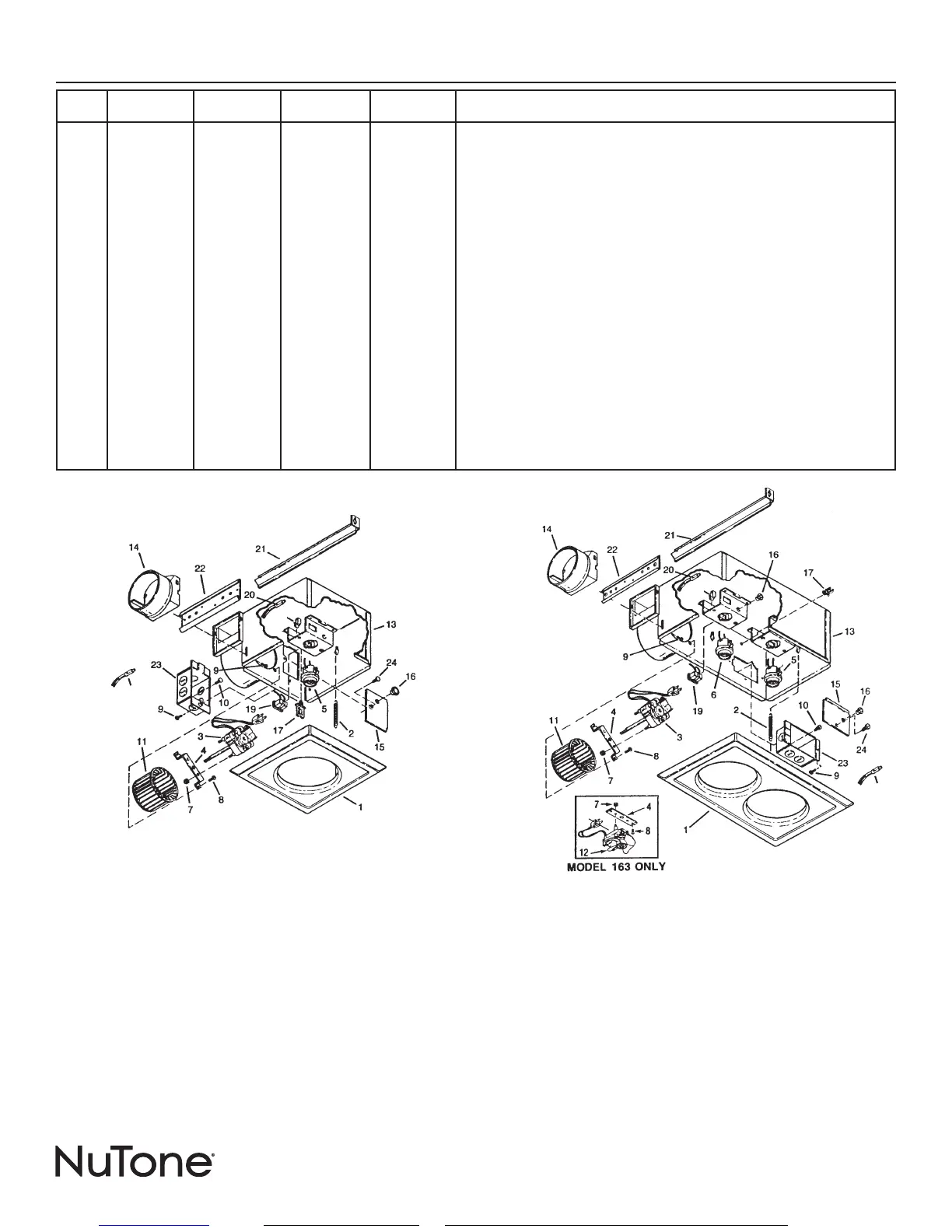

PARTS LIST
MODELS 9412D-R01 & 9417DN-R01 MODELS 9422P-R01 & 9427P-R01
