3. Exit Programming Mode if all programming is complete.

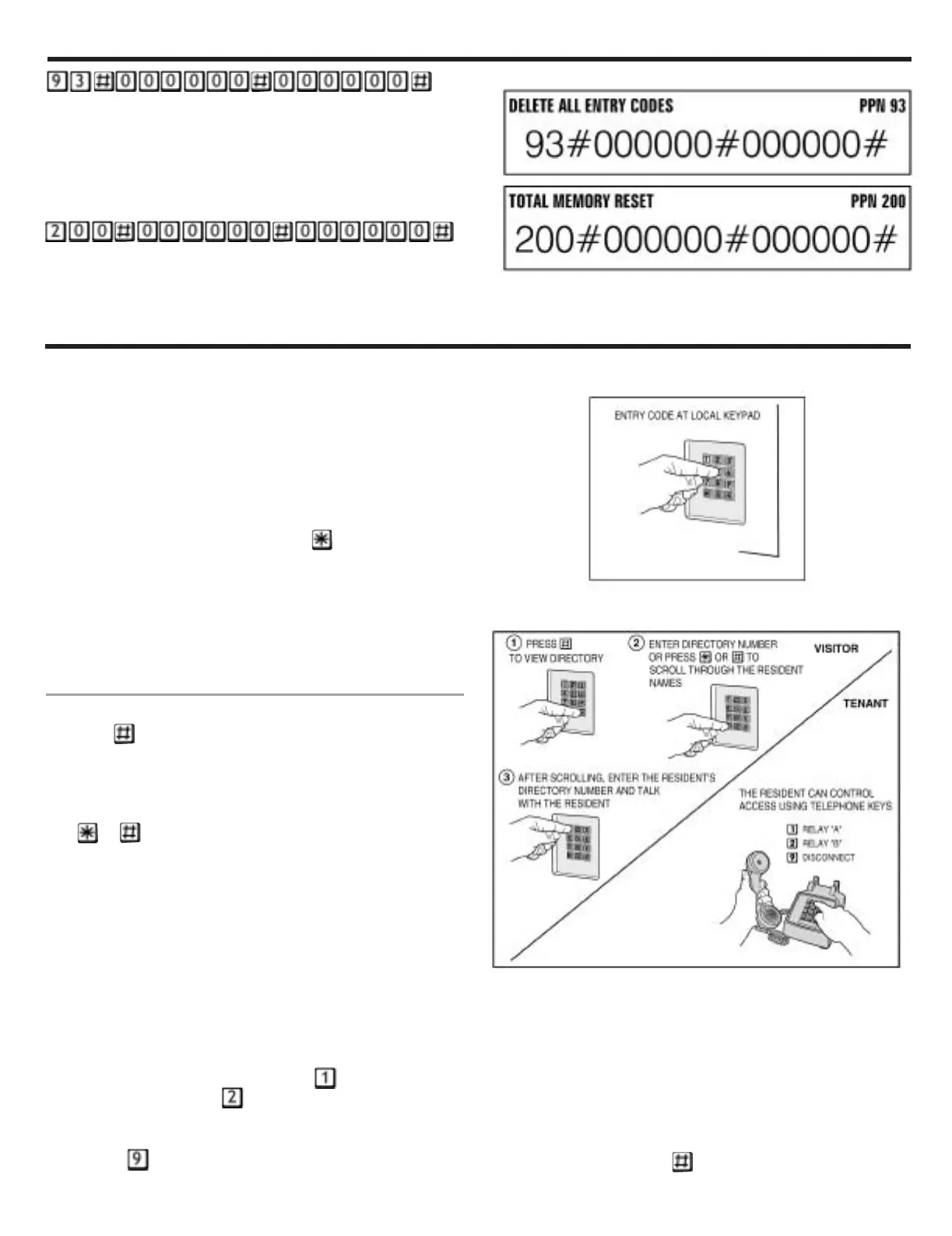

Total Memory Reset
This command will erase all data and restore the factory settings.
1. If not already in Programming Mode, use the local keypad to enter the
m
aster password and access programming.
2. Press:
3. Exit Programming Mode if all programming is complete.
11
AD-500 Operation
Requesting Access with an Entry Code
Residents/authorized personnel have up to 40 seconds to key in
their entry code.
Up to eight seconds are allowed between each keystroke.
All digits of the entry code must be entered. Example: If the entry
code length is set for four digits, and the code is 0042, the user
must enter “0 0 4 2”.
If the wrong key is pressed, pressing the key will reset the
keypad. The correct code can then be re-entered.
After a correct code is entered, and if the conditions for granting
access are fulfilled, the programmed relay channel will activate for
the programming time.
If the number of incorrect codes entered exceeds the keypad
lockout count, the keypad will be locked and not accept any
entries for one minute.
Requesting Access with a Visitor Call
Press to view the directory
If the visitor already knows the resident’s directory number, they
can enter the directory number to call the resident.
If the visitor doesn’t know the residents directory number, they
can scroll through the alphabetical directory entries by pressing
or (holding down the keys will scroll the display faster).
When the visitor finds the resident’s directory number, they enter
it on the keypad to call the resident.
The system dials the resident’s directory number to establish
2-way communications.
F
NOTE: The resident’s telephone number will never be displayed to
the visitor
.
If the resident is using the telephone at the same time a visitor
calls, the display will indicate to the visitor that the line is busy.
The resident answers the call and converses with the visitor to
determine if access will be granted.
The resident can use their telephone’s keypad to grant access
activating Relay Channel “A” by pressing , or activating Relay
Channel “B” by pressing . After access is granted, the system
will disconnect the visitor and resident call.
The resident can disconnect the visitor without granting access by
pressing or by hanging up.
F
NOTE: The telephone keys that the resident presses can be
customized for the installation. See T
elephone Key Assignments for
Residents (PPN #58) in the System Options section of these
instructions
.
The length of time the visitor is allowed to talk can be
programmed from 15-255 seconds. The resident will hear a series
of beeps during the last 10 seconds of talk time. To restart the talk
timer
, the resident can press on their telephone.
100921 AD500 Fac. Mgr. biling 1/14/06 11:05 AM Page 11
