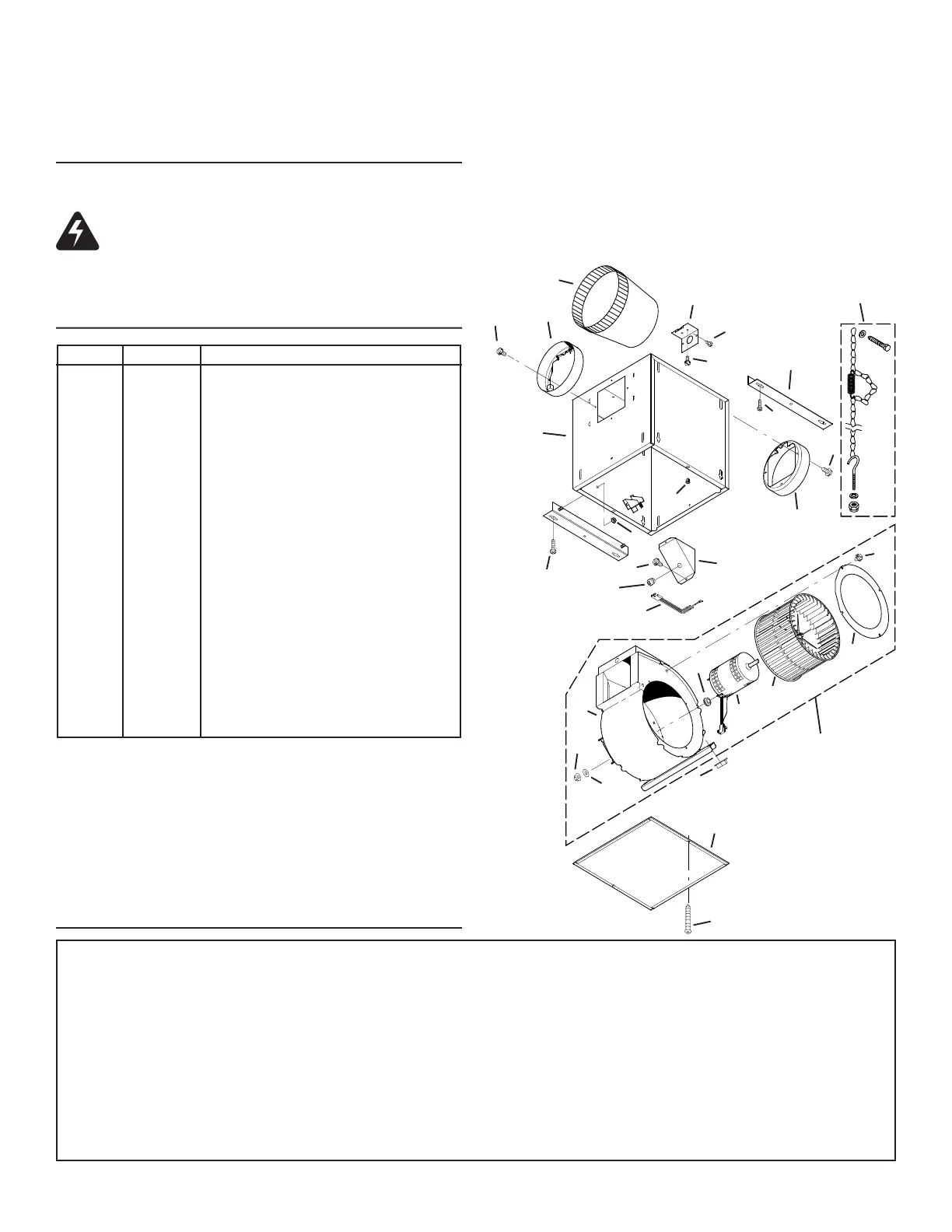

BLOWER
ASSEMBLY
23
24
SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014735 Housing Assembly
97014736 Housing Assembly
2 97014728 Mounting Bracket (2 req.)
3 97014761 Damper Assembly (8” dia.)
4 99390099 Duct Connector (8” dia.)
5 99150415 Screw, 8-18 x ¼ (12 req.)*
6 98005513 Wire Box Cover
7 99400035 Strain Relief Bushing
8 98005512 Wiring Plate
9 99150471 Ground Screw, 10-32 x ½ (2 req.)
10 97014775 Scroll Assembly
11 98009399 Inlet Ring
12 99020273 Blower Wheel
13 99080485 Motor
14 99260558 Lock Nut, 8-32 (4 req.)*
15 99250959 Washer (4 req.)*
16 99100491 Grommet (4 req.)
+ 97016792 Blower Assembly, Complete
(Includes Key Nos. 5 & 10-17)
17 99260477 Nut, ¼-20 (6 req.)*
18 97006039 Wire Harness
19 98009417 Access Panel
20 99420470 Cover Nut (2 req.)
21 99150472 Cover Mounting Screw (2 req.)
22 99150591 Screw, 10-16 x
7
/8 (4 req.)*
23 97016791 Hanger Kit
24 S414 Transition 8-10” Round
Order replacement parts by PART NO.
—not by KEY NO.
* Standard hardware
—may be purchased locally.
+ Not shown assembled.
99043698B
WARRANTY
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully remove
blower from housing. Use appropriate vacuum attachment or a
soft cloth and mild soap or detergent to clean blower discharge
area and wheel. DO NOT ALLOW WATER TO ENTER MOTOR.
Make sure blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one
year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge,
any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND
TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident,
improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions. The duration of an
implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so
the above limitation may not apply to you. BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from
state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address or phone number stated
below (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you
must present evidence of the original purchase date.
In the U.S., contact: Broan-NuTone, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
In Canada, contact Broan-NuTone Canada, 1140 Tristar Drive Mississauga, Ontario L5T 1H9 (1-888-882-7626)
