NuTone NS6500 Series User Manual

5

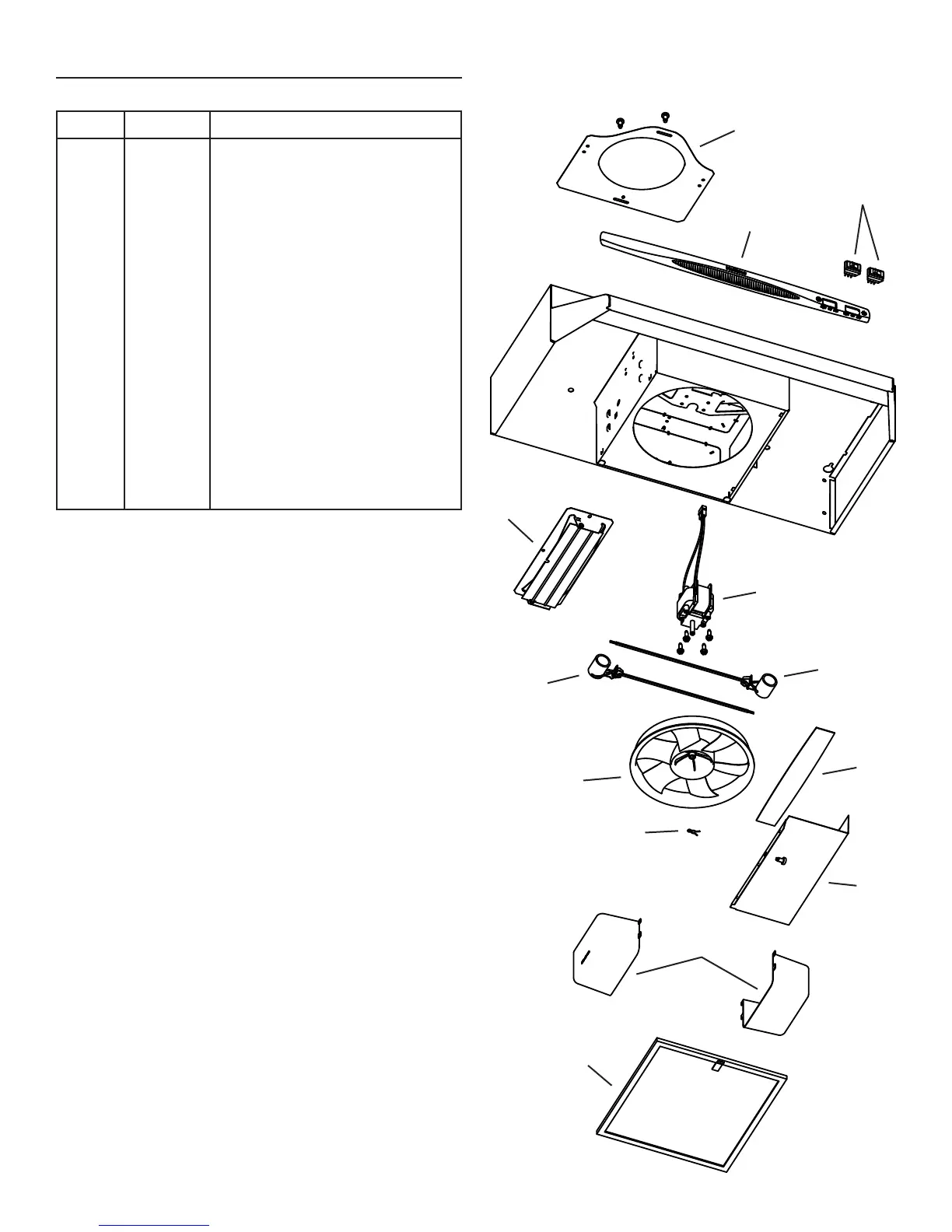

SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
 1 R680508 7-in.RoundDuctPlate
2 R561157 Fan or Light Switch, Black (2 req.)
R561159 Fan or Light Switch, White (2 req.)
R561163 Fan or Light Switch, Biscuit (2 req.)
3 R401653 Grille, Black
R401651 Grille, White
R401652 Grille, Biscuit
 4 R740014 3¼”x10”DamperAssembly
5 R520135 Motor
6 R566096 Lamp Socket Assembly (Short Wires)
7 R566097 Lamp Socket Assembly (Long Wires)
8 R531076 Fan Blade
 9 R607225 ExternalHitchPin(Hairpin)
 10 R401604 Bafe,Black
  R401603 Bafe,White
  R401606 Bafe,Biscuit
11 R680541 Wiring Cover
12 R401650 Light Lens
13 R610092 Aluminum Filter
 * 99010317 Non-DuctedFilter
(Purchase separately)
* R111675 Motor Wiring Assembly
* R111678 Light Wiring Assembly
* R111679 Power Wiring Assembly
OrderreplacementpartsbyPARTNO.-notbyKEYNO.
* Not illustrated
3
7
9
4
5
8
2
1
6
10
11
12
13
